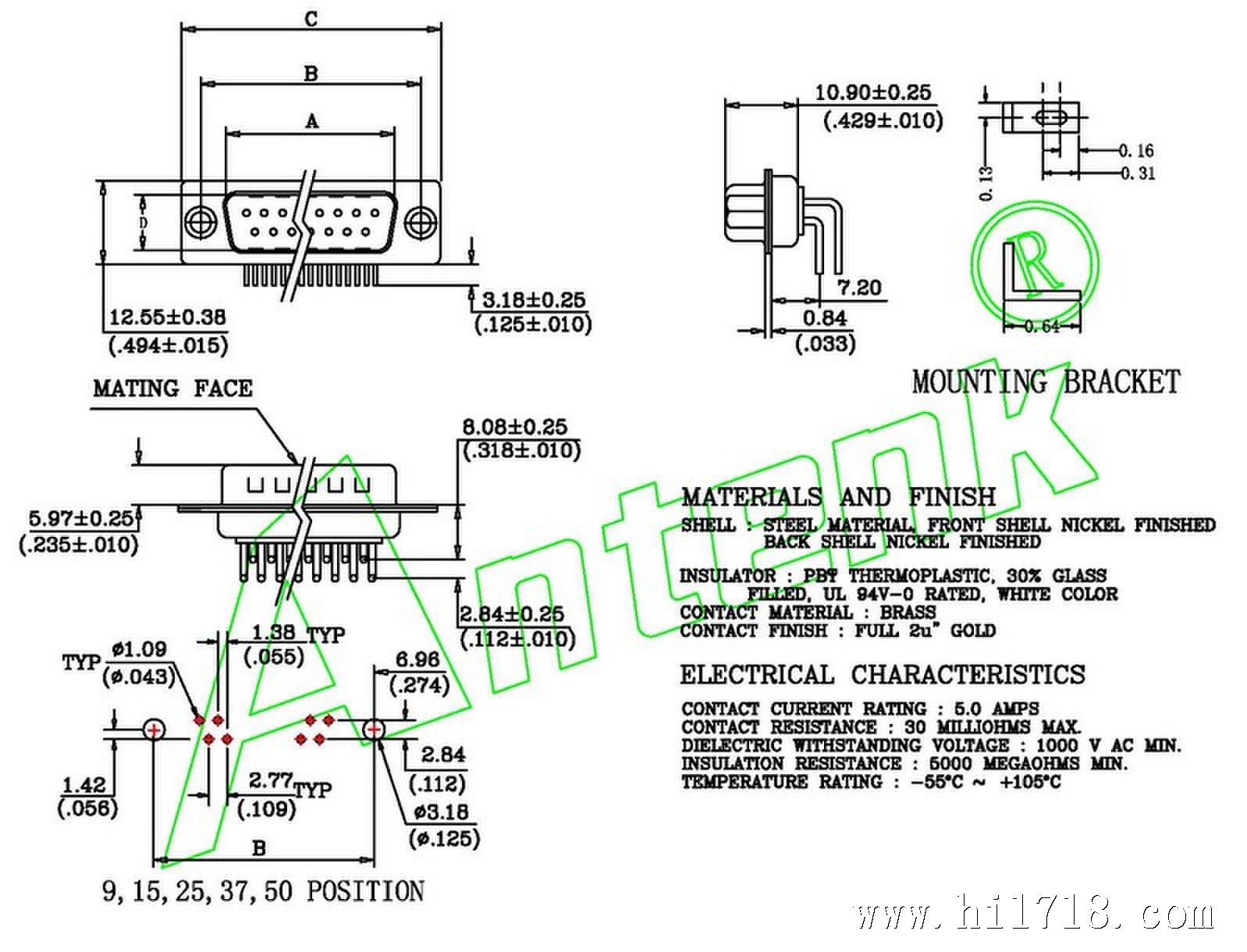

规格描述(Specification)
D-Sub 车PIN/公座/90°（DR）
Pin位：9P
D-Sub Male/90°（DR)
QTY of pin: 9P
材料((Matetrial)
胶体材质：PBT , thermoplastic +30%Gl
胶体颜色：黑色，灰色，白色，蓝色
insulation material:PA6T Polyester UL94V-0
Color of body :Black,gray,white,blue
电气特性(Electronical Specification)
额定电流：5AMPS
耐电压：1000Vr.m.s,1mA,60s
接触电阻：≤25mΩ
缘电阻：≥5000MΩ
Current Rating: 5.0 AMP
Voltage rating: 1000VAC/min
Contact resistance: 30mΩmax
Insulation resistance: 5000MΩmin
机械特性(mechanical characteristics )
工作温度：-55℃~+105℃
Working Temperature :-55℃~+105℃
产品均接受订单生产;起订量500/PCS；生产交期1-2周；量大可优惠；
The above products can be produced to accept orders; MOQ 500/PCS; production and delivery of 1 to 2 weeks; quantity discount;
具体产品图需求可以发邮件到中询盘；我们将在24小时之内给你回复；
The diagram needs of specific products can send an email to the inquiry in ; we will reply you within 24H;
国内聊天工具可以加QQ:1469730281
Domestic chat tool can add QQ:1
欢迎访问:www.antenk.com.cn
Welcome to visit the official website :www.antenk.com.cn
