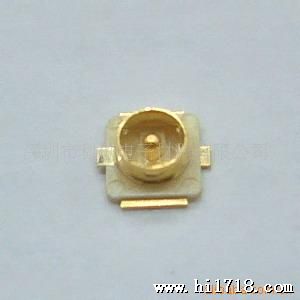

产品名称：I-PEX MHF 板端连接器

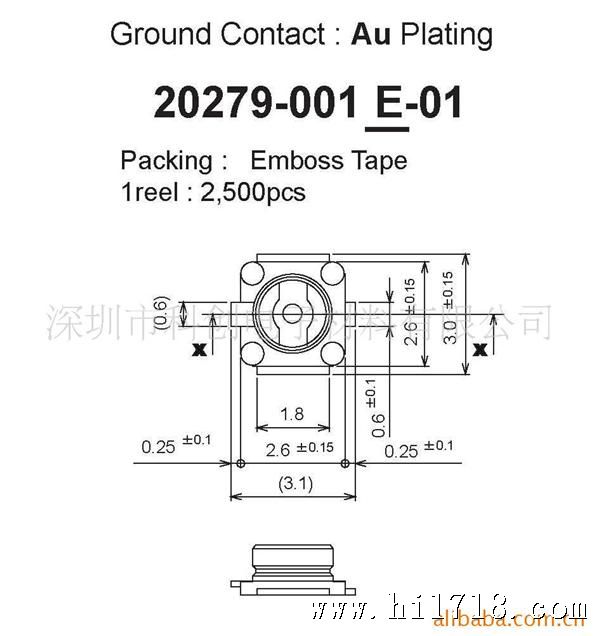

型号：20279-001E-01
Key Features:
1. SMT Receptacle and Mating Plug Cable Connector

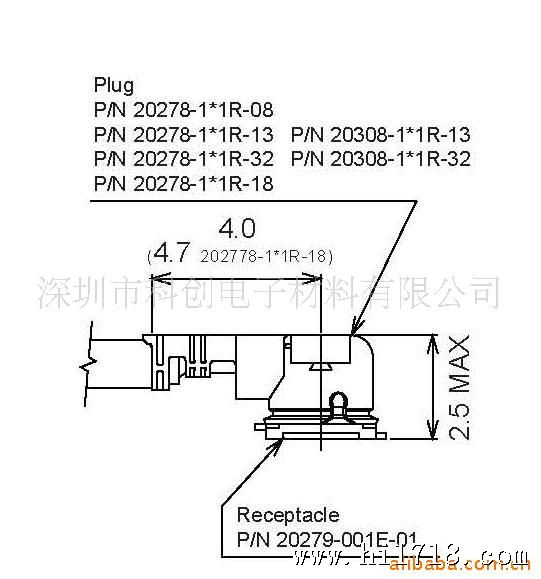

2. Small form factor and low profile : 1.5mm to 2.5mm MAX. Mating Height
3. Applicable Cable : O.D.0.8mm / 1.13mm / 1.32mm / 1.37mm and 1.8mm Coaxial Cable
4. High productivity : Easy Cable termination by “ i-Fit” without soldering
5. Applicable Technology : IEEE802.11 a/b/g/n, UWB, WiMAX, iBurst, Zigbee, Bluetooth Wireless and MIMO
Technical Specifications:
1. Frequency Range : DC up to 6GHz ( VSWR : 1.3MAX. )
2. Characteristic Impedance : 50 ohm ( Nominal )
3. Temperature : -40℃to +90℃
4. Rated Voltage : AC 60V
5. Contact Resistance : 20m ohm MAX. ( Signal ) and 10m ohm MAX. ( Ground )
6. Withstand Voltage : AC 200V
7. Insulation Resistance : 500M ohm MIN. / DC 100V
