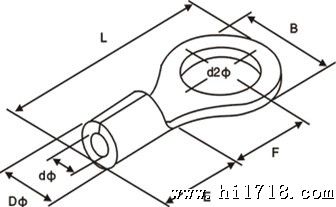

| ITEM . | USA SCREW&sp; | SCREW DIA d2(mm) | DIMENSION&sp; | |||||
| B | L | F | E | DΦ | dΦ | |||
| R1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RL1.25-3.5 | #6 | 3.7 | 8 | 15.8 | 7 | |||
| RS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RL1.25-4 | #8 | 4.3 | 8 | 15.8 | 7 | |||
| R1.25-5 | #10 | 5.3 | 8 | 15.8 | 7 | |||
| RL1.25-5 | #10 | 5.3 | 9.8 | 18 | 8.5 | |||
| RS1.25-6 | &sp;1/4 | 6.4 | 9.8 | 18 | 8.5 | |||
| R1.25-6 | &sp;1/4 | 6.4 | 11.6 | 21.8 | 11.1 | |||
| R1.25-8 | &sp; 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | |||
| R1.25-10 | &sp;3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| R1.25-12 | &sp;1/2 | 13 | 19.2 | 31 | 16.5 | |||
| CABLE&sp; SIZE :0.5-1.5mm² A.W.G.22-16 Imax：19A THICKNS:0.75mm | ||||||||
| ITEM . | USA SCREW&sp; | SCREW DIA d2(mm) | DIMENSION&sp; | |||||
| B | L | F | E | DΦ | dΦ | |||
| R2-3 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | |||
| RM2-3.5 | #6 | 3.7 | 6.6 | 16 | 7 | |||
| RL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
| RS2-4 | #8 | 4.3 | 6.5 | 14.3 | 6.2 | |||
| RL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
| RS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
| RL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
| R2-6 | &sp;1/4 | 6.4 | 12 | 21.8 | 11 | |||
| R2-8 | &sp; 5/16 | 8.4 | 12 | 21.8 | 11 | |||
| R2-10 | &sp;3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| R2-12 | &sp;1/2 | 13 | 19.2 | 31 | 16.5 | |||
| CABLE&sp; SIZE :1.5-2.5mm² A.W.G.16-14 Imax：27A THICKNS:0.8mm | ||||||||
联系人：张小姐&sp; 联系电话：&sp;&sp; 13968886735&sp;&sp;&sp; 传真：

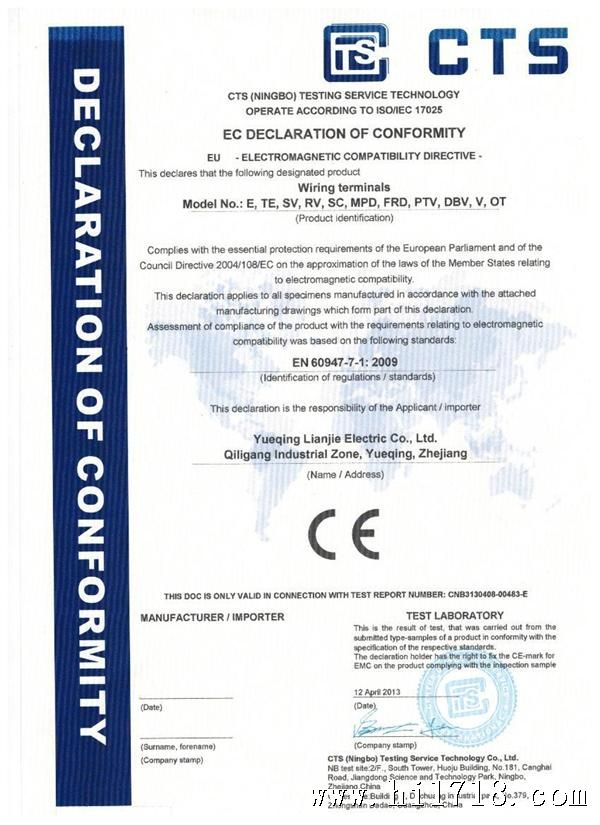

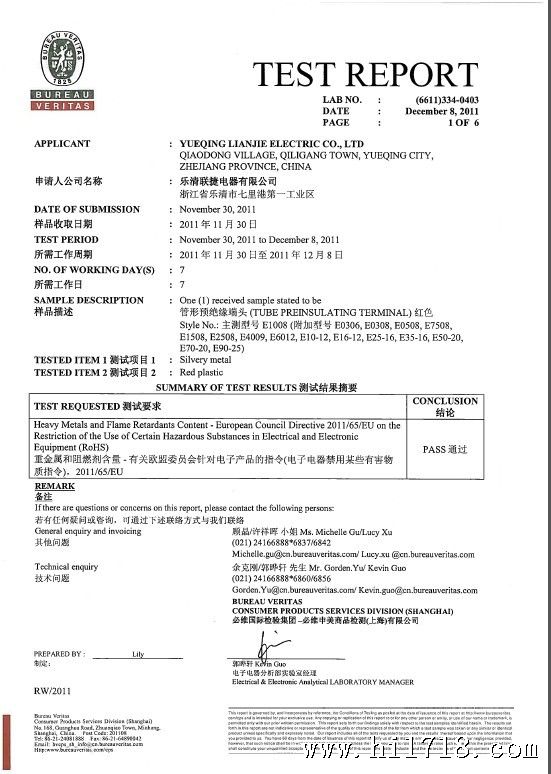

以下是我公司的证书和CE证书
