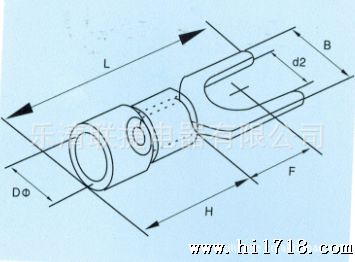

| ITEM . | USA SCREW | SCREW DIA d2(mm) | DIMENSION | COLOR | REMARK | ||||
| B | L | F | H | D | |||||
| SV 1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.3 | RED | CABIL SIZE:0.5-1.5mm² A.W.G.22V-16 MAX CURRENT=19A TICKNS:0.75mm |
| SVS 1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL 1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS 1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM 1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL 1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS 1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL 1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS 1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | ||||
| SVL 1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | ||||
| SV 2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.9 | BLUE | CABIL SIZE:1.5-2.5mm² A.W.G.16V-14 MAX CURRENT=27A TICKNS:0.8mm |
| SVS 2-3.5 | #6 | 3.2 | 5.7 | 21.2 | 6.5 | ||||
| SVL 2-3.5 | #6 | 3.7 | 6 | 21.2 | 6.5 | ||||
| SVS 2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM 2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL 2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS 2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL 2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS 2-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | ||||
| SVL 2-6 | 1/4 | 6.4 | 12 | 27.2 | 11 | ||||
| SV 3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7 | 13 | 6.2 | BLACK | CABIL SIZE:2.5-4mm² A.W.G.14V-12 MAX CURRENT=37A TICKNS:1.0mm |
| SV 3.5-4 | #8 | 4.3 | 8 | 24.8 | 7 | ||||
| SV 3.5-5 | #10 | 5.3 | 8 | 24.8 | 7 | ||||
| SV 3.5-6 | 1/4 | 6.4 | 12 | 28 | 12.1 | ||||
| SV 5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13 | 6.7 | YELLOW | CABIL SIZE:4-6mm² A.W.G.12V-10 MAX CURRENT=48A TICKNS:1.0mm |
| SVS 5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | ||||
| SVL 5.5-4 | #8 | 4.3 | 9 | 25.2 | 7.5 | ||||
| SV 5.5-5 | #10 | 5.3 | 9 | 25.2 | 7.5 | ||||
| SVS 5.5-6 | 1/4 | 6.4 | 9 | 25.2 | 7.5 | ||||
| SVL 5.5-6 | 1/4 | 6.4 | 12 | 31.2 | 12 | ||||
| SV 5.5-8 | 5/16 | 8.4 | 14 | 30 | 11.5 | ||||
联系人：张小姐
联系电话： 传真：

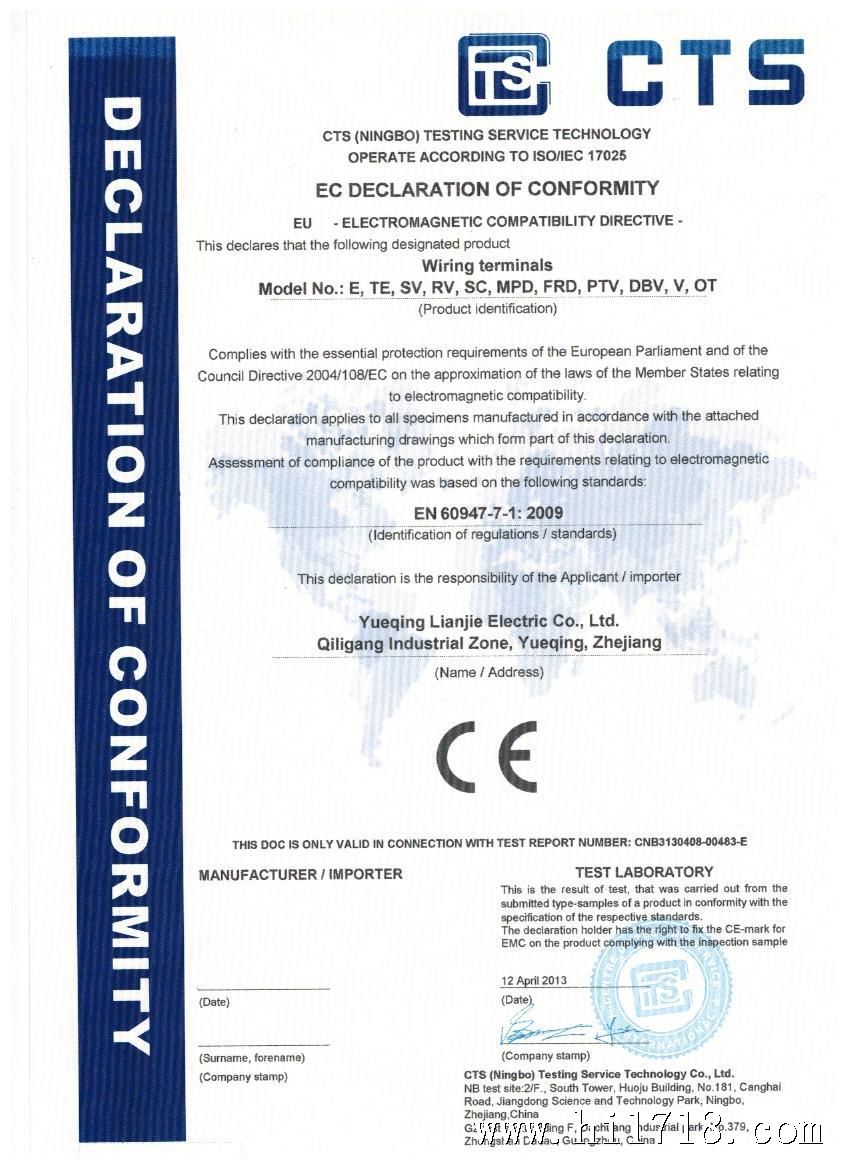

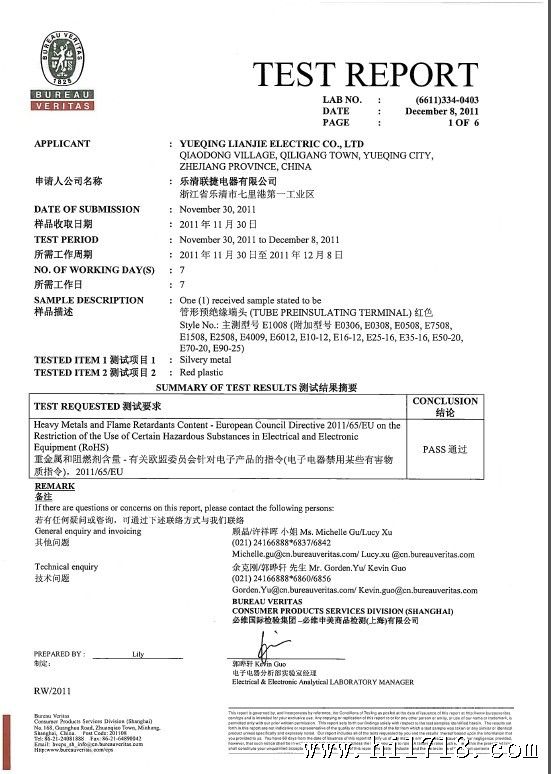

以下是我公司的证书和CE证书
