SSSF011700 SSSF012100 SSSF021500 SSSF040800
详细信息
| 产品编号 | SSSF011700 | |
| 行程 | 2mm | |
| 操作部方向 | Vertical | |
| 操作度 | 6mm | |
| 电路数 | 1 | |
| 接点数 | 2 | |

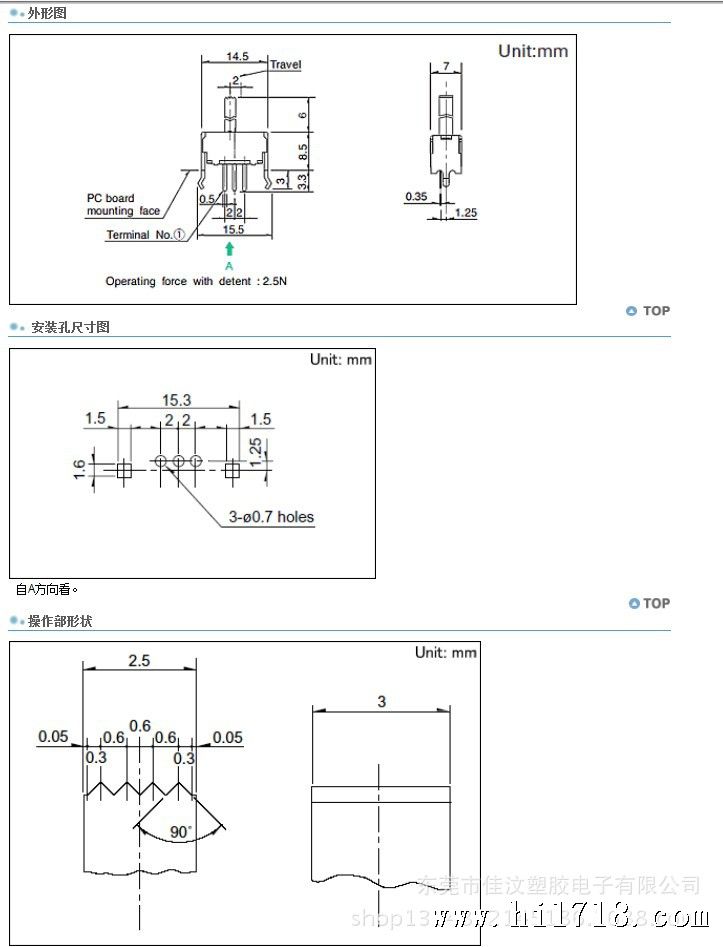

| 动作力 | 参阅外形图 | |
| 安装方法 | Snap-in (t1.6) | |
| 切换时限 | Non shorting | |
| 焊接方法 | Manual, Dip | |
| 使用温度范围 | -40℃ to +85℃ | ||
| 额定/小额定(电阻负载) | 0.1A 30V DC/10µA 1V DC | ||
| 电性能 | 接触电阻 (初期/寿命后) | 25mΩ max./65mΩ max. | |
| 缘电阻 | 100MΩ min. 500V DC | ||
| 耐电压 | 500V AC for 1 minute | ||
| 机械性能 | 端子强度 | 5N for 1 minute | |
| 操作部强度 | 操作方向 | 30N | |
| 拉引方向 | 30N, Static force | ||
| 耐久性能 | 负载 | 10,000 cycles 45mΩ max. | |
| 无负载(额定负载) | 10,000 cycles 65mΩ max. | ||
| 耐环境性能 | 耐寒性能 | -40&plun;2℃ for 500h | |
| 耐热性能 | 85&plun;2℃ for 500h | ||
| 耐湿性能 | 60&plun;2℃, 90 to 95%RH for 500h | ||
| SSSF011700 | 2mm | Vertical | 6mm | 1 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF012100 | 2mm | Vertical | 9mm | 1 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF014800 | 2mm | Vertical | 6mm | 1 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF021500 | 2mm | Vertical | 6mm | 2 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF021900 | 2mm | Vertical | 9mm | 2 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF024800 | 2mm | Vertical | 6mm | 2 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF025100 | 2mm | Vertical | 9mm | 2 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF040800 | 2mm | Vertical | 6mm | 4 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF111800 | 2mm | Horizontal | 6mm | 1 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF112500 | 2mm | Horizontal | 9mm | 1 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF114900 | 2mm | Horizontal | 6mm | 1 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF115300 | 2mm | Horizontal | 9mm | 1 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF121900 | 2mm | Horizontal | 6mm | 2 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF122400 | 2mm | Horizontal | 9mm | 2 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF125300 | 2mm | Horizontal | 6mm | 2 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF125800 | 2mm | Horizontal | 9mm | 2 | 3 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF141000 | 2mm | Horizontal | 6mm | 4 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSF141300 | 2mm | Horizontal | 9mm | 4 | 2 | 参阅外形图 | Snap-in (t1.6) | Non shorting | Manual, Dip |
| 小订货单位(pcs.) | 日本 | 100 |
| 出口 | 4,000 |
