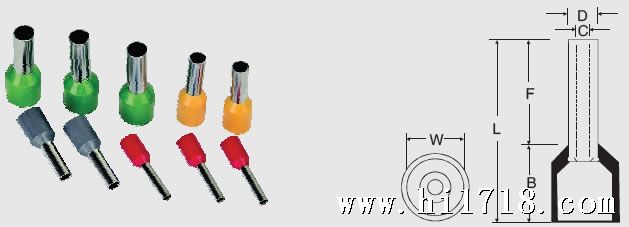

?管形预缘端头/ PRE-INSULATED CORD END TERMINAL
耐压(MAXIMUM COMPRSION RISTANCE):105℃ 300 VOLTS MAX.
端头材质：镀锡紫铜管/ THE MATERIAL OF THE TERMINAL:TINNING RED COPPER PIPE
缘套材质：尼龙/ INSULATING BUSHING:NYLON
※技术参数 / Technical parameter
| Electrical wire scope | TYPE | Diameter | Colour | The tool mode for imprsion and connection | ||||
| F | L | W | D | C | ||||
| mm | mm | mm | mm | mm | ||||
| 22 A.W.G 0.5mm2 | E0505 | 5.0 | 11.0 | 2.6 | 1.3 | 1.0 | White Orange | CEF-04WF Using the 0.5-caliber tongs |
| E0506 | 6.0 | 12.0 | ||||||
| E0508 | 8.0 | 14.0 | ||||||
| E0510 | 10.0 | 16.0 | ||||||
| E0512 | 12.0 | 18.0 | ||||||
| 20 A.W.G 0.75mm2 | E7506 | 6.0 | 12.3 | 2.8 | 1.5 | 1.2 | Blue White | CEF-04WF Using the 0.75-caliber tongs |
| E7508 | 8.0 | 14.6 | ||||||
| E7510 | 10.0 | 16.3 | ||||||
| E7512 | 12.0 | 18.3 | ||||||
| E7518 | 18.0 | 24.3 | ||||||
| 18 A.W.G 1.0mm2 | E1006 | 6.0 | 12.3 | 3.0 | 1.7 | 1.4 | Red Yellow | CEF-04WF Using the 1.0-caliber tongs |
| E1008 | 8.0 | 14.6 | ||||||
| E1010 | 10.0 | 16.3 | ||||||
| E1012 | 12.0 | 18.3 | ||||||
| E1018 | 18.0 | 24.3 | ||||||
| 16 A.W.G 1.5mm2 | E1508 | 8.0 | 14.6 | 3.5 | 2.0 | 1.7 | Black Red | CEF-04WF Using the 1.5-caliber tongs |
| E1510 | 10.0 | 16.3 | ||||||
| E1512 | 12.0 | 18.3 | ||||||
| E1515 | 15.0 | 21.3 | ||||||
| E1518 | 18.0 | 24.3 | ||||||
| 14 A.W.G 2.5mm2 | E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | Gray Green | CEF-04WF Using the 2.5-caliber tongs |
| E2510 | 10.0 | 17.2 | ||||||
| E2512 | 12.0 | 19.2 | ||||||
| E2518 | 18.0 | 25.2 | ||||||
| E2525 | 25.0 | 32.4 | ||||||
| 12 A.W.G 4.0mm2 | E4009 | 9.0 | 16.4 | 4.4 | 3.2 | 2.8 | Orange Gray | CEF-04WF Using the 4.0-caliber tongs |
| E4010 | 10.0 | 17.4 | ||||||
| E4012 | 12.0 | 19.4 | ||||||
| E4018 | 18.0 | 25.4 | ||||||
| Electrical wire scope | TYPE | Diameter | Colour | The tool mode for imprsion and connection | ||||
| F | L | W | D | C | ||||
| mm | mm | mm | mm | mm | ||||
| 10 A.W.G 6.0mm2 | E6012 | 12.0 | 20 | 6.3 | 3.9 | 3.5 | Green Black | CEF-16WF Using the 6.0-caliber tongs |
| E6018 | 18.0 | 26 | ||||||
| 8 A.W.G 10mm2 | E10-12 | 12.0 | 21.5 | 7.6 | 4.9 | 4.5 | Palm Ivory | CEF-16WF Using the 10-caliber tongs |
| E10-18 | 18.0 | 27.5 | ||||||
| 6 A.W.G 16mm2 | E16-12 | 12.0 | 22.2 | 8.8 | 6.2 | 5.8 | Ivory Green | CEF-16WF Using the 16-caliber tongs |
| E16-18 | 18.0 | 28.2 | ||||||
| 4 A.W.G 25mm2 | E25-12 | 12.0 | 24.0 | 11.2 | 7.9 | 7.5 | Black Palm | KST2000N Using the 25-caliber tongs |
| E25-15 | 15.0 | 27.0 | ||||||
| E25-16 | 16.0 | 29.0 | ||||||
| E25-18 | 18.0 | 30.0 | ||||||
| E25-22 | 22.0 | 35.0 | ||||||
| 2 A.W.G 35mm2 | E35-16 | 16.0 | 30.0 | 12.7 | 8.7 | 8.3 | Red Ivory | KST2000N Using the 35-caliber tongs |
| E35-18 | 18.0 | 32.0 | ||||||
| E35-22 | 22.0 | 36.0 | ||||||
| E35-25 | 25.0 | 39.0 | ||||||
| 1/0 A.W.G 50mm2 | E50-12 | 12.0 | 28.0 | 15.3 | 10.9 | 10.3 | Blue Green | KST2000N Using the 50-caliber tongs |
| E50-20 | 20.0 | 36.0 | ||||||
| E50-25 | 25.0 | 41.0 | ||||||
| 2/0 A.W.G 70mm2 | E70-20 | 20.0 | 37.0 | 16.0 | 14.3 | 13.5 | Yellow Yellow | |
| 70-25 | 25.0 | 42.0 | ||||||
| E70-27 | 27.0 | 44.0 | ||||||
| 3/0 A.W.G 95mm2 | E95-25 | 25.0 | 44.0 | 18.5 | 15.3 | 14.5 | Red Red | |
| 4/0 A.W.G 120mm2 | E120-27 | 27.0 | 47.6 | 20.3 | 17.5 | 16.5 | Blue Blue | |
| E120-32 | 32.0 | 52.6 | ||||||
| 250/300 MCM A.W.G 150mm2 | E150-25 | 25.0 | 50.6 | 23.4 | 20.6 | 19.6 | Yellow Yellow | |
| E150-27 | 27.0 | 52.6 | ||||||
| E150-32 | 32.0 | 57.6 | ||||||
