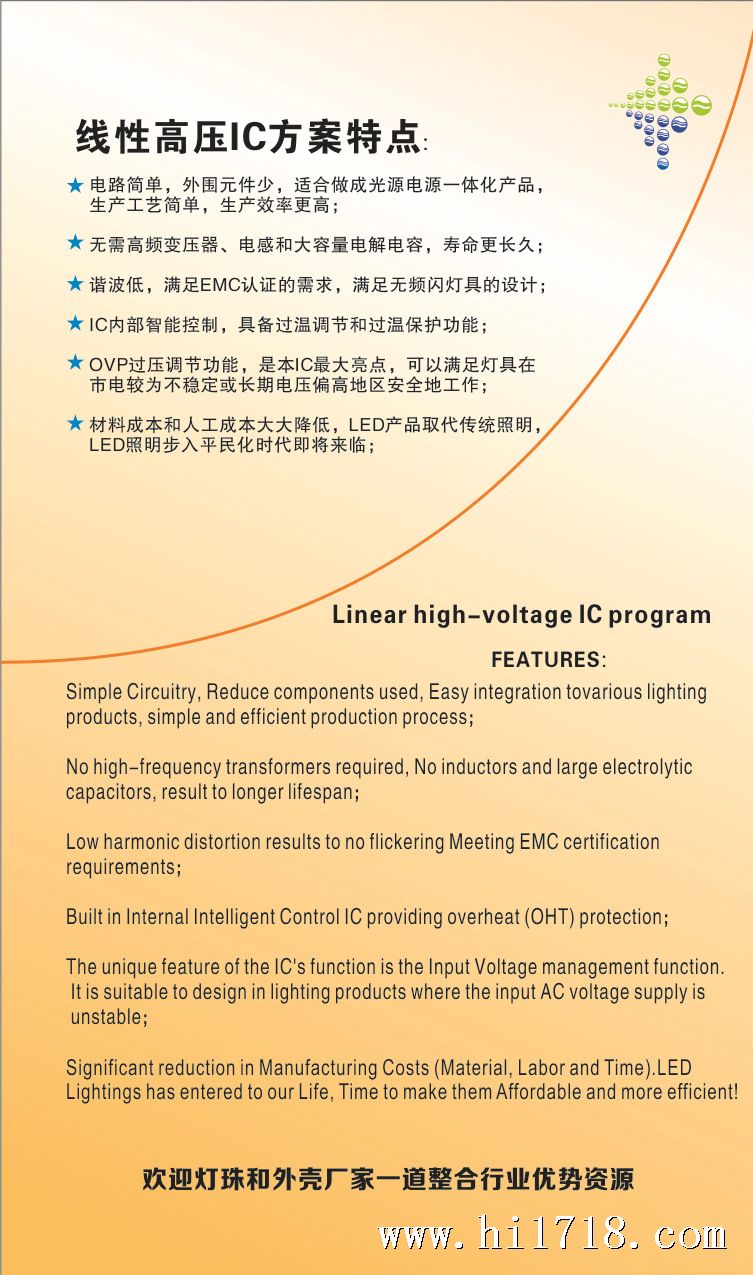

线性高压IC方案特点:Linearhigh-voltage ICprogramFeatures:
**电路简单,外围元件少,适合做成光源电源一体化产品,生产工艺简单,生产效率更高;
**Simple Circuitry, Reduce components used, Easy integration to various lighting products,simple and efficient productionprocess;
**无需高频变压器、电感和大容量电解电容,寿命更;
**high-frequencytransformers required, inductorsand largeelectrolytic capacitors, result to longer lifespan;
**谐波低,满足EMC的需求,满足无频闪灯具的设计;
**Lowharmonic distortion results to flickeringMeetingEMC certificationrequirements;
**IC内部智能控制,具备过温调节和过温保护功能;
**Built in InternalIntelligent Control ICproviding overheat(OHT) protection;
**OVP过压调节功能,是本IC亮点,可以满足灯具在市电较为不稳定或长期电压偏高地区地工作;
**Theunique feature of theIC's function is the InputVoltage management function. It is suitable to design inlighting products where theinput ACvoltage supplyis unstable;
**材料成本和人工成本大大降低,LED产品取代传统照明,LED照明步入平民化时代即将来临;
**Significant reduction in Manufacturing Costs (Material, Labor and Time).LED Lightings has entered to our Life, Time to make them Affordable and more efficient!

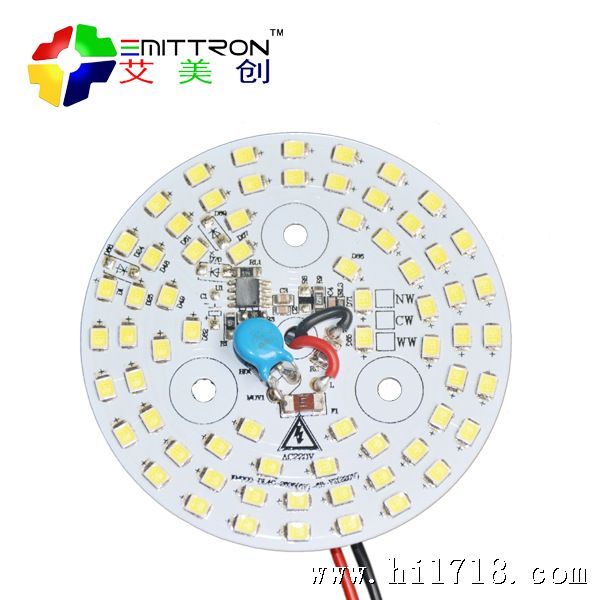

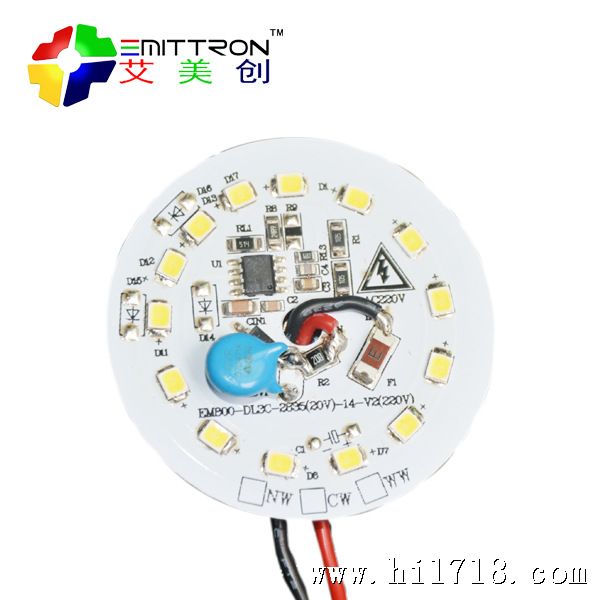

线性IC LED筒灯光引擎产品技术参数:
常规型号 MODEL. | EM800-DL3C 2835(20V)-14-V2 | EM800-DL4C 2835(6V)-68-V2 | EM800-DL6C 2835(6V)-88-V2 | EM800-DL8C 2835(6V)-112-V2 |
工作电压 InputVolt | AC190-250V | |||
额定功率 Rated Power | 7W | 10W | 15W | 20W |
功率因素 Power Factor | 0.95 | |||
LED规格 LED Te | SMD2835 HV | SMD2835 | ||
LED颗数 LEDQuantity | 14pcs | 68pcs | 88pcs | 112pcs |
光通亮 Lumius flux | 550lm | 1000lm | 1400lm | 1900lm |
角 度 Beam angle | 140° | |||
外型尺寸 Dimension | F45mm*1.2mm | F70mm*1.2mm | F95*1.2mm | F130*1.2mm |
新茂科技(深圳)有限公司
www.seamount.cn
