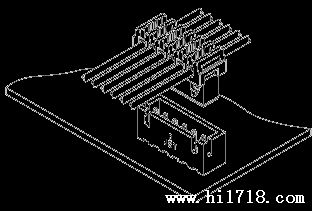

The NRD connector allows 'daisy chain connections' or 'through connections'. With these simple connections, many signals can be bussed to many different PC boards. *Twin U-slot ID section *Fully shrouded header *The same shrouded header can be used for the XH crimp style connector, the NR and the BR insulation displacement connectors, and the JQ board-to-board connector.
Product Profile
Series
NRD connector
Category
Wire to Board Insulation Displacement Connectors
Te
Disconnectable te IDC style, Daisy chain connection
Specification
Pitch
2.5 mm
Current rating
2A (AWG#24)
Voltage rating
250V
PC board mounting direction
Top entry, Side entry
Compliant with RoHS. (LF)(SN) as identification part number shall be displayed on a label. When ordering RoHS compliant products, please inquire to the nearest JST Sales Office, or order them with the described part number adding (LF)(SN) as the identification marking after it.
