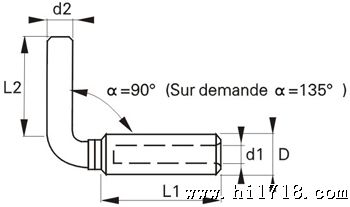

| Part No. | Section(mm2) | Dimensions(mm) | ||||
| d1 | D | d2 | L1 | L2 | ||
| GTUA16 | 16 | 5.5 | 16 | 8 | 47.5 | 30 |
| GTUA25 | 25 | 6.5 | 16 | 8 | 47.5 | 30 |
| GTUA35 | 35 | 8 | 16 | 8 | 47.5 | 30 |
| GTUA50 | 50 | 9 | 20 | 12 | 47.5 | 45 |
| GTUA70 | 70 | 11 | 20 | 12 | 47.5 | 45 |
| GTUA95 | 95 | 12.5 | 20 | 12 | 47.5 | 45 |
| GTUA120 | 120 | 13.7 | 25 | 14 | 64 | 55 |
| GTUA150 | 150 | 15.5 | 25 | 14 | 64 | 55 |
| GTUA185 | 185 | 17 | 32 | 14 | 64 | 55 |
| GTUA240 | 240 | 19.5 | 32 | 14 | 64 | 55 |
