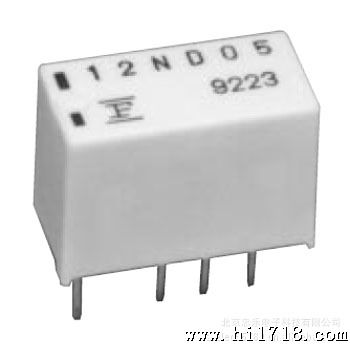

FBR12ND05信号继电器

Item

High Sensitive Te

Standard (Gold-overlay silver-nickel)

-P te (Gold-overlay silver-palladium)

Conta

Arrangement

2 form C (DPDT)

Material

Gold-overlay silver-nickel

Gold-overlay silver-palladium

Style

Bifurcated

Resistance (initial)

Maximum 100 m (at 0.1 A 6 VDC)

Rating (resistive)

0.3 A 125 VAC or 1 A 30 VDC

Maximum Carrying Current

2 A (at 20 C)

Maximum Switching Power

62.5 VA or 30 W

Max. Switching Voltage*1

250 VAC or 220 VDC

Maximum Switching Current

2 A

Minimum Switching Load*2

10m VDC - 10 A

Capacitance

(at 10 kHz)

Approximately 1.0 pF (between open contas, adjacent contas ) Approximately1.0 pF (between coil and contas)

Coil

Nominal power (at 20 C)

Approximately 50mW

Operate power (at 20 C)

Approximately 40m W

Operating Temperature

–40 C to +70 C (no frost) (refer to the CHARAERISTIC DATA)

Operating Humidity

45 to 85%RH

Time Value

Operate (at nominal voltage)

Maximum 5 msec.

Release (at nominal voltage)

Maximum 5 msec.

Insulation

Resistance (initial)

Minimum 1000 M    (at 500 VDC)

Dieleric

Strength

between open contas

750 VAC

1 minute

adjacentcontas

between coil and contas

1,500 VAC1 minutes

Surge

Strength

between opencontas,

adjacentcontas

1,500 V

10 700 s

between coil and contas

2,500 V

2   10   s

Life

Mechanical

1 x 108operations minimum

Elerical

(at conta rating)

DC

2    105operations minimum

5    105operations minimum

AC

1    105operations minimum

200    103operations minimum

Other

Vibration

Resistance

Misoperation

10 to 55 Hz (double amplitude of 3.3` mm)

Endurance

10 to 55 Hz (double amplitude of 5.0 mm)

Shock

Resistance

Misoperation

500 m/s2(111ms)

Endurance

1,000 m/s2( 61ms)

Weight

Approx. 1.9 g
