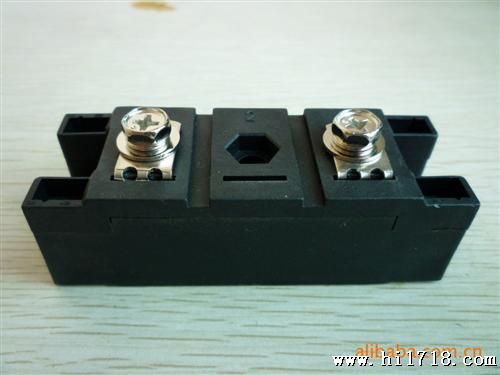

快速软恢复二管模块
（技术参数德国IXYS标准）
桥臂模块（MZC） 对接模块（MZK/MZA） 单二管模块（MZD）
型号 电流 电压 压降恢复时间 工作频率
MZC100TS60S 2×100A 600V 1.36V 132ns 5KHZ-50KHZ
MZC150TS60S 2×150A 600V 1.26V 140ns 5KHZ-50KHZ
MZC200TS60S 2×200A 600V 1.4V 155ns 5KHZ-50KHZ
MZC300TS60S 2×300A 600V 1.19V 170ns5KHZ-50KHZ
MZ00TS60S 2×400A 600V 1.4V 200ns 5KHZ-50KHZ
MZK100TS60S 2×100A 600V 1.36V 132ns 5KHZ-50KHZ
MZK150TS60S2×150A 600V 1.26V 140ns 5KHZ-50KHZ
MZK200TS60S 2×200A 600V 1.4V 155ns5KHZ-50KHZ
MZK300TS60S2×300A 600V 1.19V 170ns 5KHZ-50KHZ
MZK400TS60S 2×400A 600V 1.4V 200ns 5KHZ-50KHZ
（MZA与MZK技术参数相同）
MZC100TS120S2×100A 1200V 1.54V 150ns 5KHZ-40KHZ
MZC150TS120S2×150A 1200V 1.8V 188ns 5KHZ-40KHZ
MZC200TS120S2×200A 1200V 1.54V 188ns5KHZ-40KHZ
MZC300TS120S2×300A 1200V 1.85V 231ns 5KHZ-40KHZ
MZ00TS120S2×400A 1200V 1.85V 240ns 5KHZ-40KHZ
MZK100TS120S2×100A 1200V 1.54V 150ns 5KHZ-40KHZ
MZK150TS120S2×150A 1200V 1.8V 188ns5KHZ-40KHZ
MZK200TS120S2×200A 1200V 1.54V 188ns5KHZ-40KHZ
MZK300TS120S2×300A 1200V 1.85V 231ns 5KHZ-40KHZ
MZK400TS120S2×400A 1200V 1.85V 240ns 5KHZ-40KHZ
MZD300DD60S 300A 600V 1.19V 170ns 5KHZ-50KHZ
MZD600DD60S 600A 600V 1.41V 250ns 5KHZ-50KHZ
MZD900DD60S 900A 600V 1.41V 270ns 5KHZ-50KHZ
MZD200DD120S 200A 1200V 1.54V 188ns 5KHZ-40KHZ
MZD450DD120S 450A 1200V 1.76V 250ns 5KHZ-40KHZ
MZD600DD120S 600A 1200V 1.85V 260ns 5KHZ-40KHZ
MZD800DD120S 800A 1200V 1.85V 280ns 5KHZ-40KHZ
