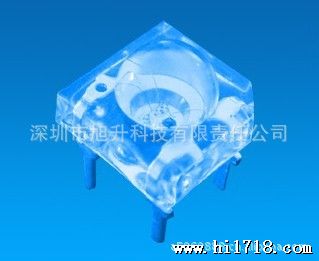

Part Number: 单位：5mmRGB全彩食人鱼
1.All dimensions are in millimeters (inch).
■ Absolute Maximum Rating 限工作参数
Item 项目 | Symbol 代号 | Absolute Maximum Rating 限工作参数 | Unit 单位 |
Forward Current 正向电流 | IF | 20 | mA |
Peak Forward Current 脉冲电流 | IFP | 50 | mA |
ReverseVoltage 反向电压 | VR | 5 | V |
Power Dissipation 消耗功率 | PD | 100 | mw |
Electrostatic discharge 静电释放 | D | 1000 | V |
Operation Temperature 工作温度范围 | R | -40～+80 | ℃ |
Storage Temperature 存放温度范围 | TSTG | -40～+100 | ℃ |
Lead Soldering Temperature焊接温度 | TSOL | 230 ℃ for 3sec Max。 | |
*Ifp Conditions: Pulse Wide≤10msec≤1/10 脉冲电流*Tsol Conditions:3mm from the base of epoxy bulb焊接温度 距胶体3mm■ Tical Optical/Electrical Characteristics 光电特性参数
Item 项目 | Symbol 代号 | Condition 测试条件 | Min 小值 | T 典型值 | Max 值 | Unit 单位 | |||
Forward Voltage正向电压 | VF | IF=20mA | R | 1.8 | 2.0 | 2.2 | V | ||
G | 3.0 | 3.2 | 3.4 | ||||||
B | 2.9 | 3.1 | 3.3 | ||||||
Light intensity 光强度 | IV | IF=20mA | R | 300 | 350 | 500 | mcd | ||
G | 800 | 900 | 1000 | ||||||
B | 300 | 350 | 500 | ||||||
Welength 波长 | WD | IF=20mA | R | 620 | 623 | 625 | nm | ||
G | 520 | 522 | 524 | ||||||
B | 469 | 470 | 472 | ||||||
Reverse current 逆向电流 | IR | IF=20mA | 0 | / | 5 | uA | |||
Viewing Angle半光全角 | 2θ1/2 | IF=20mA | 30 | deg | |||||
Recommend Forward Current 持续正向电流 | IF(rec) | IF=20mA | 20 | mA | |||||
Not: 1.Work absolute ratings Ta=25℃ 工作常规值 温度=25℃2.Tolerance of measurement of forward voltage&plun;0.1V 正向电压误差范围&plun;0.1V
Tt Clification | Tt Item | Tt Conditions | Tt Duration | Sample QTY | AC/RE |
Life Tt | Room Temperature DC Operating Life Tt | Ta=25℃&plun;5℃，IF=20mA | 1000 hrs | 30pcs | 0/1 |
Environment Tt | Thermal Shock Tt | -10℃&plun;5℃←→+100℃&plun;5℃ 5min. 10sec. 5min. | 50 cycl | 30 pcs | 0/1 |
Temperature Cycle Tt | -40℃&plun;5℃←→25℃&plun;5℃←→+85℃&plun;5℃ 30min. 5min. 30min. | 50 cycl | 30 pcs | 0/1 | |
High Temperature ＆ High Humidity Tt | Ta=85℃&plun;5℃ RH =85%&plun;0.5 %RH | 1000 hrs | 30 pcs | 0/1 | |
High Temperature Storage | Ta=100℃&plun;5℃ | 1000 hrs | 30 pcs | 0/1 | |
Low Temperature Storage | Ta=-55℃&plun;5℃ | 1000 hrs | 30 pcs | 0/1 | |
Mechanical Tt | Ristance to Soldering Heat | Ta=230℃&plun;5℃ | 5sec. | 30 pcs | 0/1 |
Lens Integrity | Load 2.5N(0.25kgf) 0° ~ 90° ~0° | 3tim | 30 pcs | 0/1 |
