1. Features

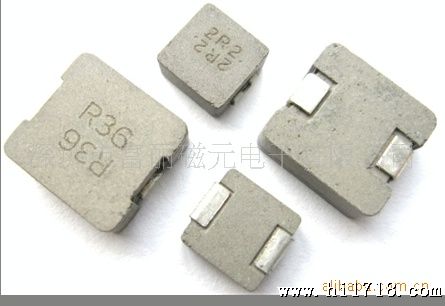

1. Alloymetal powder inductor.
2. Compact design.
3. High current，low DCR，high efficiency.
4. Very low acoustic noise and very low leakage flux noise.
5. High reliability.
6. 100% Lead(Pb)-Free and RoHS compliant.
2.Applications
Note PC power system，incl. IMVP-6DC/DC converter .

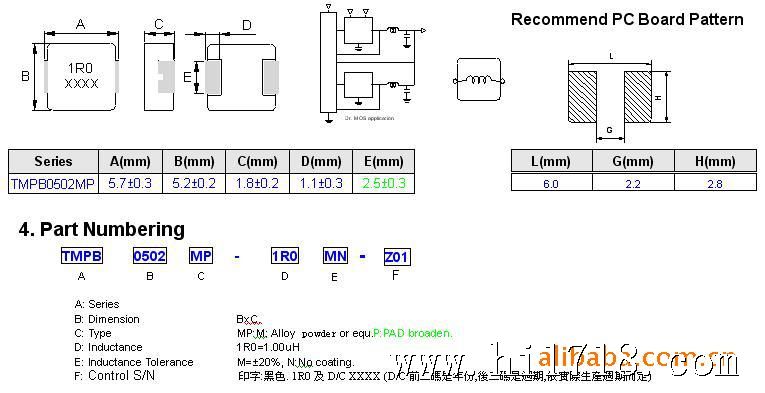

3. Dimensions
Part Number | Inductance L0 (uH)&plun;20%@0 A | I rms (A) T. | I sat (A) T. | DCR(mΩ) T.@25℃ | DCR(mΩ) Max.@25℃ |
TMPB0502MP-R68MN-Z01 | 0.68 | 10 | 12 | 12.5 | 14.5 |
TMPB0502MP-1R0MN-Z01 | 1.00 | 7.0 | 11 | 17.4 | 20 |
TMPB0502MP-2R2MN-Z01 | 2.20 | 5.0 | 6.5 | 28 | 33 |
TMPB0502MP-3R3MN-Z01 | 3.30 | 4.2 | 5.0 | 40 | 48 |
TMPB0502MP-4R7MN-Z01 | 4.70 | 3.2 | 4.5 | 72 | 85 |
TMPB0502MP-5R6MN-Z01 | 5.60 | 3.2 | 4.0 | 94 | 108 |
TMPB0502MP-6R8MN-Z01 | 6.80 | 3.0 | 3.8 | 96 | 112 |
1 Test frequency :L:100KHz /1.0V
2 All test data referenced to 25℃ambient
3Testing Instrument : L/Q:HP4284A,CH11025,CH3302,CH1320 ,CH1320S LCR METER / Rdc:CH16502,Agilent33420A MICRO OHMMETER
4Heat Rated Current (Irms) will cause the coil temperature rise approximatelyΔt of 40℃ (keep 1min.)
5 thickness,airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
