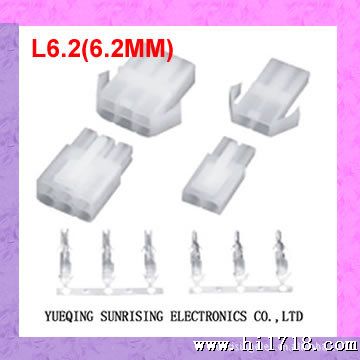

供应家用接插件 L6.2(6.2MM)
线数(poles):1、2、3、4、6、9、12、15
适用线规(applicable wires):AGW22#~16#
适用基板厚度(applicable PC board thickness):1.2~2.0mm
温度范围(temperature range):-25℃~85℃
额定电压(voltage rating):300v.Ac/Dc
额定电流(current rating):15~9A
接触电阻(contact resistance):≤0.01Ω
缘电阻(insulation resistance):≥1000MΩ
耐压(Withstand voltage):1500V.Ac/1min
材料(Material):
插头(Plug housing):尼龙(PA66)UL94V-2
插座(Receptacle housing):尼龙(PA66)UL94V-2
端子(Terminal):磷青铜(Phos.bronze Tin/plated)
