- 品牌/商标：OBTE
- 企业类型：制造商
- 原产地：江苏
- 输出：模拟
供应LSZ-A02 拉压力传感器 拉压称重传感器苏州厂家

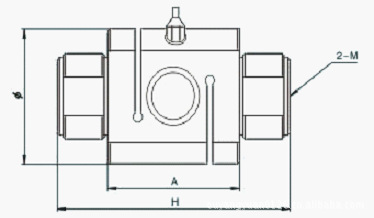

上下内螺纹固定安装，拉压两用
产品特点 | Feature
n column load cell
n Senior aluminum
n Easy to install, stabile & reliable
l Apply to batching scales,crane scales and special scales,etc.
l 柱式传感器
l 优质铝合金材质
l 安装简便、快捷，稳定可靠
l 适用于各种配料秤、吊钩秤和各类专用称等。
量程 | Capacities
100kg, 200kg, 300kg, 500kg, 700kg ，1t, 2t, 3t,5t, 10t,15t, 20t
技术参数 | Specification
Rated Output | 额定输出 | 2.0mv/v±1% |
Zero Balance | 零点平衡 | ±1% of rated output |
Creep After 30 Minutes | 蠕变 | ±0.03% of rated output |
Nonlinearity | 非线性 | ±0.03% of rated output |
Hysteresis | 滞后 | ±0.03% of rated output |
Repeatability | 重复性 | ±0.03% of rated output |
Temp. effect on output | 灵敏度温漂 | ≤0.002% of applied output/℃ |
Temp. Effect on zero | 零点温漂 | ≤0.002% of rated output/℃ |
Safe temp. Range | 可用温度范围 | -10℃ to+70℃ |
Temp.Compensated | 温度补偿范围 | -10℃ to+40℃ |
Safe Overload | 安全载荷 | 150% |
Input Impedance | 输入阻抗 | 387 Ω±20Ω |
Output Impedance | 输出阻抗 | 350 Ω±5Ω |
Insulation Resistance | 绝缘阻抗 | ≥5000MΩ(50V DC) |
Rated Excitation | 推荐激励电压 | 10V DC/AC |
Cable Color Code | 导线颜色 | Red(+E)Black(-E)Green(+S)White(-S) |
