笔记本车载适配器DC80W 车用足功率80W 7个电压档可调 尽在深圳市锦鸿泰电子有限公司

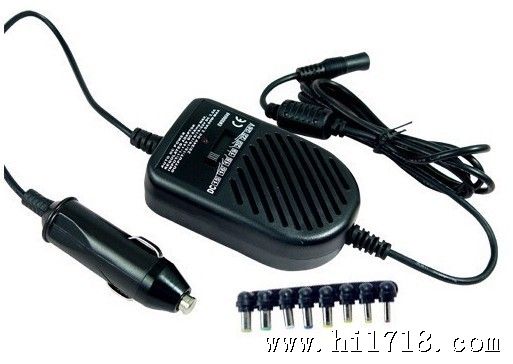

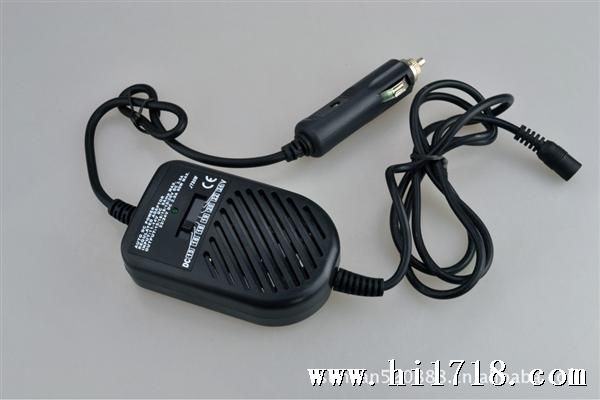

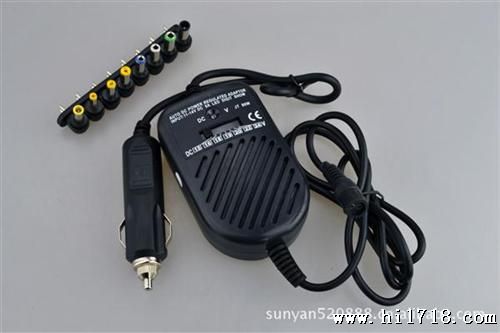

80W车载笔记本多功能电源

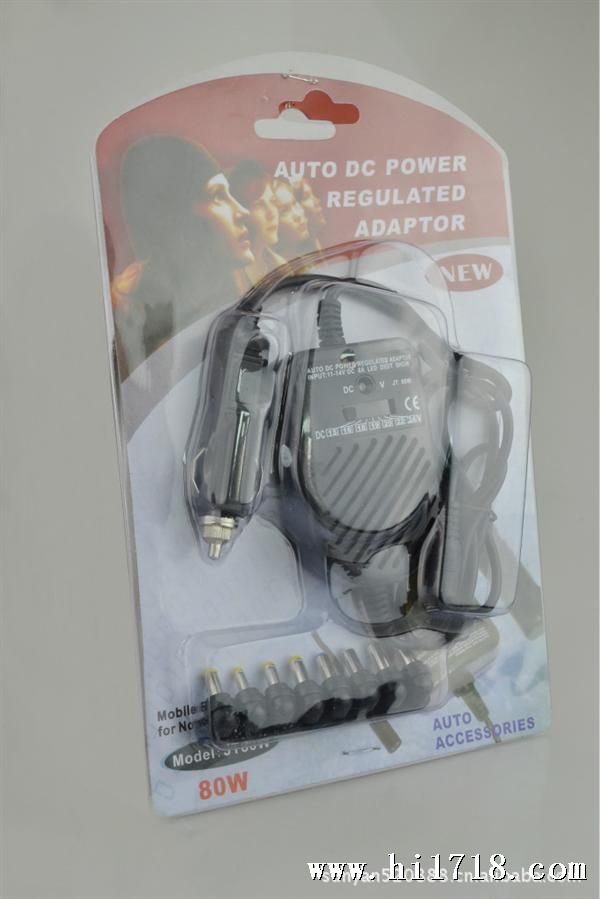

1.包装方式/Packing 吸塑
2.台/箱PCS/Carton 50pcs

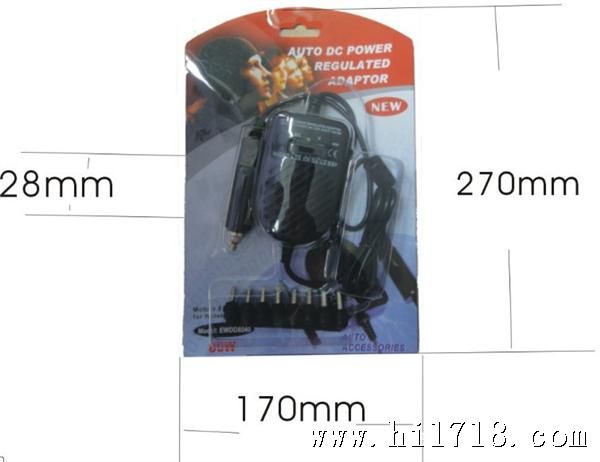

3.外箱尺寸/Measure 51*39*38cm
4.个重/Unit weight 0.28kg
5.净重/Net Weight 14kg
6.毛重/Gross Weight 15kg
性能参数/Specifications:
1)交流输入电压/Input voltage DC9V~15V
2)输出直流电压/Output DC voltage 12V、16V、18V、19V、20V、22V、24V(adjustable)
3)输出直流电流/Output DC current 12~18V:5.5A Max;19~24V:4A Max
4)输出功率/Valid power 80W
5)With U charging port DC 5V
Model:JT-80W
Specification:
General Description:
This Model lap adapter is a switching-mode power supply for all kinds of lap, operation at input DC12V and output DC voltage 15V/16V/18V/19V/20V/22V/24V at 4000mA load, output power 80WATTS max,with short circuit protection function.
. | Item | Specification | |
1) | Rated Input Voltage | Dc12V-16v | |
| |||
2) | Input Rated Current | 10A | |
Input Min. Current | 50mA | ||
3) | Input Power | 100W | |
Efficiency | >80%(TYP) | ||
4) | Output voltage: 15/16/18/19/20/22/24V (0~+0.6V LOAD) | DC15-24V | |
5) | Output voltage: 15/16/18/19/20/22/24V (+/-0.6V@4000mA DC LOAD) Output current: 4.0A(max) | DC15-24V 4.0AMP | |
6) | Output short circuit protection: | yes | |
7) | Ripple ise | 100mV | |
8) | Line Regulation | +/-5% | |
9) | Load Regulation | +/-5% | |
l rmal Operating Temperature and Humidity:
l
1 Operating Temperature: 0℃to 40℃
2 Humidity: 20% to 80%
l Storage Temperature and Humidity:
l
1 Storage Temperature: -10℃to 70℃
2 Humidity: 10% to 90%
