| 品牌 | 杭光 | 型号 | PB |
l 铝合金制品可。
l 公英制皆有制做。
l 表面皆经研磨与抛光处理,平整度:&plun;0.015mm。
l 接受各种规格尺寸之订制。

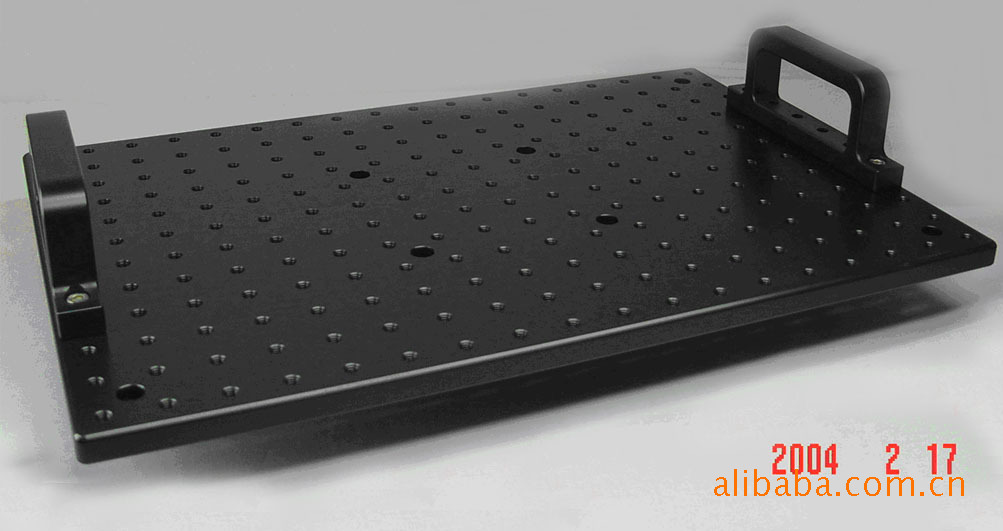

l 订购手把，请加上型号#(HD150-1)
Tapped Holes : M6x1.0P or 1/4”x20W | |||||
PRODU NUER | Size: AxB mm ( Inch) | Thickness: C mm ( Inch) | Tapped Holes Plattern D mm ( Inch) | Flatness (mm) | Weight (kg) |
SAB-1530P | 150 (6”)x300 (12”) | 12.7 (0.5”) | 25mm(1.0”) apart | &plun;0.015 | 0.93 |
SAB-3030P | 300 (12”)x300 (12”) | 12.7 (0.5”) | 25mm(1.0”) apart | &plun;0.015 | 2.50 |
SAB-3045P | 300 (12”)x450 (18”) | 12.7 (0.5”) | 25mm(1.0”) apart | &plun;0.015 | 3.80 |
SAB-3060P | 300 (12”)x600 (24”) | 12.7 (0.5”) | 25mm (1.0”) apart | &plun;0.02 | 4.80 |
Material (Treatment) | Aluminum ( Black anodized ) | ||||
Tapped Holes : M4x0.7P or #8x32W | |||||
PRODU NUER | Size: Inch (mm) | Thickness (mm) | Tapped Holes Plattern (mm) | Flatness (mm) | Weight (kg) |
PB-1212\ PB-1212P | 120 (5”) x120 (5”) | 10(0.4”) | 25mm(1.0”) apart | &plun;0.08/&plun;0.015 | 0.32 |
PB-1220\ PB-1212P | 120 (5”) x 200 (8”) | 10(0.4”) | 25mm (1.0”) apart | &plun;0.08/&plun;0.015 | 0.56 |
PB-2030\ PB-1212P | 200 (8”) x300(12”) | 10(0.4”) | 25mm(1.0”) apart | &plun;0.08/&plun;0.015 | 1.30 |
PB-3030\ PB-1212P | 300(12”) x 300(12”) | 10(0.4”) | 25mm(1.0”) apart | &plun;0.08/&plun;0.02 | 2.33 |
Material (Treatment) | Aluminum ( Black anodized ) | ||||
Tapped Holes : M2x0.4P | |||||
PRODU NUER | Size(mm) | Thickness (mm) | Tapped Holes Plattern (mm) | Flatness (mm) | Weight (kg) |
MPB-1216\ MPB-1216P | 120x160 | 8 | 10mm apart | &plun;0.05/&plun;0.01 | 0.41 |
MPB-1220\MPB-1220P | 120x200 | 8 | 10mm apart | &plun;0.05/&plun;0.01 | 0.76 |
MPB-1216\MPB-2030P | 200x300 | 8 | 10mmapart | &plun;0.08/&plun;0.015 | 1.28 |
Material (Treatment) | Aluminum ( Black anodized ) | ||||
