| 品牌 | 杭光 | 型号 | PH/RH |
| 用途 | 支撑棒座之孔有一方型凹角产生二条接触线可牢牢固定支撑棒，且不会间隙晃动的产生 |
l 支撑棒座之孔有一方型凹角产生二条接触线可牢牢固定支撑棒，且不会间隙晃动的产生。
l 铜制螺丝孔底座既耐重又稳固。
l 支撑棒座装有弹簧钢珠，固定时不会产生位移现象。
l 加上RHX或RH系列在旋转的同时可维持高度。
l PH8-20C(直径8mm(0.313”)可水平或垂直固定支撑棒。

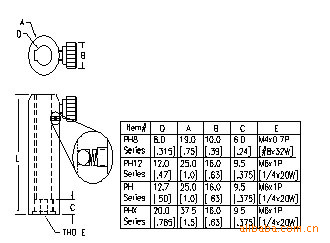

For diameter Ø 8mm (0.313”) Post. | For diameter Ø 20mm (0.785”) Post | ||||||||||
Product Number | PH8-20C | PH8-20 | PH8-40 | PH8-60 | PHX-2 | PHX-3 | PHX-4 | PHX-6 | |||
Length ( L) mm( Inch ) | 20(0.785”) | 40(1.57”) | 60(2.36”) | 20.5(2”) | 76.2(3”) | 101.6(4”) | 152.4(6”) | ||||
Weight (kg) | 0.02 | 0.04 | 0.06 | 0.13 | 0.19 | 0.25 | 0.36 | ||||
For diameter Ø 12mm Post | Post Collar | ||||||||||
Product Number | PH12-25 | PH12-38 | PH12-50 | PH12-75 | PH12-100 | PH12-120 | Post Diameter | Product number | |||
Length ( L ) ( mm ) | 25 | 38 | 50 | 75 | 100 | 120 | Ø8 Series | RH8 | |||
Weight (kg) | 0.04 | 0.06 | 0.08 | 0.12 | 0.15 | 0.18 | Ø12 Series | RH12 | |||
For diameter Ø 12.7mm (0.5”) Post | 12.7mm (0.5”) Series | RH | |||||||||
Product Number | PH-1 | PH-1.5 | PH-2 | PH-3 | PH-4 | PH-6 | |||||
Length ( L ) mm( Inch ) | 25.4(1”) | 38.1(1.5”) | 50.8(2”) | 76.2(3”) | 101.6(4”) | 152.4(6”) | 20mm (0.875”) Series | RHX | |||
Weight (kg) | 0.04 | 0.06 | 0.08 | 0.12 | 0.15 | 0.23 | |||||
Material | Aluminum ( Black anodized ) | ||||||||||
