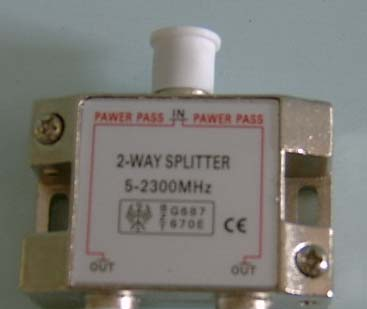

供应有线电视分支分配器(图)
| 价 格： | 面议 |
CATV SPLITTERS 5-1000MHz ● ZINC DIE-CASTING HOUSING，NICKLE—PLATED. ● ALL PORTS F FEMALE CONNECTOR,75Ω. ● POWER PASSING 24VDC 0.5A MAX. ● BUILT-IN TWO GROUNDING BLOCK. ● TWO PIECES OF SCREWS ATTACHED. ● PARTICULARLY DESIGED FOR EASY AND CONVENIENT INSTALLATION, EVEN THICKER 9mm CABLE MODEL: XIA-412 XIA-412D(POWER PASS TO ONE PORT) XIA-412A(POWER PASS TO ALE PORTS SPECIFICATION FREQUENCY INSERTION ISOLATION RETURN RANGE(MHz) LOSS(dB) (dB) LOSS(dB) 6-WAY SPLITTERS 5∽40 9 20 14 40∽470 9.5 20 15 470∽1000 10.5 20 11
- 所属城市：
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邬晓敏
- 电话：86-21-64054861
- 传真：
- 手机：
- QQ ：
供应有线电视分支分配器(图)
信息内容：STA ● SPLITTERS 5-2050/2300MHz ● ZINC DIE-CASTING HOUSING，NICKLE—PLATED. ● ALL PORTS F FEMALE CONNECTOR,75Ω. ● POWER PASSING 24VDC 0.5A MAX. ● BUILT-IN TWO GROUNDING BLOCK. ● TWO PIECES OF SCREWS ATTACHED. ● PARTICULARLY DESIGED FOR EASY. AND CONVENIENT INSTALLATION,EVEN THICKER 9mm CABLE. MODEL: XIA-802 XIA-802D(POWER PASS TO ONE PORT) XIA-802A(POWER PASS TO ALE PORTSSPECIFICATION FREQUENCY INSERTION ISOLATION RETURN 2-WAY SPLITTERS RANGE(MHz) LOSS(dB) (dB) LOSS(dB) 5∽40 4 16 15 4∽1000 5 22 20 1000∽1750 5.3 25 19 1750∽2050 5.8 25 10 2050∽2300 6.8 20 10
供应大功率定向耦合器WNO-DC1710/2500
信息内容：供应大功率定向耦合器WNO-DC1710/2500
