dzsc/18/9174/18917487.jpgdzsc/18/9174/18917487.jpg Multilayer Chip Inductors for High FrequencyMLCH100505(0402) /MLCH160808(0603)MLCH201209(0805) /MLCH201212(0805) Features (特長)●To prevent EMI interference noises betweenelectronic circuits. (可降低噪音及濾波電磁干擾)● High Q and high reliability and ceramic material. (高品質因素、高可靠性、陶瓷材質)Application (用途)● Notebook Computer, Disc Drive Unit(CD/DVD),Inkjet Printer, Hard Disk Drive, Copying Machine, Display Monitor, Gaming Machine, Color TV, VideoTape Recorder, DVD Player, Video Camera, DigitalStill Camera, Car Electronics, Lowest EMI. (筆記型電腦、磁片驅動裝置、噴墨印表機、硬碟磁碟機、影印機、顯示監視器、遊戲機、彩色電視、錄放影機、光碟機、攝影機、數位相機、 汽車電子產品、防干擾對策) dzsc/18/9174/18917487.jpgdzsc/18/9174/18917487.jpg

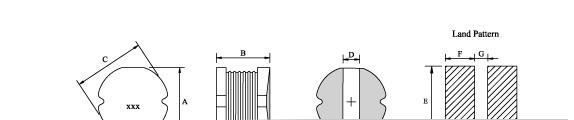

特点:1.过载大电流。 2.用于DC-DC电源。 3.体积小。 4.贴片式。 SMT Unshielded Power InductorsML32 / ML43 / ML52 / ML53 / ML54ML73 / ML75 / ML104 / ML105Features (特長)● Open Magnetic circuit construction (開磁路構造設計)● Compact and thin (輕便薄小)● Put the electrode with ferrite core directly, a small surface area allow a high mounting density. (直接電極設計、降低零件高度)Applications (用途)● VTR, OA equipment, LCD television set, Notebook, portable communication equipments, DC/DC converters, etc.. (錄放影機、OA儀器、液晶電視、筆記型電腦、小型通信機器、直流轉換器等)Product Identification (產品識別)ML32-(Ex. ML32-1R0M)dzsc/18/9179/18917995.jpg1dzsc/18/9179/18917995.jpg2dzsc/18/9179/18917995.jpg3(1) SMT Unshielded Power Inductors (開放式功率電感)(ML32, ML43, ML52, ML53, ML54, ML73, ML75, ML104, ML105)(2) Inductance (電感值)(3) Tolerance (誤差值) ( J 5%, K 10%, L 15%, M 20%, N 30% )Configurations & Dimensions (結構圖及規格尺寸) dzsc/18/9179/18917995.jpg"
