供应FAS 3.0磁敏角度传感器
| 价 格： | 1.00 |
A new generation of F ast A ngular S ensor FAS3 is featuring:新一代的 F AST A ngular S恩索尔FAS3的是：
- high speed rotation sensing up to 120 krpm高速旋转传感至120 krpm
- adjustable resolution from 8 to 16 bits从8到16位的分辨率可调
- only 3 μs latency只有3μs延时
- world's smallest angle sensor packaged in QFN 3 x 3 x 0.9 mm世界上最小的角度传感器封装QFN 3×3×0.9毫米

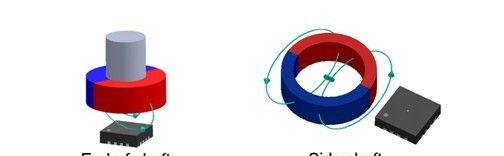

- end-of-shaft or side-shaft magnet configurations结束时的轴或轴侧的磁铁配置
- dzsc/19/4406/19440677.jpg
主要特点
Absolute angle measurement 角度测量
500 kHz refresh rate 500千赫刷新率
Ultra low latency: 3 µs 超低延迟：3微秒
25 µs power-up time 电时间25微秒
Serial interface for data readout and settings 串行接口数据读取和设置
PWM output PWM输出
Incremental Output (A,B,I or U,V,W) 增量输出（A，B，I或U，V，W）
Selectable resolution 8 to 16 bits 可选第8至16位
Built-in linearization for side-shaft configuration 内置侧轴配置线性
7 mA supply current 7 mA电源电流
Low temperature dependence: < 0.01 deg/°C 低的温度依赖性：<0.01度/°C
应用
电机控制
Motor block commutation 电机块减刑
Absolute encoders configurable for: 式编码器配置为：
Low latency applications 低延迟的应用
High resolution applications 高分辨率的应用
Low power applications 低功耗应用
1024 cpt incremental sensor 1024 CPT增量式传感器
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈先生
- 电话：0755-82029425-801
- 传真：0755-88267240
- 手机：13602685986
- QQ ：
供应FAS3.0磁值角度传感器
信息内容：The Spinaxis® FAS is a magnetic sensor designed for contactless angle measurement. The IC detects the absolute angular position of a permanent magnet, typically a diametrically magnetized cylinder attached to a shaft. The particularity of FAS is an extremely fast acquisition and processing, allowing angle measurement with very low lag, less than 1 deg, up to 120’000rpm. Since the measurement is local, the user has great flexibility to choose magnet shapes and configurations. This helps relaxing mechanical tolerances. If the end of shaft position is not available, the FAS can also operate away from the axis of rotation (“side-shaft” configuration).dzsc/19/4414/19441473.jpg
