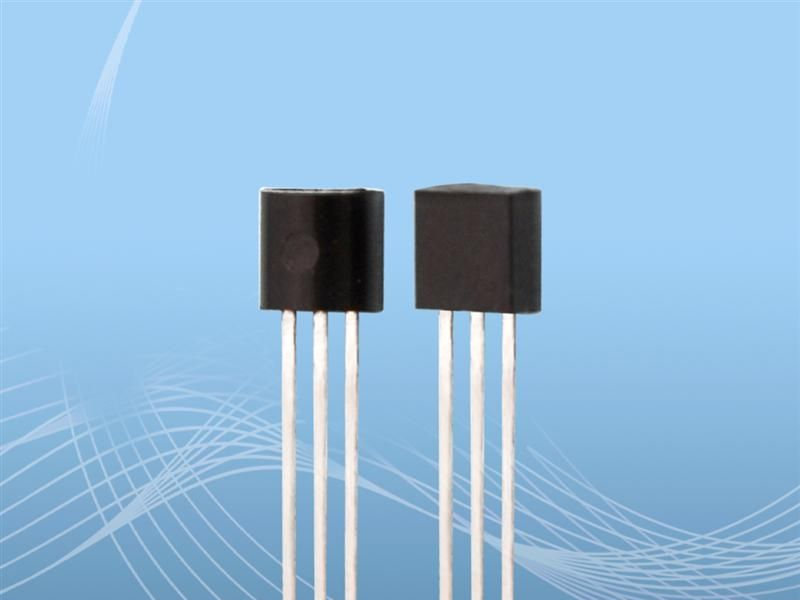

单向可控硅BT169 series
| 价 格： | 面议 | |
| 型号/规格： | BT169 series | |
| 品牌/商标： | SZGKT |
GENERAL DESCRIPTION:
Glass passivated, sensitive gate triacs in a plastic envelope, suitable for surface mounting
, intended for use in general purpose switching and phase control applications,. This dev-
ices is intended to be interfaced directly to microcontrollers, logic integrated circuits and
other low power gate trigger circuits.
QUICK REFERENCE DATA:
|
SYMBOL |
PARAMETER |
MAX |
MAX |
MAX |
MAX |
UNIT |
|
169- |
BW |
DW |
EW |
GW |
||
|
VDRM |
Repetitive peak off-state voltage |
200 |
400 |
500 |
600 |
V |
|
VRRM |
||||||
|
IT(AV) |
Average on-state current |
0.5 |
0.5 |
0.5 |
0.5 |
A |
|
IT(RMS) |
RMS on-state current |
0.8 |
0.8 |
0.8 |
0.8 |
A |
|
ITSM |
Non-repetitive peak on-state current |
8 |
8 |
8 |
8 |
A |
STATIC CHARACTERISTICS:
|
SYMBOL |
PARAMETER |
CONDITION |
MIN |
TYP |
MAX |
UNIT |
|
|
IGT |
Gate trigger current |
VD=12V, IT=10mA |
- |
50 |
200 |
uA |
|
|
VGT |
Gate trigger current |
VD=12V, IT=10mA |
- |
0.5 |
0.8 |
V |
|
|
VD=VDRM (max), IT=10mA, Tj=125℃ |
0.2 |
0.3 |
- |
V |
|||
|
dVD/dt |
Critical rate of rise of off-state voltage |
VD=67%VDRM (max) , Tj=125℃ exponential waveform,RGK=1KΩ |
- |
25 |
- |
V/us |
|
|
tgt |
Gate controlled turn-on time |
ITM=2A, VD=VDRM (max), IG=10mA, dIG/dt=0.1A/us |
- |
2 |
- |
us |
|
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：

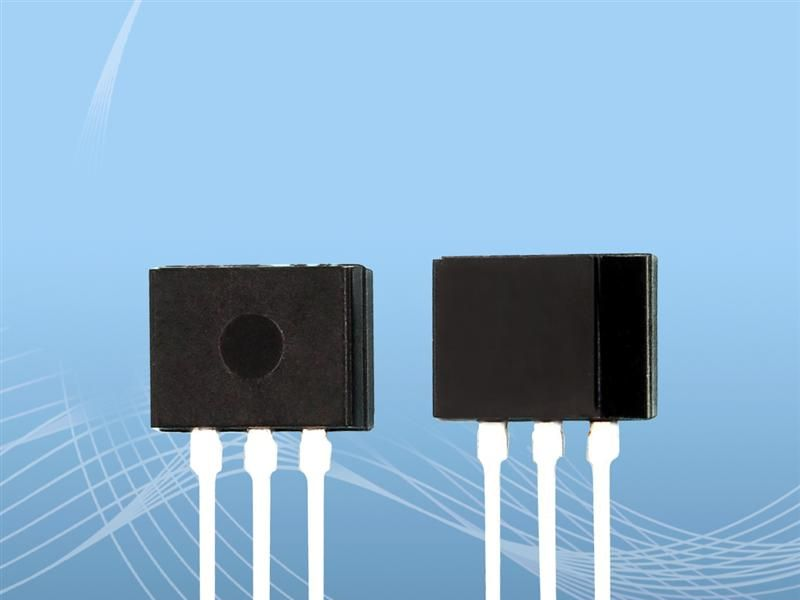

双向可控硅 T630 WCG 0809
