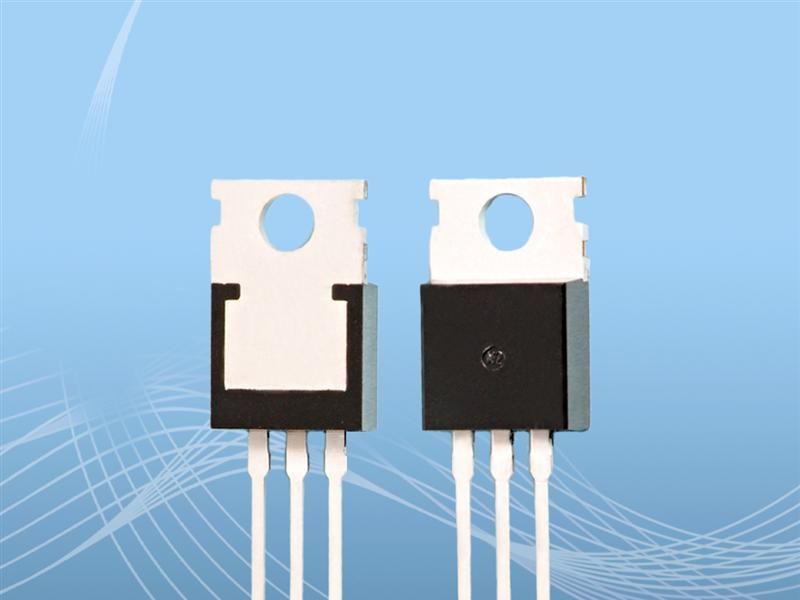

双向可控硅 BTA08-1000V
| 价 格： | 面议 | |
| 型号/规格： | BTA08-1000V | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
8 |
A |
|
VDRM/VRRM |
600 and 800 |
V |
|
IG(Q1) |
5 to 50 |
mA |
DESCRIPTION:
Available either in through-hole or surface-mount packages, the A08, B08 and T8 triac
series is suitable for general purpose AC switching, They can be used as an ON/OFF function in applicationssuch as static relays, heating regulation, induction motor start-
ing circuits...or for phase control in light dimmers, motor speed controllers,...
The snubberless ang logic level versions(A/B...BX,T8 series) are specially recommended
for use on inductive loads,thanks for their high conmutation performances.By using an
internal ceramic pad, the A series provides voltage insulates tab(rated at 2500V RMS) co-
mplying with UL standards.
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
IPAK/D2PAK/ DPAK/TO-220AB |
Tc=110℃ |
8 |
A |
|
TO-220AB Ins |
Tc=100℃ |
|
|||
|
ITSM |
Non repetitive surge peak on-state current(full cycle, Tj=25℃ ) |
F=50Hz |
t=20ms |
80 |
A |
|
F=60Hz |
t=16.7ms |
84 |
|||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
|
Symbol |
Test conditions |
Quadrant |
|
T8 |
A08/B08 |
Unit |
||||
|
T810 |
T835 |
B1 |
B2 |
B3 |
B4 |
|||||
|
IGT |
VD=12V RL=30Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
10 |
35 |
5 |
10 |
35 |
50 |
mA |
|
VGT |
Ⅰ-Ⅱ-Ⅲ |
MAX |
1.3 |
V |
||||||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN |
40 |
400 |
20 |
40 |
400 |
1000 |
V/us |
|
|
Symbol |
Test conditions |
Quadrant |
|
A/B08 |
Unit |
|
|
4 |
5 |
|||||
|
IGT |
VD=12V RL=30Ω |
ⅠⅡⅢ |
MAX |
25 |
50 |
mA |
|
Ⅳ |
50 |
100 |
||||
|
VGT |
ALL |
MAX |
1.3 |
V |
||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN |
200 |
400 |
V/us |
|
|
Symbol |
Test conditions |
Value |
Unit |
||
|
VT(2) |
ITM=11A, tp=380us |
Tj=25℃ |
MAX |
1.55 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
1 |
mA |
||
ORDERING INFORMATION SCHEME:
