供应WIKA DPT-10 差压变送器
| 价 格： | 1000.00 | |
| 型号/规格： | DPT-10 | |
| 品牌/商标： | WIKA |
| 接口尺寸： | 1/2NPT（mm） | 加工定制： | 是 |
| 防护等级： | IP65 | 测量范围： | 0-1000BAR（kPa） |
| 类型： | WIKA 差压变送器 | 防爆等级： | ATEX |
| 型号： | DPT-10 | 测量介质： | 液体 气体 |
| 精度等级： | 0.1 | 品牌： | WIKA/威卡 |
| 输出信号： | 4-20（mA） | 电源电压： | 10-30（V） |
WIKA DPT-10 DPT-11差压变送器
本安型 隔膜型 HART协议加隔膜
Differential Pressure Transmitter
Model DPT-10
dzsc/19/4141/19414198.jpg
Differential Pressure Transmitter Model DPT-10
Applications
Process engineering
Pharmaceutical
Food and beverage industries
Special features
High measuring accuracy
Scaleable measuring ranges
Various hazardous area approvals
Seven different housing variants
Configuration via DTM (Device Type Manager) according
to FDT (Field Device Tool) - concept (e.g. PACTware)
Description
With its 4 ... 20 mA, 4 ... 20 mA HART®, PROFIBUS® PAor FOUNDATION Fieldbus™ output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX), the DPT-10 is ideally suited to applications requiring these features. The electronics of all of these transmitters, even for the flameproof variant, are intrinsically safe. Thus it is possible to make adjustments on the instrument in EX areas while the instrument is live.
Versatile in application
The DPT-10 is suitable for many industrial measuring requirements, such as flow measurement using differential pressure transducers, level measurement or filter and pump monitoring.
With diaphragm seals fitted, the DPT-10 is also suitable for harsh process conditions. As a result of the available measuring ranges of 0 ... 10 mbar up to 0 ... 40 bar and a static pressure limitation of up to 420 bar, the instrument can be used in almost any application. The internal digital signal processing, combined with proven sensors, guarantees high accuracy and the best long-term stability.
There are seven different housing variants available, and thus, it is possible to select a variant suited to every operating environment. The housing itself can be rotated through 330°, and is available in plastic, aluminium and stainless steel. An electropolished stainless steel housing (316 L) is available to meet the high demands of the food industry and pharmaceutical industry.
Easy configuration and operation Service and configuration at the instrument is carried out using the optional display and operation module, which can be fitted in four positions. The operation menu has a simple and self-explanatory structure and has seven selectable languages as standard. Alternatively, the operating parameters can be set using the PACTware™ free and non-proprietary configuration software. An instrument-specific DTM enables easy integration into a corresponding Distributed
Control Systems.
dzsc/19/4141/19414198.jpg
dzsc/19/4141/19414198.jpg
Process connection
Oval flange, connection 1/4 -18 NPT or RC 1/4 with vent at rear
dzsc/19/4141/19414198.jpg
Housing variants
dzsc/19/4141/19414198.jpg
Accessories
dzsc/19/4141/19414198.jpg
With upstream pressure equalising valves it is possible to avoid unilateral overpressure loadings during both start-up and operation as well as enabling zero point checks during operation. Furthermore, they enable the isolation of the process lines without interference to the running process.
These pressure equalising valves with integrated shut-off valves, and also purge and ventilating valves, in addition enable the venting of the pressure gauge on one or both sides and enable the supply line to be purged.
dzsc/19/4141/19414198.jpg
Model DPT-10 differential pressure transmitters can be adapted to the harshest conditions in the process industry by using diaphragm or diaphragm in-line seals. Thus, the transmitters can be used at extreme temperatures, and with aggressive, corrosive, heterogeneous, abrasive, highly viscous or toxic media. As a result of the wide variety of aseptic connections (such as clamp, threaded pipe or DIN 11 864 aseptic connections) measuring assemblies meet the high demands of sterile
process engineering.
Differential pressure transducers for flow measurement are available as accessories. Depending on the application, the differential pressure transducers are designed as simple push plugs, measuring flange or complete measuring path.
Display and operating module
dzsc/19/4141/19414198.jpg
DTM user interface
dzsc/19/4141/19414198.jpg
Tank volume calculation
dzsc/19/4141/19414198.jpg
- 所属城市：北京 北京市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 仇立新
- 电话：010-56291930
- 传真：010-51669912
- 手机：15910733293
- QQ ：
供应WIKA SL-1 低压测量压力变送器
信息内容：接口尺寸：G1/2 B, G 1/4 B DIN connector A, M12x1（mm） 加工定制：是 防护等级：IP68 测量范围：0-60MBAR（kPa） 类型：WIKA 低压测量压力变送器 SL-1 原装进口压力变送器 压力变送器 防爆等级：IP68 型号：SL-1 测量介质：液体 气体 精度等级：0.5 品牌：WIKA/威卡 输出信号：4-20（mA） 电源电压：10-30（V） 电子式压力测量技术 适用于低压的压力变送器 型号 SL-1 dzsc/19/4141/19414199.jpg 应用 过滤技术 用于塑料和下班工业的吹塑机器 加热,通风和空调设备 特性 压力范围从0.25mbar至0...60mbar 多种工业标准信号输...

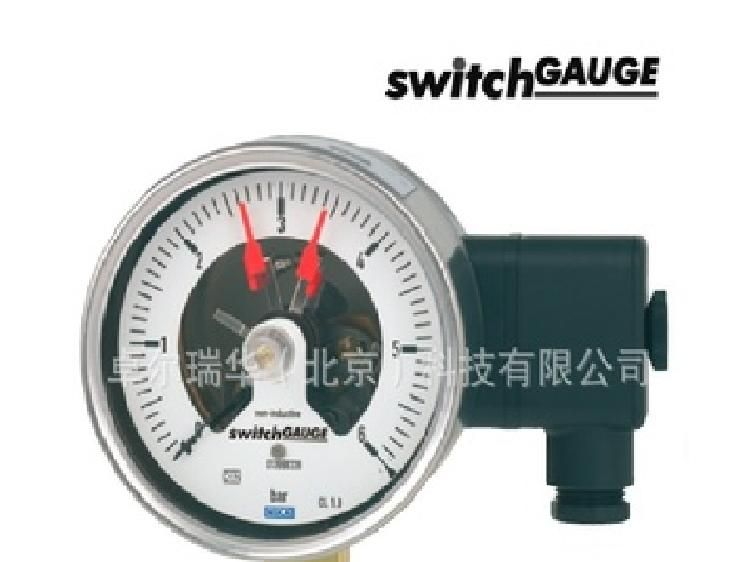

供应WIKA PGS21.100 带开关触点电接点压力表
