供应滤波连接器56-725-003，连接器56-705-003
| 价 格： | 1.08 | |
| 型号/规格： | 56F-725-003 | |
| 品牌/商标： | 美国SCI |
滤波连接器（Spectrum Conyrol）：
Series 700 高性能滤波连接器
应用范围： 电信设备、工控设备，图象工作站，微波TX/RX，基站，电子医疗设备，保安通讯
特点： 优良滤波-滤波形式包括C型滤波器，给底平面设计提供优越的EMI屏蔽效果；
优化设计： 9-50引线和叠状结构可选；
多重选择性： 结构、安装形式、波状金属衬垫、带盖紧固结构、组合滤波形式、镀层等；
可靠性： 连接器的每一针100%经过严格的规范测试，确保整体性能；
FED/MIL认证：UL94V-O、UL/CSA安规认证
特性 插入损耗范围 ： 1M-18GHZ或以上
电容量和温度特性： 5000PF NPO Z5U/X7R
温度范围： -55℃-+125℃
电压植： 1000VDC
电流值 ： 5Amps
型号：56-701-001 ,56-701-002 ,56-701-003 ,56-705-001 ,56-705-002 ,56-705-003 , ,56-705-005 ,56-705-008 ,56-705-009 56-711-003 ,56-711-004 ,56-711-005 ,56-712-005 ,56-712-009 ,56-711-006 ,56-711-023 ,56-725-001 ,56-725-002 ,56-725-003 ,56-725-005 , ,56-725-020 ,
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 贺荣
- 电话：0755-82767282
- 传真：0755-83004913
- 手机：18938672181
- QQ ：

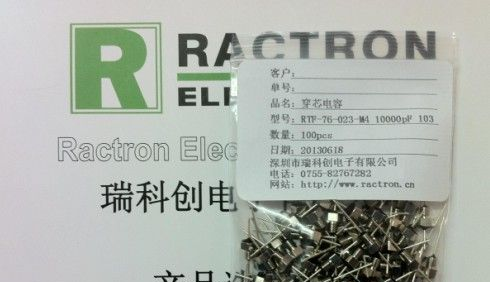

供应穿芯电容M2.5，M3，M4，M5，M6，M8
信息内容：一、 标称容量Capacitance ：10pF,65pF,100pF,470pF,500pF,1000pF,1200pF, 1500pF,1750pF,2000pF,2500pF,2700pF,3000pF,3300pF,4700pF,5000pF,5500pF, 6800pF,7000pF,9000pF,10000pF,0.01μF,0.012μF,0.015μF,0.018μF,0.022μF, 0.025μF,0.027μF,0.028μF,0.045μF,0.050μF,0.056μF,0.075μF,0.08μF, 0.1μF,0.15μF,0.21μF,0.3μF,0.75μF,0.8μF,1μF,0.015μF,0.060μF, 0.062μF,0.150μF,0.200μF,0.250μF,0.250μF,0.300μF,0.450μF,0.500μF, 0.7μF,0.750μF,0.990μF,1.0μF,1.2μF,1.4μF,1.5μF,2.1μF,2.8μF, 4.0μF,5.2μF 101 100pF 331 330pF 471 470pF 102 1000pF 332 3300pF 472 4700pF 103 10000pF 333 33000pF 473 47000pF 1000pF=1nF 1000000pF=1μF 1000nF=1μF 1μF=1000nF=1000000pF 1F=1000000μF 二、工作电流Rated Current ： 0.06A,0.15A,0.25A,0.3A,0.45A,0.5A,1A,2A,3A,4A,5A,10A,15A,25A,30A,50A,100A 三、额定电压Rated Voltage ： 直流：5V,28V,35V,50V,60V,70V,80V,100V,150V,200V,250V,275V 300V,330V,350V,400V,450V,500V,600V,750V,1250V,2500V 交流...
供应厂家直销螺纹穿芯电容
信息内容：馈通滤波器,低通滤波器,穿心电容,焊接式滤波器,树脂密封滤波器,玻璃密封高性能滤波器 一、标称容量： 1000pF=1nF 1000000pF=1μF 1000nF=1μF 1μF=1000nF=1000000pF 1F=1000000μF 二、工作电流： 0.06A,0.15A,0.25A,0.3A,0.45A,0.5A,1A,2A,3A,4A,5A,10A,15A,25A,50A,100A 三、额定电压： 直流：5V,28V,35V,50V,60V,70V,80V,100V,150V,200V,250V,275V 300V,330V,350V,400V,450V,500V,600V,750V,1250V,2500V 交流：70V,85V,90V,115V,125V,140V,200V,220V,230V,240V,330V,350V 四、耐电压： 直流：额定电压的2.5倍 交流：额定电压的6倍的直流电压 五、工作温度： E：-40-+85℃ F：-55-+85℃ G：-55-+125℃ 六、安装方式： H：焊接式 I：螺栓式 七、螺纹直径公制范围： M3,M4,M5,M6,M8,M9,M2.5
