供应AD集成电路ADP3338AKCZ
| 价 格： | 面议 | |
| 型号/规格： | ADP3338AKCZ | |
| 品牌/商标： | AD |
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
VIN = 6.0 V, CIN = COUT = 1 μF, TJ = −40°C to +125°C, unless otherwise noted.
Table 1.
Parameter1, , 23
Symbol
Conditions
Min
Typ
Max
Unit
OUTPUT
Voltage Accuracy
VOUT
VIN = VOUTNOM + 0.4 V to 8 V, IL = 0.1 mA to 1 A, TJ = 25°C
−0.8
+0.8
%
VIN = VOUTNOM + 0.4 V to 8 V, IL = 0.1 mA to 1 A, TJ = −40°C to +125°C
−1.4
+1.4
%
VIN = VOUTNOM + 0.4 V to 8 V, IL = 50 mA to 1 A, TJ = 150°C
−1.6
+1.6
%
Line Regulation
VIN = VOUTNOM + 0.4 V to 8 V, TJ = 25°C
0.04
mV/V
Load Regulation
IL = 0.1 mA to 1 A, TJ = 25°C
0.006
mV/mA
Dropout Voltage
VDROP
VOUT = 98% of VOUTNOM
IL = 1 A
190
400
mV
IL = 500 mA
125
200
mV
IL = 100 mA
70
150
mV
Peak Load Current
ILDPK
VIN = VOUTNOM + 1 V
1.6
A
Output Noise
VNOISE
f = 10 Hz to 100 kHz, CL = 10 μF, IL = 1 A
95
μV rms
GROUND CURRENT
In Regulation
IGND
IL = 1 A
9
30
mA
IL = 500 mA
4.5
15
mA
IL = 100 mA
0.9
3
mA
IL = 0.1 mA
110
190
μA
In Dropout
IGND
VIN = VOUTNOM – 100 mV, IL = 0.1 mA
190
600
μA
1 All limits at temperature extremes are guaranteed via correlation using standard statistical quality control (SQC) methods.
2 Application stable with no load.
3 VIN = 2.7 V for models with VOUTNOM ≤ 2.2 V.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 柯菱
- 电话：0755-83041767/83372015/82716726
- 传真：0755-82716726
- 手机：13510940754
- QQ ：

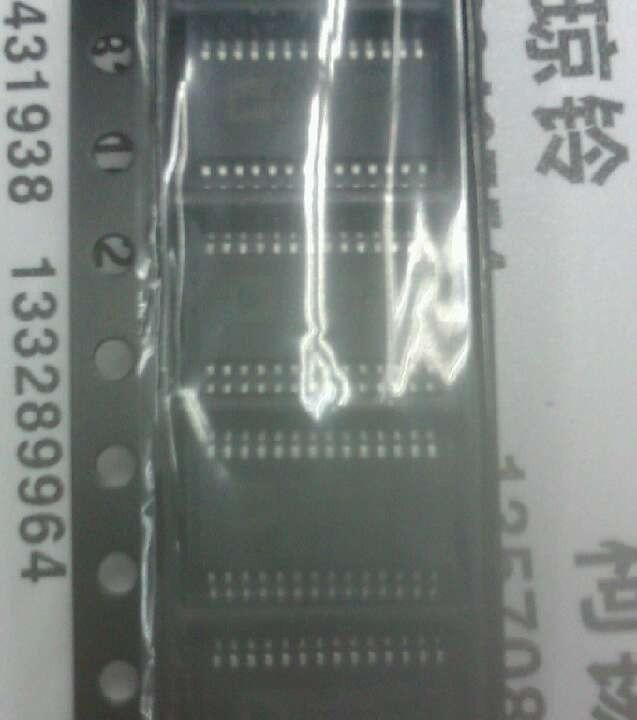

供应AD集成电路AD9762ARUZ
信息内容：Manufacturer: Analog Devices Inc. RoHS: dzsc/19/4023/19402376.gif Details Number of Converters: 1 Number of DAC Outputs: 1 Conversion Rate: 125 MSPs Resolution: 12...

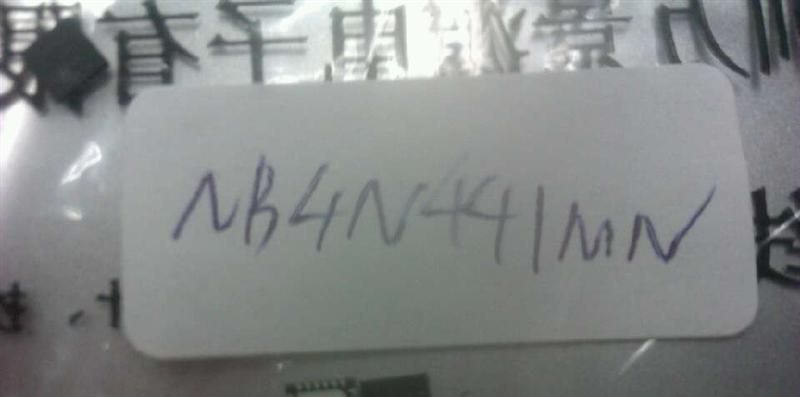

供应集成电路NB4N441MNG
