供应台湾松川继电器 892H-1CH-V 12VDC
| 价 格： | 面议 | |
| 型号/规格： | 892H-1CH-V/12VDC | |
| 品牌/商标： | SONGCHUAN（松川） |
892H-1CH-V-12VDC是转换型继电器，主要用于家电、电表、电气等行业，公司有现货，货源渠道好，价格从优，欢迎寻购！继电器外形的底视图请参考产品图片。
| 外形(长×宽×高) mm | 20 × 10.3 × 16 | |
| 触点形式 | 1A, 1B, 1C | |
| 允许触点电流 (A) | 7A | |
| 触点额定 | 阻性负载 |
892: NO/NC:5A/3A 240VAC, 892H: NO/NC:7A/5A 240VAC |
| 线圈电压 | DC | 3 ~ 60V |
| AC | ------ | |
| 额定功耗 | DC | 0.4W, 0.2W |
| AC | ------ | |
| 预期寿命次数 | 机械 (Min.) | 1×107 |
| 电气 (Min.) | 1×105 | |
| 介质耐压 | 开路触点间 | 1000VAC |
| 触点与线圈间 | 4000VAC | |
| 触点组间 | ||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谢小姐/吴小姐/艾小姐
- 电话：0755-83273749/83176415/83648193
- 传真：0755-83462275
- 手机：13480627520
- QQ ：

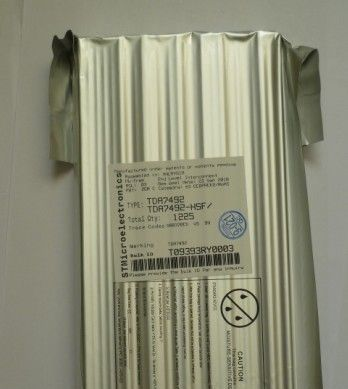

供应 音频功放IC TDA7492
信息内容：50 W + 50 W continuous output power at THD = 10% with RL= 6 Ω and VCC = 25 V 40 W + 40 W continuous output power at THD = 10% with RL= 8 Ω and VCC = 25 V Wide-range single-supply operation (8 - 26 V) High efficiency (η = 90%) Four selectable, fixed gain settings of nominally 21.6 dB, 27.6 dB, 31.1 dB and 33.6 dB Differential inputs minimize common-mode noise Standby and mute features Short-circuit protection Thermal overload protection Externally synchronizable ECOPACK®, environmentally-friendly package

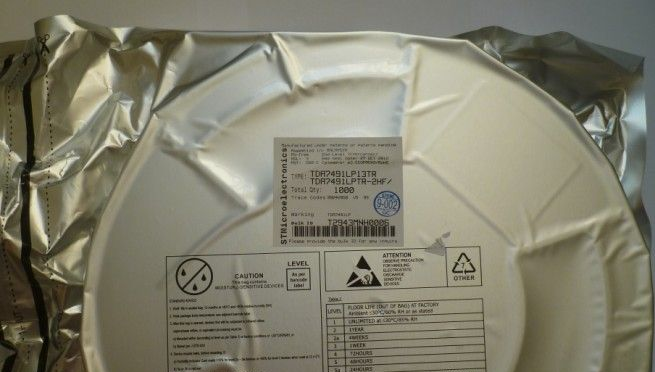

供应 音频功放IC TDA7491LP13TR
信息内容：■ 5 W + 5 W continuous output power: RL = 8 Ω, THD = 10% at VCC = 9 V ■ 5 W + 5 W continuous output power: RL = 4 Ω, THD = 10% at VCC = 6.6 V ■ Wide range single supply operation (5 V - 14 V) ■ High efficiency (η = 90%) ■ Four selectable, fixed gain settings of nominally 20 dB, 26 dB, 30 dB and 32 dB ■ Differential inputs minimize common-mode noise ■ Filterless operation ■ No ‘pop’ at turn-on/off ■ Standby and mute features ■ Short-circuit protection ■ Thermal overload protection ■ Externally synchronizable
