BAZ51 Explosin-proof Ballast (e、ⅡB)
BAZ51 防爆镇流器(e、ⅡB)
|
|
一、适用范围
|
|
1. 爆炸性气体环境危险场所：1区、2区；
2. 可燃性气体、蒸气级别：ⅡA、ⅡB；
3. 温度组别：T1~T4；
4. 户内、户外(IP54，可按用户要求达到IP65)。
1. For the dangerous sites with explosive air mixture:
1 division, 2 division;
2. Flammable gas, steam class: ⅡA、ⅡB;
3. Temperatures classification: T1~T4;
4. Indoor and outdoor (IP54, It could be designed as
Ip65 according to user's requirements).
|
|

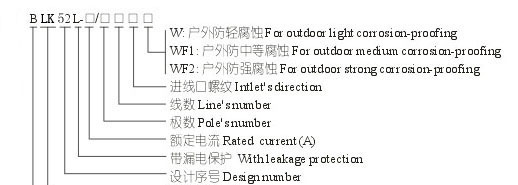

二、型号含义
|
|
|
dzsc/19/3679/19367911.jpg
|
|
|
三、性能特点
1. 铸铝合金压铸外壳，表面喷塑；
2. 可作为防爆汞灯、钠灯、金属卤灯配套产品；
3. 适用于吊灯、立杆式、悬臂灯及路灯用；
4. 按要求做成补偿器。
5. 钢管或电缆布线。
6. 符合GB3836-2000、IEC60079、GB12476.1-2000、
IEC61241标准要求。
1. Diecasted A1-alloy shell with plasic-sprayed surface;
2. Used as the necessary product for explosion-proof
mercury lamp, sodium lamp and metal halogen lamp;
3. Apply to pendant lamp;
4. Can add electricity capacity as required.
5. Steelpipe and cable wiring.
6. Suitable for GB3836-2000,IEC60079, GB12476.1-2000,
IEC61241 standard request.
四、技术参数
|
光源种类
Luminous source sorts
|
功率
Power (W)
|
电压
Voltage (V)
|
防护等级
Protection category
|
防爆标志
Explosion-
proofing maker
|
防腐等级
Corrosion-
proofing grade
|
进线口螺纹
Inlet's
thread
|
电缆外径
Cable's outside
diameter (mm)
|
|
G：汞灯 Mercury lamp
|
125, 175, 250, 400
|
AC220
±10%
|
IP54, IP65
|
Exe Ⅱ T4,
Exd Ⅱ BT4
|
W, WF1, WF2
|
G3/4
|
Φ10~Φ15
|
|
N：钠灯 Sodium lamp
|
70, 100, 110, 150, 250, 400
|
|
L：金属卤灯 Halide
|
100, 150, 175, 250, 400
|
|
|
|
|
|
