供应射频变压器 ADT2-1T-1P+
| 价 格： | 面议 | |
| 型号/规格： | ADT2-1T-1P+ | |
| 品牌/商标： | Mini-Circuits | |
| 包装方式： | 多件包装 | |
| 主要用途： | 精密电子仪器仪表 | |
| 适用电源类别： | 单相 | |
| 铁芯类型： | E型 | |
| 频率特征： | 工频 | |
| 导线类型： | 铜导线 |
ADT2-1T-1P+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 8 to 600 MHz
Maximum Ratings
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 1W
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
PRIMARY DOT 3
PRIMARY 1
SECONDARY DOT 4
SECONDARY 6
SECONARY CT 5
NOT USED 2
Features
• excellent return loss, 15 dB typ.
• excellent amplitude unbalance, 0.1 dB typ. and phase unbalance, 1 deg. typ.
• high RF power up to 1 watt
• aqueous washable
• protected under US patent 6,133,525
Applications
• impedance matching
• baluns
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

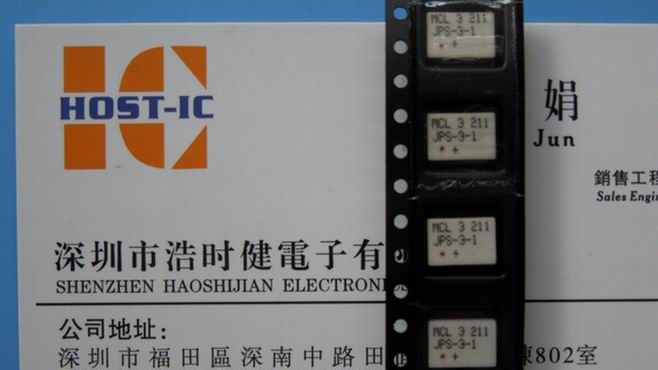

功率分配器 JPS-3-1+
信息内容：Mini-Circuits 功率分配器 JPS-3-1+：3 Way-0° 50Ω 5 to 300 MHz Power Splitter/Combiner Features ● wideband, 5 to 300 MHz ● high isolation, 33 dB typ. ● low insertion loss, 0.3 dB typ. Applications ● VHF ● defense & federal communications ● amateur & FM radio Maximum Ratings ● Operating Temperature： -40ºC to 85ºC ● Storage Temperature： -55ºC to 100ºC ● Power Input (as a splitter) 1W max. ● Internal Dissipation 0.375W max. Mini-Circuits 无论在技术上、服务上还是营销方式上都处于地位，其产品线涵盖了DC～20GHz内的几乎所有器件。产品类别丰富，广泛应用于各种无线通信、有线电视、工业控制、医疗电子、航空雷达等领域。小批量研制到规模化生产灵活的产品策略满足客户各种特殊要求，全方位的技术服务为目前的无线数据通信产业客户提供先进的产品。
供应功率分配器 QCN-19+
信息内容：QCN-19+：功率分配器 Ultra-Small Ceramic Power Splitter/Combiner 2 Way-90° 50Ω 1100 to 1925 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 15W* max Derate linearly to 7W at 100°C ambient.Permanent damage may occur if any of these limits are exceeded Pin Connections SUM PORT 1 PORT 1 (0°) 4 PORT 2 (+90°) 6 GROUND 2,5 50 OHM TERM EXTERNAL 3 Features • low insertion loss, 0.4 dB typ. • high isolation, 26 dB typ. • wrap-around terminal for excellent solderability • ultra small, 0.12"X0.06"X0.035" • patent pending Applications • GPS • PCS/DCS • balanced amplifiers • modulators
