供应射频变压器 ADT8-1T+
| 价 格： | 面议 | |
| 型号/规格： | ADT8-1T+ | |
| 品牌/商标： | Mini-Circuits | |
| 包装方式： | 多件包装 |
ADT8-1T+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 0.1 to 130 MHz
Maximum Ratings
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 0.5W
DC Current 30mA
Pin Connections
PRIMARY DOT 3
PRIMARY 1
SECONDARY DOT 4
SECONDARY 6
SECONDARY CT 5
NOT USED 2
Features
• excellent amplitude unbalance, 0.05 dB typ. in 1 dB bandwidth
• excellent return loss, 20 dB typ. in 1 dB bandwidth
• aqueous washable
• protected under US patent 6,133,525
Applications
• impedance matching
• balanced amplifiers
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应射频变压器 ADT4-6+
信息内容：ADT4-6T+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 0.06 to 300 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 3 PRIMARY 1 SECONDARY DOT 4 SECONDARY 6 SECONDARY CT 5 NOT USED 2 Features • excellent amplitude unbalance, 0.1 dB typ.in 1 dB bandwidth • excellent return loss, 24 dB typ. in 1 dB bandwidth • aqueous washable • protected under US patent 6,133,525 Applications • impedance matching • balanced amplifiers

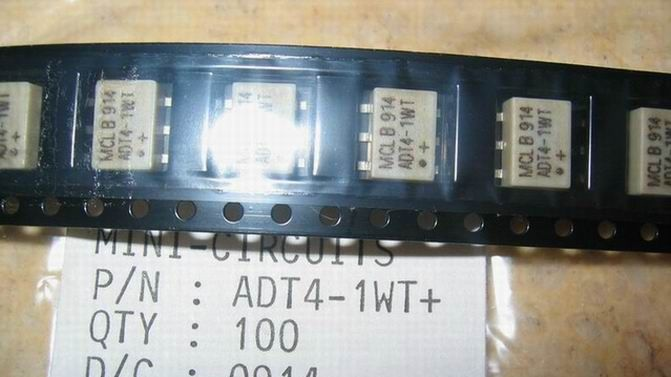

供应射频变压器 ADT4-1WT+
信息内容：ADT4-1WT+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 2 to 775 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 3 PRIMARY 1 SECONDARY DOT 4 SECONDARY 6 SECONARY CT 5 NOT USED 2 Features • excellent return loss, 20 dB typ. in dB bandwidth • excellent amplitude unbalance, 0.1 dB typ.and phase unbalance, 1 deg. typ. in 1 dB bandwidth • aqueous washable • protected under US patent 6,133,525 Applications • impedance matching • baluns
