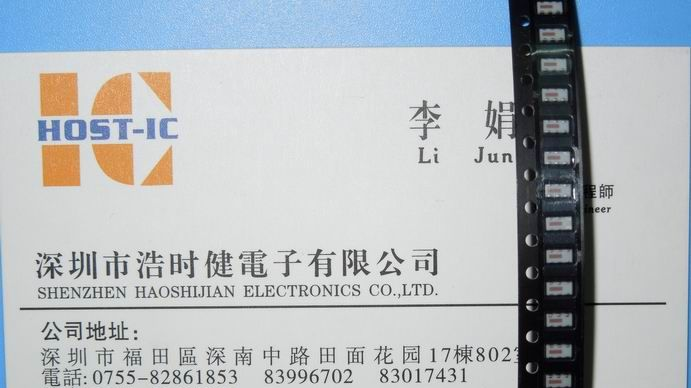

供应功率分配器 SCN-2-15+
| 价 格： | 面议 | |
| 型号/规格： | SCN-2-15+ | |
| 品牌/商标： | Mini-Circuits |
SCN-2-15+：Mini-Circuits 功率分配器 Ultra-Small Ceramic Power Splitter/Combiner 2 Way-0° 50Ω 1100 to 1450 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 20W* max.
*Derate linearly to 6W at 100°C ambient.
Permanent damage may occur if any of these limits are exceeded
Pin Connections
SUM PORT 2
PORT 1 6
PORT 2 4
GROUND 1,3,5
PORT 1-2 resistor external 100 OHMS
Features
• isolation resistor, external 100 ohms
• low insertion loss, 0.4 dB typ.
• excellent amplitude unbalance, 0.2 dB typ.
• excellent phase unbalance, 1.5 deg. typ.
• high isolation, 25 dB typ.
• excellent power handling, 20W as splitter
• small size, 0.12”X0.06”X0.035”
• ESD non-sensitive
• temperature stable LTCC technology
• wrap around terminations for excellent solderability
• low cost
• protected by US patent 6,967,544
Applications
• satellite distribution
• GPS
浩时健电子理经销ADI、、Hittite、 M/A-COM、MINI-Circuits、MSI、Z-COM等数十种国外高科技半导体公司产品,这些产品广泛用于高科技的航空、航天、邮电、军工、通信、工业控制以及消费电子产品领域;并利用所代理的产品为客户研制和开发各种通信产品,包括语音信箱、用户接口板、无线数字扩频设备、微波、光纤直放站等设备。Mini-Circuits产品类别丰富，广泛应用于各种无线通信、有线电视、工业控制、医疗电子、航空雷达等领域。小批量研制到规模化生产灵活的产品策略满足客户各种特殊要求，全方位的技术服务为目前的无线数据通信产业客户提供先进的产品。
备注：本司长期现货供应型号：
ROS-4300-1PH19+ ROS-4403-119+ ROS-4720-119+ ROS-5150-119+ ROS-5150-319+ ROS-5490C-119+ ROS-5580-119+ ROS-5776-119+ ROS-6030C-219+ ROS-6740C-119+ ROSE-50 RPD-1+ RPD-2 RPQ-820 RPQ-1495 RPS-2-30+ RSW-2-25P RVA-800+ RVA-2000+ RVA-2500 RVA-3000+ SALF-78 SALF-116 SALF-146 SALF-265 SALF-325 SALF-396 SALF-490 SALF-580 SALF-680 SALF-800 SALF-865 SAM-1+ SAY-1 SAY-11 SBA-2-14 SBA-2-18 SBA-2-20 SBA-2-22 SBB-2-10 SBB-2-13 SBB-2-18 SBB-2-21W SBB-2-23 SBD-4-25 SBL-1+ SBL-1-1+ SBL-1MH+ SBL-1X+ SBL-1XLH+ SBL-1ZMH SBL-2LH+ SBL-3+ SBL-11+ SBLP-39 SBLP-117+ SBLP-156 SBLP-200+ SBLP-300 SBLP-467 SBLP-933 SBLP-1870 SBP-10.7+ SBP-21.4 SBP-30+ SBP-60+ SBP-70 SBTC-2-10+ SBTC-2-10-75+ SCN-2-11+,SCN-2-15+,SCN-2-19+,SCN-2-22+,SCN-2-27+,SCN-2-35+,SCN-2-45+,SCN-2-65+,SCN-3-13+,SCN-3-16+,SCN-3-28+,PLP-1.9+,PLP-10.7+,PLP-10.7-75+,PLP-100+,PLP-100-75+,PLP-1000+,PLP-1200+,PLP-15+,PLP-15-75+,PLP-150+,PLP-2.5+,PLP-200+,PLP-21.4+,PLP-21.4-75+,PLP-250+,PLP-30+,PLP-30-75+,PLP-300+,PLP-450+,PLP-5+,PLP-50+,PLP-550+,PLP-600+,PLP-600-750+,PLP-7-75+,PLP-750+,PLP-800+,PLP-850+,PLP-90+,LFCN-1000+,LFCN-1000D+,LFCN-105+,LFCN-120+,LFCN-1200+,LFCN-1200D+,LFCN-1325+,LFCN-1400+,LFCN-1400D+,LFCN-1450+,LFCN-1500+,LFCN-1500D+,LFCN-1525+,LFCN-1575+,LFCN-160+,LFCN-1700+,LFCN-1700D+...
