供应低通滤波器 PLP-70+
| 价 格： | 面议 | |
| 型号/规格： | PLP-70+ | |
| 品牌/商标： | Mini-Circuits |
PLP-70+：Mini-Circuits 低通滤波器 Plug-In Low Pass Filter 50Ω DC to 60 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power Input 0.5W max.
Permanent damage may occur if any of these limits are exceeded
Pin Connections
INPUT 1
OUTPUT 8
GROUND 2,3,4,5,6,7
CASE GROUND 2,3,4,5,6,7
Features
• rugged welded case, hermetic
• other standard and custom PLP models available with wide selection of fco
Applications
• test equipment
• lab use
• transmitters/receivers
• military/hi-rel applications
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

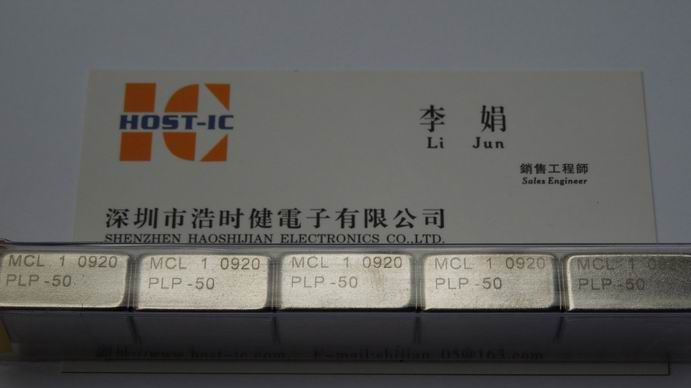

供应低通滤波器 PLP-50+
