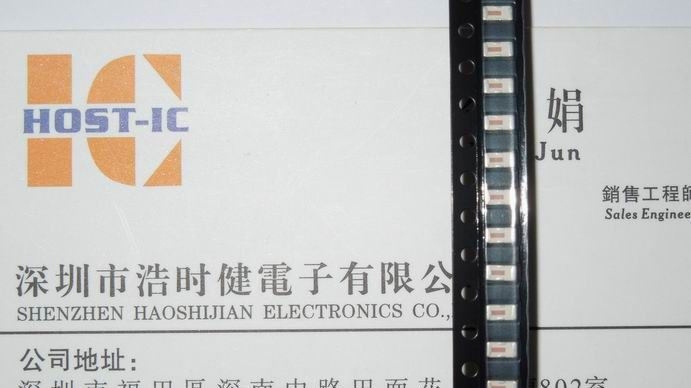

供应功率分配器 ADP-2-20-75+
| 价 格： | 面议 | |
| 型号/规格： | ADP-2-20-75+ | |
| 品牌/商标： | Mini-Circuits |
ADP-2-20-75+：Mini-Circuits 功率分配器 Surface Mount Power Splitter/Combiner 2 Way-0° 75Ω 5 to 2000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 0.5W max.
Internal Dissipation 0.25W max.
Permanent damage may occur if any of these limits are exceeded
Pin Connections
SUM PORT 1
PORT 1 3
PORT 2 4
GROUND 6
NOT USED 2,5
Features
• wide bandwidth, 5 to 2000 MHz
• low insertion loss, 0.5 dB typ.
• excellent amplitude unbalance, 0.05 dB typ.
• excellent phase unbalance, 0.5 deg. typ.
• aqueous washable
• protected under U.S. Patent 6,133,525
Applications
• instrumentation
• PCS/cellular
Mini-Circuits：主要产品
Mini-Circuits产品类别丰富，广泛应用于各种无线通信、有线电视、工业控制、医疗电子、航空雷达等领域。小批量研制到规模化生产灵活的产品策略满足客户各种特殊要求，全方位的技术服务为目前的无线数据通信产业客户提供先进的产品。
备注：本司长期现货供应型号：
ADP-2-1+,ADP-2-10+,ADP-2-10-75+,ADP-2-10-75M+,ADP-2-10W-75+,ADP-2-1W+,ADP-2-20+,ADP-2-20-75+,ADP-2-4+,ADP-2-9+,ADPQ-2-250+...
