供应功率分配器 SCN-2-11+
| 价 格： | 面议 | |
| 型号/规格： | SCN-2-11+ | |
| 品牌/商标： | Mini-Circuits |
SCN-2-11+：Mini-Circuits 功率分配器 Ultra-Small Ceramic Power Splitter/Combiner 2 Way-0° 50Ω 800 to 1175 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
Power Input (as a splitter) 20W* max.
*Derate linearly to 6W at 100°C ambient.Permanent damage may occur if any of these limits are exceeded
Pin Connections
SUM PORT 2
PORT 1 6
PORT 2 4
GROUND 1,3,5
PORT 1-2 resistor external 100 OHMS
Features
• isolation resistor, external 100 ohms
• low insertion loss, 0.5 dB typ.
• excellent amplitude unbalance, 0.1 dB typ.
• excellent phase unbalance, 1.0 deg. typ.
• high isolation, 22 dB typ.
• excellent power handling, 20W as splitter
• small size, 0.12”X0.06”X0.035”
• ESD non-sensitive
• temperature stable LTCC technology
• wrap around terminations for excellent solderability
• low cost
• protected by US patent 6,967,544
Applications
• GSM
• ISM
• cellular
Mini-Circuits：主要产品
Mini-Circuits产品类别丰富，广泛应用于各种无线通信、有线电视、工业控制、医疗电子、航空雷达等领域。小批量研制到规模化生产灵活的产品策略满足客户各种特殊要求，全方位的技术服务为目前的无线数据通信产业客户提供先进的产品。
备注：本司长期现货供应型号：
SCN-2-11+,SCN-2-15+,SCN-2-19+,SCN-2-22+,SCN-2-27+,SCN-2-35+,SCN-2-45+,SCN-2-65+,SCN-3-13+,SCN-3-16+,SCN-3-28+,PLP-1.9+,PLP-10.7+,PLP-10.7-75+,PLP-100+,PLP-100-75+,PLP-1000+,PLP-1200+,PLP-15+,PLP-15-75+,PLP-150+,PLP-2.5+,PLP-200+,PLP-21.4+,PLP-21.4-75+,PLP-250+,PLP-30+,PLP-30-75+,PLP-300+,PLP-450+,PLP-5+,PLP-50+,PLP-550+,PLP-600+,PLP-600-750+,PLP-7-75+,PLP-750+,PLP-800+,PLP-850+,PLP-90+,LFCN-1000+,LFCN-1000D+,LFCN-105+,LFCN-120+,LFCN-1200+,LFCN-1200D+,LFCN-1325+,LFCN-1400+,LFCN-1400D+,LFCN-1450+,LFCN-1500+,LFCN-1500D+,LFCN-1525+,LFCN-1575+,LFCN-160+,LFCN-1700+,LFCN-1700D+...
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

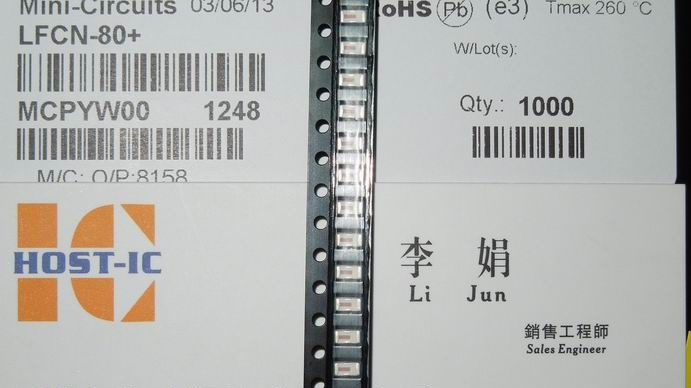

供应低通滤波器 LFCN-80+
信息内容：LFCN-80+：Mini-Circuits低通滤波器 Ceramic Low Pass Filter 50Ω DC to 80 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input* 8.5W max. at 25°C Passband rating, derate linearly to 3.5W at 100°C ambient. Permanent damage may occur if any of these limits are exceeded Pin Connections RF IN 1 RF OUT 3 GROUND 2,4 Features • excellent power handling, 8.5W • small size • 7 sections • temperature stable • LTCC construction • protected by U.S. Patent 6,943,646 Applications • harmonic rejection • VHF/UHF transmitters/receivers Mini-Circuits：主要产品 Mini-Circuits产品类别丰富，广泛应用于各种无线通信、有线电视、工业控制、医疗电子、航空雷达等领域。小批量研制到规模化生产灵活的产品策略满足客户各种特殊要求，全方位的技术服务为目前...

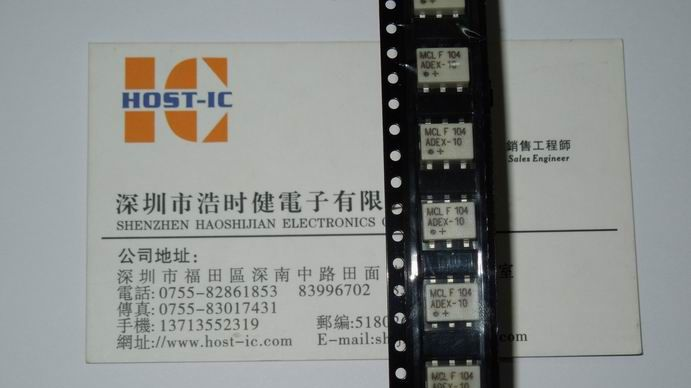

供应混频器 ADEX-10+
信息内容：ADEX-10+：Mini-Circuits混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 10 to 1000 MHz Maximum Ratings： Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA PCB Land Pattern Suggested Layout, Tolerance to be within ± .002 Permanent damage may occur if any of these limits are exceeded Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5 Features • excellent L-R isolation, 60 dB typ. • flat conversion loss, ±0.2dB typ over entire band • low conversion loss, 6.8 dB typ. • good VSWR, 2:1 typ. for LO, 1.4:1typ. for RF, 1.8:1 typ. for IF • good performance to 1500 MHz • aqueous washable • protected by U.S. Patents 6,133,525 and 6,947,717 Applications • cellular • PCN Mini-Circuits公司目前已经成为世界范围内规模的射频...
