供应Mini-Circuits混频器 ADE-12+
| 价 格： | 面议 | |
| 型号/规格： | ADE-12+ | |
| 品牌/商标： | Mini-Circuits |
ADE-12+：Mini-Circuits 混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 50 to 1000 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 50mW
IF Current 40mA
PCB Land Pattern
Suggested Layout,
Tolerance to be within ± .002
Permanent damage may occur if any of these limits are exceeded
Pin Connections
LO 6
RF 4
IF 3
GROUND 1,2,5
Features
• low conversion loss, 7.0 dB typ.
• excellent IP3, 17 dBm typ.
• low profile package
• aqueous washable
• protected by U.S. Patent 6,133,525
Applications
• cellular
• VHF/UHF
Mini-Circuits：主要产品
混频器、功分器/合路器、阻抗变换器、衰减器、匹配负载、变压器、电缆、转接头、隔直模块、 功率检波器、放大器、调制器/解调器、定向耦合器、相位检波器、线延伸器、限幅器、倍频器、压控振荡器、偏置器、扼流圈、移相器、滤波器、开关。
备注：本司长期现货供应型号：
ADE-1+,ADE-2+,ADE-4+,ADE-5+,ADE-6+,ADE-12+,ADE-13+,ADE-14+,ADE-20+,ADE-30+,ADE-35+,ADE-10H+,ADE-10MH+,ADE-11X+,ADE-12H+,ADE-12MH+,ADE-17H+,ADE-18W+,ADE-1ASK+,ADE-1H+,ADE-1HW+,ADE-1L+,ADE-1LH+,ADE-1MH+,ADE-25MH+,ADE-2ASK+,ADE-2M+,ADE-30W+,ADE-35MH+,ADE-42MH+,ADE-901+,ADE-92+,ADE-92MH+...
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应混频器 ADE-2ASK+
信息内容：ADE-2ASK+：Mini-Circuits 混频器 Surface Mount Frequency Mixer Level 7 (LO Power +7 dBm) 1 to 1000 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5 Features • low conversion loss, 5.4 dB typ. • excellent L-R isolation, 45 dB typ. • low profile package • aqueous washable • protected by U.S. Patent 6,133,525 Applications • VSAT systems • instrumentation • cellular Mini-Circuits：主要产品 混频器、功分器/合路器、阻抗变换器、衰减器、匹配负载、变压器、电缆、转接头、隔直模块、 功率检波器、放大器、调制器/解调器、定向耦合器、相位检波器、线延伸器、限幅器、倍频器、压控振荡器、偏置器、扼流圈、移相器、滤波器、开关。 ...

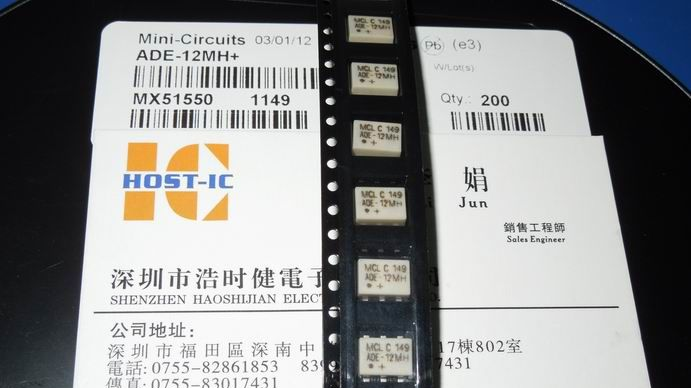

供应混频器 ADE-12MH+
信息内容：ADE-12MH+：Surface Mount Frequency Mixer Level 13 (LO Power +13 dBm) 10 to 1200 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5 Features • low conversion loss, 6.3 dB typ. • good L-R isolation, 45 dB typ.;L-I isolation, 42 dB typ. • low profile package • aqueous washable • protected by U.S. Patent 6,133,525 Applications • cellular • VHF/UHF receivers Mini-Circuits公司目前已经成为世界范围内规模的射频/中频和微波器件生产厂商之一。其总部设于纽约，在美国加州、弗罗里达州以及英国、以色列、印度、马来西亚和中国等地都设有研发机构或生产厂。Mini-Circuits 无论在技术上、服务上还是营销方式上都处于地位，其产品线涵盖了DC～20GHz内的几乎所有器件。Mini-Circuits公...
