霍克蓄电池VM系列
| 价 格： | 面议 | |
| 型号/规格： | 霍克蓄电池VM系列 | |
| 品牌/商标： | 霍克蓄电池VM系列 |
The PowerSafe™ VM range offers the ideal solution for large capacity, valve regulated lead acid battery requirements. PowerSafe VM’s modular design concept, with its integral racking system, provides a cost effective compact battery solution combined with a quick, simple on site installation process. PowerSafe VM’s extra thick positive grids provide excellent performance and service life across an extensive range of applications including, telecommunications, power generation/distribution sites...........The PowerSafe™ VM range offers the ideal solution for large capacity, valve regulated lead acid battery requirements. PowerSafe VM’s modular design concept, with its integral racking system, provides a cost effective compact battery solution combined with a quick, simple on site installation process. PowerSafe VM’s extra thick positive grids provide excellent performance and service life across an extensive range of applications including, telecommunications, power generation/distribution sites, both low and high rate UPS and emergency lighting.
PowerSafe VM’s utilise the proven AGM gas recombination technology, removing the need for the addition of water to any cell throughout its operational life, which provides for battery solutions not requiring a separate battery room and only minimal maintenance.
Features & Benefits
•Capacity range: 200Ah - 5000Ah
•Side or top terminations depending on configuration
•Front connections provide excellent maintenance access
•UL94 V-0 rated flame retardant container and lid as standard
•100% nominal C10 capacity check prior to dispatch
•Proven in service
Construction
•Extra thick lead-tin-calcium positive grids to minimise corrosion and prolong service life
•Balanced lead-calcium negative grids to optimise recombination efficiency
•Separator in low resistance microporous fibre glass material within which the electrolyte is fully absorbed, thus preventing acid spills in the case of accidental damage
•Container and heat sealed lid in UL94 V-0 rated flame retardant polypropylene as standard
•Cells housed in steel modules complete with integral racking system
•Seismic Zone 4 UBC 1997 approved racking, optional on many configurations
•Terminals with a large surface area copper insert to provide maximum conductivity
•Ring burn terminal seal with secondary epoxy resin seal, 100% factory tested and proven in service
•Self regulating pressure relief valve with integral flame arrestor
Installation & Operation
•Recommended float charge voltage: 2.280Vpc at 20°C, 2.265Vpc at 25°C
•The PowerSafe VM range is designed for horizontal installation and can be installed safely within equipment rooms. A separate dedicated battery room is not necessary
•Six month shelf life at 20°C
•Minimal maintenance: no addition of water required
Standards
•Compliant with international standard IEC 60896-2
•Classified as "Long Life" according to Eurobat Guide 1999
•Approved to be shipped as non-hazardous cargo in accordance with the requirements of IMDG (International Maritime Code for Dangerous Goods) and OICA (Organisation of International Civil Aviation)
•UL recognised component
•ALL cells are proven to have 100% of rated C10 capacity in the factory prior to dispatch
•Manufactured in EnerSys production facilities that are certified to ISO 9001:2000
General Specifications
|
Type |
Nominal Voltage(v) |
Nominal Capacity(Ah) |
Nominal Dimensions |
Typical Weight(3) |
Short Circuit Current (A) |
Internal Resistance (mΩ) |
||||||||||||||||
|
10 hr rate To 1.80Vpc @20℃ |
8 hr rate To 1.75Vpc @77oF |
Length |
Depth(1) |
Height(2) |
||||||||||||||||||
|
mm |
in |
mm |
in |
mm |
in |
kg |
lbs |
|||||||||||||||
|
12VM-200 |
12 |
200 |
200 |
665 |
26.2 |
330 |
13.0 |
218 |
8.6 |
108 |
238.1 |
2746 |
4.370 |
|||||||||
|
12VM-300 |
12 |
300 |
300 |
893 |
35.2 |
330 |
13.0 |
218 |
8.6 |
158 |
348.3 |
3882 |
3.090 |
|||||||||
|
12VM-400 |
12 |
400 |
400 |
843 |
33.2 |
516 |
20.3 |
218 |
8.6 |
204 |
449.7 |
4050 |
2.950 |
|||||||||
|
12VM-500 |
12 |
500 |
500 |
957 |
37.7 |
516 |
20.3 |
218 |
8.6 |
239 |
526.9 |
5180 |
2.310 |
|||||||||
|
12VM-600 |
12 |
600 |
580 |
1071 |
42.2 |
516 |
20.3 |
218 |
8.6 |
281 |
619.5 |
6090 |
1.970 |
|||||||||
|
6VM-850 |
6 |
850 |
840 |
801 |
31.5 |
516 |
20.3 |
218 |
8.6 |
203 |
447.5 |
7980 |
0.750 |
|||||||||
|
6VM-1000 |
6 |
1000 |
1000 |
915 |
36.0 |
516 |
20.3 |
218 |
8.6 |
234 |
515.9 |
9275 |
0.640 |
|||||||||
|
6VM-1000A |
6 |
1000 |
1000 |
801 |
31.5 |
584 |
23.0 |
218 |
8.6 |
235 |
518.1 |
7212 |
0.832 |
|||||||||
|
6VM-1100 |
6 |
1100 |
1080 |
972 |
38.3 |
516 |
20.3 |
218 |
8.6 |
255 |
562.2 |
9673 |
0.620 |
|||||||||
|
6VM-1200 |
6 |
1200 |
1200 |
915 |
36.0 |
584 |
23.0 |
218 |
8.6 |
269 |
593.0 |
8219 |
0.730 |
|||||||||
|
6TM-1300 |
6 |
1300 |
1300 |
972 |
38.3 |
584 |
23.0 |
218 |
8.6 |
287 |
632.7 |
8571 |
0.700 |
|||||||||
|
6VM-1360 |
6 |
1360 |
1360 |
1145 |
45.1 |
516 |
20.3 |
218 |
8.6 |
316 |
696.6 |
10453 |
0.570 |
|||||||||
|
6VM-1500 |
6 |
1500 |
1500 |
915 |
36.0 |
558 |
21.0 |
278 |
10.9 |
359 |
791.4 |
10733 |
0.560 |
|||||||||
|
6VM-1600 |
6 |
1600 |
1600 |
1145 |
45.1 |
584 |
23.0 |
218 |
8.6 |
369 |
813.5 |
11057 |
0.540 |
|||||||||
|
6VM-1700 |
6 |
1700 |
1640 |
972 |
38.3 |
558 |
21.0 |
278 |
10.9 |
386 |
850.9 |
11215 |
0.535 |
|||||||||
|
4VM-2000 |
4 |
2000 |
2000 |
791 |
31.1 |
558 |
21.0 |
278 |
10.9 |
307 |
676.8 |
17467 |
0.229 |
|||||||||
|
2VM-2600 |
2 |
2600 |
2600 |
676 |
26.6 |
584 |
23.0 |
218 |
8.6 |
196 |
432.1 |
17391 |
0.115 |
|||||||||
|
2VM-3000A |
2 |
3000 |
3000 |
801 |
31.5 |
584 |
23.0 |
218 |
8.6 |
235 |
518.1 |
22222 |
0.090 |
|||||||||
|
2VM-3000 |
2 |
3000 |
3000 |
638 |
25.1 |
558 |
21.0 |
278 |
10.9 |
245 |
540.1 |
21978 |
0.091 |
|||||||||
|
2VM-3600 |
2 |
3600 |
3600 |
915 |
36.0 |
584 |
23.0 |
218 |
8.6 |
369 |
813.5 |
25000 |
0.080 |
|||||||||
|
2VM-4000 |
2 |
4000 |
4000 |
791 |
31.1 |
558 |
21.0 |
278 |
10.9 |
307 |
676.8 |
26667 |
0.075 |
|||||||||
|
2VM-4500 |
2 |
4500 |
4500 |
915 |
36.0 |
558 |
21.0 |
278 |
10.9 |
359 |
791.4 |
32780 |
0.061 |
|||||||||
|
2VM-5000 |
2 |
5000 |
4920 |
972 |
38.3 |
558 |
21.0 |
278 |
10.9 |
386 |
850.9 |
34483 |
0.058 |
|||||||||
Notes:
1)The depth shown in the table is for the module only .Add 86mm to obtain the overall depth including the front panel.
2)To calculate the total height of a battery stack multiply the module height by the number of modules in the stack add 100mm for the base support except for the VM-1500,1700,2000,3000,4000,4500 and 5000 modules where 120mm must be added.
3)The typical weight of the module excludes the connectors,terminal plates, front panels and base support.
4)PowerSafe VM batteries are designed for horizontal installation only.
5)The excellent flexibility afforded by the modular construction design provides for further combinations of capacity,voltage or footprint in addition to those illustrated in the above tabulation,eg 2VM-3200, 2VM-4800, 4VM-1000,4VM-1700 etc.
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 蔡小姐
- 电话：020-84393810
- 传真：-
- 手机：
- QQ ：
霍克蓄电池NPGEL系列
信息内容：dzsc/19/3445/19344570.jpg 英国霍克蓄电池Genesis NPGEL系列 一、英国霍克蓄电池Genesis NPGEL系列简介： 适用于 ：通信、电力、金融、石化、冶金、地铁、会展、太阳能、数据中心等领域 。 英国HAWKER（霍克?）胶体密封铅酸蓄电池采用了独特的胶体技术，使电解液固定在胶质中，实现了电池中无流动电解液；同时由于电解液含量明显多于AGM贫液式电池，接近富液式电池，胶体电池表现出优越的浮充性能，更能适合长寿命备用电源领域使用。 二、英国霍克蓄电池Genesis NPGEL系列内部结构： ● 电解液 优质胶体电解液，浓度分布均匀，不存在酸液分层现象。电池内部无游离电解液，因此电池不会漏液。电解液密度较低，为1.24g/ml，对极板腐蚀弱，电池寿命长； ● ABS外壳 高强度ABS外壳，一般碰撞或过充情况下不会破损变形； ● 安全阀 防火阻燃安全阀有效阻止外部明火点燃内部气体； ● 铜制极柱 低内阻的铜制极柱确保大电流安全放电而不发热； ● 正极芯螺纹 正极芯棒上设计有突起的螺纹，增大活性物质附着力，防止活性物质脱落，增大附着面积，提高大电流放电能力...
英国霍克免维护AX铅酸蓄电池

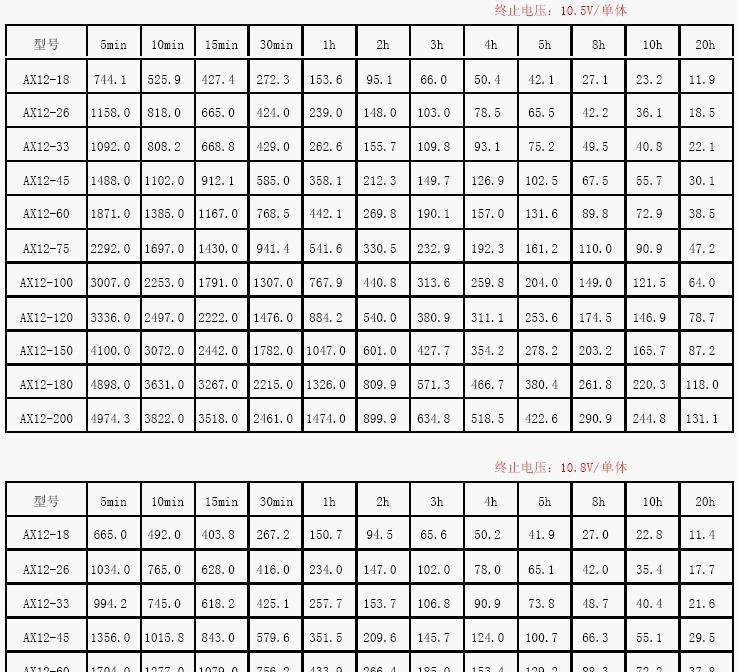

信息内容：dzsc/19/3446/19344611.jpg 免维护AX铅酸蓄电池 本系列电池严格遵循国际电池标准生产，不仅加强了深循环放电和快速充电的能力，而且也提高了使用的安全性和可靠性。 免维护AX铅酸蓄电池遵循标准 ● 产品设计符合国际标准IEC 60896/21-22 ● 按照1999年发布的欧洲电池商会(Eurobat)指引,本系列产品属于"长寿命"类别 ● 符合Telcordia SR-4228标准 ● 获得UL认证(UL标准1989) ● 根据美国《DOT 条例49》及国际民航组织ICAO和国际航空 ● 运输协会IATA《包装指示806》，被批准为适于海陆空运输的非危险品 ● 由获得ISO 9001:2000标准认证及ISO 14001:2004认证霍克工厂生产 免维护AX铅酸蓄电池规格型号和技术参数 dzsc/19/3446/19344611.jpg 《FordTM移动式机械振动测试标准》 测试方向 移动频率(Hz) 加速度(g) 持续时间（min） 垂直（Z轴） 10-12 ...
