价 格: | 面议 | |
接口类型: | ZIF | |
接触件材质: | Copper alloy | |
种类: | FFC/FPC | |
加工定制: | 是 | |
形状: | 条形 | |
应用范围: | 显示屏 | |
型号/规格: | FFC/FPC 连接器 | |
特性: | 阻火/阻燃 | |
品牌/商标: | Cvilux | |
绝缘体材质: | High temperature plastic | |
支持卡数: | 二合一 | |
读卡类型: | CF | |
制作工艺: | 注塑 |
产品描述:
◎ Current rating : 0.5A DC/50V AC/DC
◎ Dielectric Withstanding Voltage : 500 V AC for one minute
◎ Contact Resistance : <40mΩ(Initial),<80mΩ(final)
◎ Insulation Resistance : >500MΩ
◎ Operating Temperature : -40℃~85℃
◎ Storage Temperature : -40℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen Free
CIRCUITS:04 to 40 CIRCUTS
Plating Code:2= Gold Flash Plated over Nickel
Product Drawings:
dzsc/19/3396/19339671.jpg
dzsc/19/3396/19339671.jpg
dzsc/19/3396/19339671.jpg
dzsc/19/3396/19339671.jpg
产品描述 :◎ Rated Current and Voltage : 0.3A , 50V AC(r.m.s)◎ Dielectric Withstanding Voltage : 250V AC for one minute◎ Contact Resistance : <50mΩ◎ Insulation Resistance : >50MΩ◎ Operating Temperature : -25℃~85℃◎ RoHS Compliant◎ Lead Free Process CIRCUITS:11, 15, 17, 21, 23, 25, 27, 31, 33, 35, 37, 39, 45 CIRCUTS Plating Code:2= Gold flash over Nickel

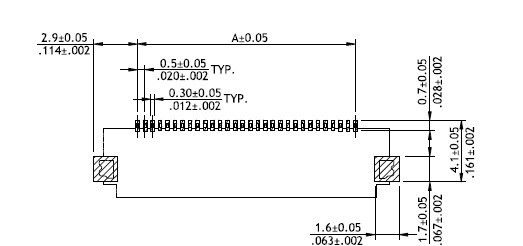

产品描述:◎ Current rating : 0.5A DC/50V AC◎ Dielectric Withstanding Voltage : 500 V AC for one minute◎ Contact Resistance : <20mΩ(Initial),<40mΩ(final)◎ Insulation Resistance : >500MΩ◎ Operating Temperature : -40℃~85℃◎ Storage Temperature : -40℃~85℃◎ RoHS Compliant◎ Lead Free Process◎ Halogen Free CIRCUITS:20 to 60 CIRCUTSPlating Code:1= Matte Tin Plated over Nickel 2= Gold Flash Plated over Nickel Product Drawings:dzsc/19/3418/19341891.jpgdzsc/19/3418/19341891.jpgdzsc/19/3418/19341891.jpgdzsc/19/3418/19341891.jpg
