供应535NM-540NM 贴片3528 绿色 3528 535nm SMD 医疗产品用
| 价 格： | 面议 | |
| 颜色： | 绿色 | |
| 胶体品牌： | 道康宁 | |
| 金线材料： | 金线 | |
| 种类： | 发光二极管 | |
| 加工定制： | 是 | |
| 形状： | 方片 | |
| 绿色： | 535 | |
| 封装形式： | 贴片型 | |
| 型号/规格： | XL3528UPGC535 | |
| 芯片品牌： | 进口 | |
| 适用范围： | 特种照明 | |
| 品牌/商标： | Sealand | |
| 单芯片功率： | 0.06（W） |
dzsc/19/3339/19333995.jpg

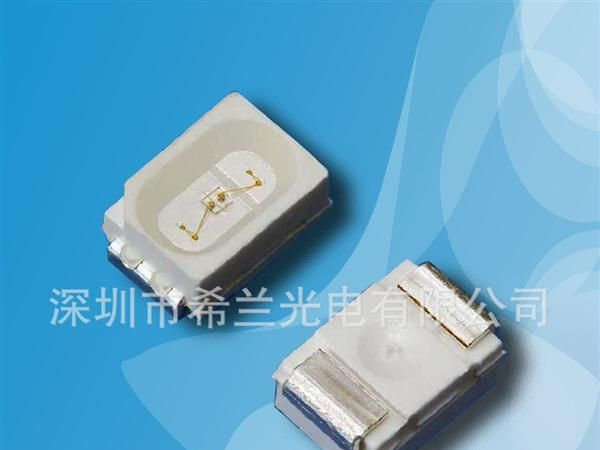

3528 535nm SMD LED
应用prications
电子设备的指示和背光
directives and backlight for Electronic products
各类光源应用
Light pipe application.
生长灯
Grow light
光电设备的信号传输
signal transmission of Photoelectric equipment
医疗设备
Medical equipment
LED特种光源
LED special wavelength light sources
Absolute Maximum Rating (Ta=25℃)
Item | Symbol | Value | Unit |
DC forward current | IF | 20 | mA |
Pulse forward current | IFP | 100 | mA |
Power dissipation | PD | 110 | mW |
Operating temperature | Topr | -40~ 85 | ℃ |
Storage temperature | Ystg | -40~ 80 | ℃ |
Reverse voltage | VR | 5 | V |
Sold soldering temperature | Tsol | 260℃/3Sec | --- |
Plus with Max 10ms,duty ratio max1/10
n Initial Electrical/Optical Characteristics (Ta=25℃)
Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | I=20mA | 3.0 | 3.2 | 3.5 | V |
DC reverse Current | IR | V=5V | ---- | ---- | 10 | μA |
Dominant Wavelength | λd | I=20mA |
| 530 |
|
|
Peak Wavelength | λP | I=20mA | 535 |
| 540 | nm |
Spectrum Radiation Bandwidth | Δλ | I=20mA | ---- | 35 | ---- | Nm |
Luminous Intensity | IV | I=20mA | 800 |
| 1200 | mcd |
50%Power Angle | 2θ1/2 | I=20mA | ---- | 120 | ---- | deg |
dzsc/19/3339/19333995.jpg
"
