LED电源，防水电源，埋地灯电源，12V100W
| 价 格： | 面议 | |
| 加工定制： | 是 | |
| 型号/规格： | 12100 | |
| 防护等级： | IP67 | |
| 类型： | 全部 | |
| 光源类型： | LED | |
| 光源功率： | 15-200（W） | |
| 电压： | 12,24,36（V） |
产品型号/Product Type | FWT-12100/FWT-24100/FWT-36100 | |||
■ 技术条件/Specifications | ||||
输入电压Input voltage | AC90-250V | |||
输出电压Output voltage | 12VDC | 24VDC | 36VDC | |
输出电流The sum output current | 8.3A | 4.2A | 2.8A | |
输出功率Max output power | 100W | |||
材质Housing Material | 铝Alu | |||
输入线材 Input Wire | VDE 0.75mm2 Brown & blue & yellow-green(200mm) | |||
输出线材 Output Wire | VDE 0.75mm2 Red (红色) , black (黑色) -(200mm) | |||
■ 尺寸及重量/Size and Weight | ||||
尺寸Size:240*67*50mm | 重量Weight:1200g | |||
外箱尺寸Carton size:39.4*25.4*24.5cm | 包装Packing:19pcs/箱box | |||
■ 保护功能/Protection | ||||
短路Short Circuit Protection | 自动恢复Auto recovery | |||
超载Overload Protection | 20% | |||
超压保护Over-voltage Protection | ≤255V | |||
热保护Thermal Protection | ≤80℃ | |||
■ 环境/Environment | ||||
工作温度Operating Temperature | -25-45°C | |||
储存温度Storage Temperature | -40-80°C | |||
■CE 认证/CE Approved | ||||
EN61347-1: 2008 | EN61347-2-13: 2006 | |||
EN55015:2006 A1:2007 | EN61547:1995 A1:2000 | |||
EN61000-3-2:2006 | EN61000-3-3:2008 | |||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 肖宗武
- 电话：
- 传真：
- 手机：13902968158
- QQ ：
LED防水恒流电源，24-36V600mA
信息内容：产品型号/Product TypeFWT-12030■ 技术条件/Specifications输入电压Input voltageAC100-130/AC170-250V 输出电压（空载）Output voltageDC24-36V输出电流The sum output current700±30mA 输出功率Max output power30W 材质Housing Material铝Alu导线说明Wire Description：0.75平方VDE电源线200mm(单路输出) 0.75square VDE power cord 200mm(single output)■ 尺寸及重量/Size and Weight尺寸Size:200*35*25mm 重量Weight:350g 外箱尺寸Carton size:34.5*25.4*24.5cm 包装Packing:38pcs/箱box■ 保护功能/Protection短路Short Circuit Protection自动恢复Auto recovery超载Overload Protection20%超压保护Over-voltage Protection≤255V热保护Thermal Protection≤80℃■ 环境/Environment工作温度Operating Temperature-25-45°C储存温度Storage Temperature -40-80°C ■CE 认证/CE ApprovedEN61347-1: 2008 EN61347-2-13: 2006EN55015:2006 A1:2007 EN61547:1995 A1:2000EN61000-3-2:2006 EN61000-3-3:2008

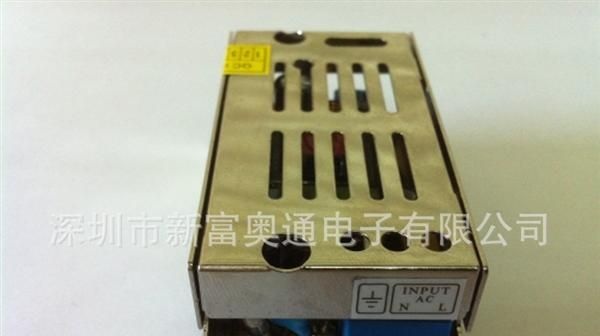

LED电源，灯条灯带电源，开关电源 15W
信息内容：开关电源参数 Switching Power Supply 15W 产品描述Product Description: 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. 技术参数Specification型 号 FWT-15-12FWT-15-24直流输出电压DC output voltage 12V24V输出电压容差Output voltage range ±1%±1%额定输出电流Rated output current 1.25A0.625A输出电流范围Output current range 0～1.25A0～0.625A纹波及噪音Wave and noise 50mVp-p100mVp-p进线稳定度Inlet stability ±0.5%±0.5%负载稳定度Load stability ±0.5%±0.5%直流输...
