LED电源，开关电源，灯条灯带电源 ，12V35W
| 价 格： | 面议 | |
| 功率： | 35（W） | |
| 输入电压： | 220（V） | |
| 尺寸： | 85*58*37（mm） | |
| 外壳材质： | 铝合金 | |
| 防护等级： | IP20 | |
| 型号/规格： | 12035-J | |
| LED颗数： | N（W） | |
| 品牌/商标： | FWT | |
| 可否调光： | 不可以 | |
| 发光角度： | N（度） | |
| 灯光颜色： | 暖白,正白,红色,黄色,蓝色,绿色,橙色 | |
| 寿命： | N（H） | |
| 属性： | 属性值 |
| 开关电源参数 Switching Power Supply 35W | |||
| 产品描述Product Description: | |||
| 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. | |||
| 技术参数Specification | 型 号 | ||
| FWT-35-12 | FWT-35-24 | ||
| 直流输出电压DC output voltage | 12V | 24V | |
| 输出电压容差Output voltage range | ±1% | ±1% | |
| 额定输出电流Rated output current | 2.9A | 1.46A | |
| 输出电流范围Output current range | 0～3A | 0～1.46 A | |
| 纹波及噪音Wave and noise | 100mVp-p | 100mVp-p | |
| 进线稳定度Inlet stability | ±0.5% | ±0.5% | |
| 负载稳定度Load stability | ±0.5% | ±0.5% | |
| 直流输出功率DC output power | 36W | 36W | |
| 效率Efficiency | 78% | 78% | |
| 直流电压可调范围Adjustable range for DC voltage | ±10% | ±10% | |
| 输入电压范围AC input voltage range | 100～250VAC 47-63Hz； | ||
| 输入电流Input current | 0.8A/115V 0.45A/230V | ||
| 冲击电流AC Inrush current | 18A/115V 36A/230V | ||
| 漏电流Leakage current | ＜0.5mA/240VAC | ||
| 过载保护Overload protection | 105%～150% 类型：切断输出Type：pulsing hiccup shutdown 复位：自动恢复Reset:Auto restore | ||
| 启动、上升、保持时间Setup,rise,hold up time | 200ms,100ms,30ms | ||
| 耐压性Dielectric strength test | 输入输出间：1.5KvAC输入与外壳；1.5KvAC输出与外壳；0.5KvAC；Between input and output: 1.5KvAC input and shell;1.5KvAC output and shell; 0.5KvAC | ||
| 工作温度、温度Working temperature and humidity | -10℃～ 60℃,20%～90%RH | ||
| 存储温度、温度Srore temperature and humidity | -20℃～ 85℃,10%～95%RH | ||
| 外形尺寸Overall dimension | 84×58×34mm | ||
| 重量Weight | 0.2Kg | ||
| 安全标准Safety standards | CE | ||
| EMC标准EMC standards | CE | ||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 肖宗武
- 电话：
- 传真：
- 手机：13902968158
- QQ ：

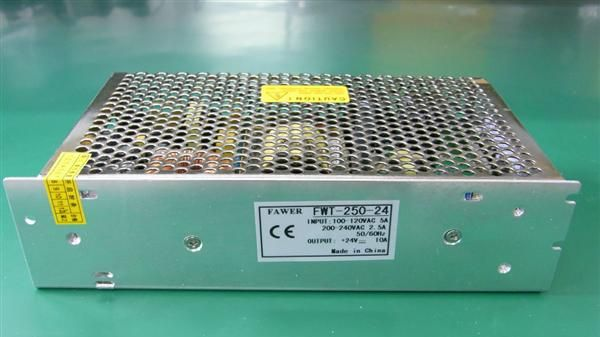

LED电源，开关电源，AC-DC电源，24V20.8A250W
信息内容：开关电源参数 Switching Power Supply 250W 产品描述Product Description: 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. 技术参数Specification型 号 FWT-250-12FWT-250-24直流输出电压DC output voltage 12V24V输出电压容差Output voltage range ±1%±1%额定输出电流Rated output current 20A10A输出电流范围Output current range 0～20A0～10A纹波及噪音Wave and noise 150mVp-p150mVp-p进线稳定度Inlet stability ±0.5%±0.5%负载稳定度Load stability ±0.5%±0.5%直流输出功率...

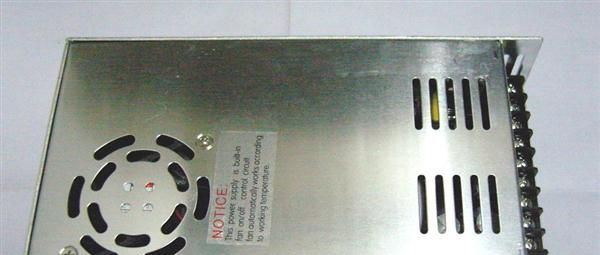

LED电源，开关电源，24V14.5A350W
信息内容：开关电源参数 Switching Power Supply 350W 产品描述Product Description: 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. 技术参数Specification型 号 FWT-350-12FWT-350-24直流输出电压DC output voltage 12V24V输出电压容差Output voltage range ±1%±1%额定输出电流Rated output current 29A14.6A输出电流范围Output current range 0～29A0～14.6A纹波及噪音Wave and noise 150mVp-p150mVp-p进线稳定度Inlet stability ±0.5%±0.5%负载稳定度Load stability ±0.5%±0.5%直流输出...
