产品名称:10/100M四端口变压器模块
产品简介:
※对称TX和RX通道自动MDI/ MDIX功能
※批准使用的Broadcom BCM5226和一级LXT9784
※符合IEEE802.3u和ANSI X3.263标准包括350架UHOCL与8 mA偏置
※对于符合RoHS-5部分加后缀NLE
※对于RoHS-6部分加后缀NL
※RoHS符合性的细节,请参阅第55页
Product Name:10/100M Quad Port Transformer Modules
Product Introduction:
※Symmetrical TX and RX Channels For Auto MDI/MDIX capability
※Approved for use with the Broadcom BCM5226 and Level One LXT9784
※Compliant with IEEE 802.3u and ANSI X3.263 standards including 350 uH
OCL with 8 Ma bias
※For RoHS-5 part add suffix NLE
※For RoHS-6 part add suffix NL
※For detail of RoHS Compliance,please refer to Page 55
更多型号参数如下:
产品名称:10/100M双端口变压器模块 产品简介: ※符合所有IEEE标准,包括350uH OCL与8 mA偏置 ※对称TX和RX通道自动MDI/ MDIX功能 ※符合RoHS-6仅部分 ※RoHS符合性的细节,请参阅第55页 Product Name:10/100M Dual Port Transformer Modules Product Introduction: ※Meets all IEEE standards including 350uH OCL with 8 mA bias ※Symmetrical TX and RX channels for auto MDI/MDIX capability ※RoHS-6 part only ※For detail of RoHS Compliance,please refer to Page 55 更多产品参数如下: dzsc/19/3254/19325476.jpg

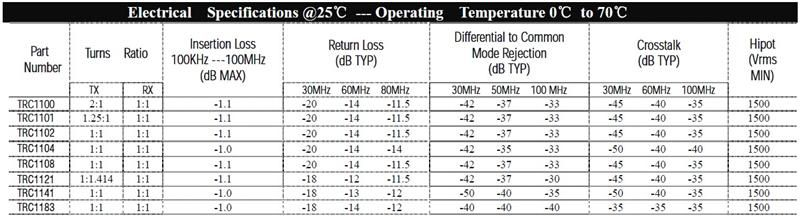

产品名称:10/100M单端口变压器模块 产品简介: ※随着各种匝数比 ※符合IEEE802.3和ANSI X3.263标准,其中包括350μHOCL与8 mA偏置 ※对于符合RoHS-5部分加后缀NLE ※对于RoHS-6部分加后缀NL ※RoHS符合性的细节,请参阅第55页 Product Name:10/100M Single Port Transformer Modules Product Introduction: ※With various turns ratios ※Meets IEEE 802.3 and ANSI X3.263 standards, including 350 μH OCL with 8 mA bias ※For RoHS-5 part add suffix NLE ※For RoHS-6 part add suffix NL ※For detail of RoHS Compliance,please refer to Page 55 更多型号参数如下: dzsc/19/3254/19325484.jpg
