供应EPCOS压敏电阻B72214S0321K101 S14K320
| 价 格： | 面议 | |
| 型号/规格： | B72214S0321K101 S14K320 | |
| 品牌/商标： | EPCOS | |
| 环保类别： | 无铅环保型 |
B72214S0321K101 S14K320

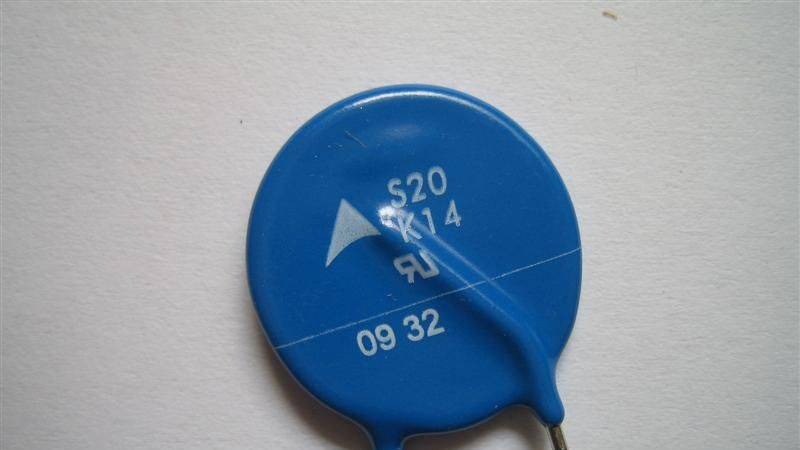

Leaded varistors B72220S0140K101 S20K14
StandarD series
Construction
Round varistor element, leaded
Coating: epoxy resin, flame-retardant to UL 94 V-0
Features
Wide operating voltage range 11 … 1100 V
High surge current ratings up to 8 kA
No derating up to 85 °C ambient temperature
PSpice models
Approvals
UL
RMS
CSA (all types ≥ K115)
VDE
CQC S05/07 (K11 … K460), S10/S14 (K11 … K680), S20 (K11 … K1000)
IEC
Delivery mode
Bulk (standard), taped versions on reel or in Ammo pack upon request.
For further details refer chapter "Taping, packaging and lead configuration" for leaded
varistors.
Options
S10* types with lead spacing 5.0 mm and S20* types with lead spacing 7.5 mm are also
available on request.
General technical data
Climatic category to IEC 60068-1 40/85/56
Operating temperature to IEC 61051 40 ... + 85 °C
Storage temperature 40 ... +125 °C
Electric strength to IEC 61051 ≥ 2.5 kV
Insulation resistance to IEC 61051 ≥ 100 MΩ
Response time < 25 ns
RMS
