供应EPCOS压敏电阻B72220S2381K101V87 S20K385E2
| 价 格： | 面议 | |
| 型号/规格： | B72220S2381K101V87 S20K385E2 | |
| 品牌/商标： | EPCOS | |
| 环保类别： | 无铅环保型 |

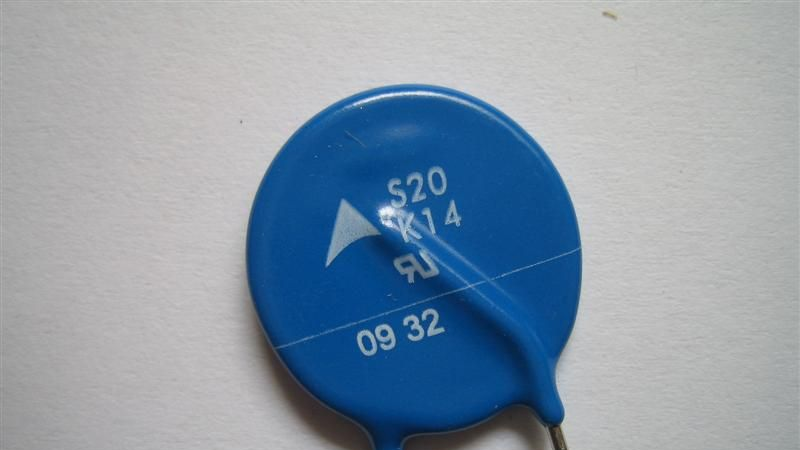

B72220S2381K101V87 S20K385E2
Leaded varistors B722*
AdvanceD series
Construction
Round varistor element, leaded
Coating: epoxy resin, flame-retardant to UL 94 V-0
Features
High-energy AdvanceD series E2
High surge current ratings up to 10 kA
High energy ratings up to 440 J
Wide operating voltage range 130 … 680 V
PSpice models
Approvals
RMS
UL
CSA
VDE
CQC S05/07 (K11 … K460), S10/S14 (K11 … K680), S20 (K11 … K1000)
IEC
Delivery mode
Bulk (standard), taped versions on reel or in Ammo pack upon request.
For further details refer chapter "Taping, packaging and lead configuration" for leaded
varistors.
General technical data
Climatic category to IEC 60068-1 40/85/56
Operating temperature to IEC 61051 40 ... + 85 °C
Storage temperature 40 ... +125 °C
Electric strength to IEC 61051 ≥ 2.5 kV
Insulation resistance to IEC 61051 ≥ 100 MΩ
Response time < 25 ns
RMS
