Features
• SOT-23 Plastic-Encapsulate Transistors
• Capable of 0.3Watts(Tamb=25OC) of Power Dissipation.
• Collector-current 0.5A
• Collector-base Voltage 40V
• Operating and storage junction temperature range: -55OC to +150OC
• Marking : J3
Electrical Characteristics @ 25OC Unless Otherwise Specified
Symbol Parameter Min Max Units
OFF CHARACTERISTICS
V(BR)CBO Collector-Base Breakdown Voltage
(IC=100uAdc, IE=0)
40 --- Vdc
V(BR)CEO Collector-Emitter Breakdown Voltage
(IC=0.1mAdc, IB=0)
25 --- Vdc
V(BR)EBO Emitter-Base Breakdown Voltage
(IE=100uAdc, IC=0)
5.0 --- Vdc
ICBO Collector Cutoff Current
(VCB=40Vdc, IE=0)
--- 0.1 uAdc
ICEO Collector Cutoff Current
(VCE=20Vdc, IB=0)
--- 0.1 uAdc
IEBO Emitter Cutoff Current
(VEB=5.0Vdc, IC=0)
--- 0.1 uAdc
ON CHARACTERISTICS
hFE(1) DC Current Gain
(IC=50mAdc, VCE=1.0Vdc)
120 350 ---
hFE(2) DCCurrent Gain
(IC=500mAdc, VCE=1.0Vdc)
40 --- ---
VCE(sat) Collector-Emitter Saturation Voltage
(IC=500mAdc, IB=50mAdc)
--- 0.6 Vdc
VBE(sat) Base-Emitter Saturation Voltage
(IC=500mAdc, IB=50mAdc)
--- 1.2 Vdc
VEB Base- Emitter Voltage
(IE=100mAdc)
--- 1.4 Vdc
SMALL-SIGNAL CHARACTERISTICS
fT Transistor Frequency
(IC=20mAdc, VCE=6.0Vdc, f=30MHz)
150 --- MHz
CLASSIFICATION OF HFE (1)
Rank L H
Range 120-200 200-350
NPN Silicon
Plastic-Encapsulate
Transistor
SOT-23
Suggested Solder
Pad Layout
DIMENSIONS
INCHES MM
DIM MIN MAX MIN MAX NOTE
A .110 .120 2.80 3.04
B .083 .098 2.10 2.64
C .047 .055 1.20 1.40
D .035 .041 .89 1.03
E .070 .081 1.78 2.05
F .018 .024 .45 .60
G .0005 .0039 .013 .100
H .035 .044 .89 1.12
J .003 .007 .085 .180
K .015 .020 .37 .51
A
C B
D
E
G H J
.079
2.000
inches
mm
.031
.800
.035
.900
.037
.950
.037
.950
K
F
Revision: A 2011/01/01
omponents
20736 Marilla Street Chatsworth
MCC TM
Micro Commercial Components
B E
C
www.mccsemi.com
1 of 2
MMS9013-L
MMS9013-H
· Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
· Epoxy meets UL 94 V-0 flammability rating

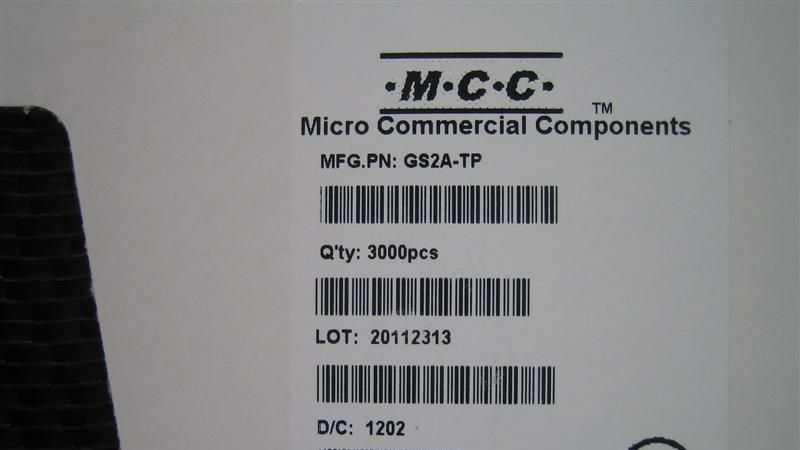

MCC 二极管自家优势库存,低价售出 GS2A THRU GS2M 2.0 Amp Silicon Rectifier 50 to 1000 Volts Features l Extremely Low Thermal Resistance l For Surface Mount Application l Higher Temp Soldering: 250oC for 10 Seconds At Terminals l Available on Tape and Reel Maximum Ratings l Operating Temperature: -55oC to +150oC l Storage Temperature: -55oC to +150oC GS2A GS2A 50V 35V 50V GS2B GS2B 100V 70V 100V GS2D GS2D 200V 140V 200V GS2G GS2G 400V 280V 400V GS2J GS2J 600V 420V 600V GS2K GS2K 800V 560V 800V GS2M GS2M 1000V 700V 1000V Electrical Characteristics @ 25oC Unless Otherwise Specified Average Forward Current IF(AV) 2.0A TJ=75oC Peak Forward Surge Current IFSM 50A 8.3ms half sine Maximum Instantaneous Forward Voltage VF 1.10V IFM=2.0A TA=25oC Maximum DC Reverse Current At Rated DC Blocking Voltage IR 10.0uA TJ=25oC Typical Junction Capacitance Cj 20pF Measured at 1.0MHz, VR=4.0V Pulse test: Pulse width 300 usec, duty cycle 2%.

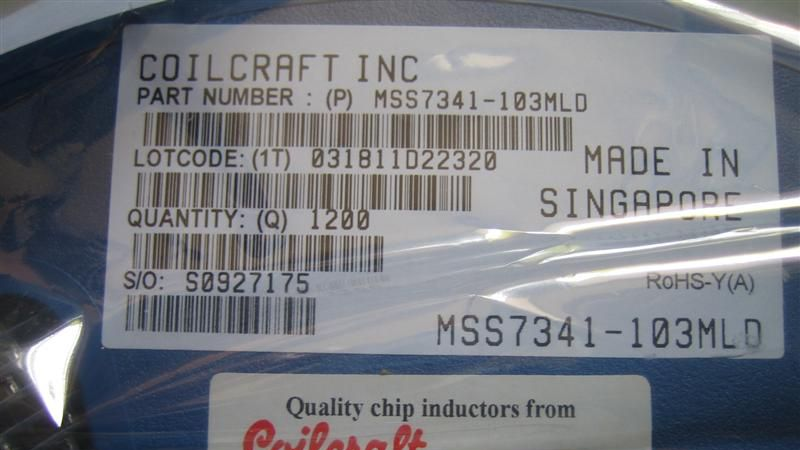

线艺电感自己库存,原装进口,低价售出! SMT Power Inductors – MSS7341 • 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors • Low DCR and excellent current handlingDesigner’s Kit C385 contains 3 each of all values. Core material Ferrite Core and winding loss See Terminations RoHS compliant gold over nickel over phos bronze. Other terminations available at additional cost. Weight: 0.61 – 0.67 g Ambient temperature –40°C to +85°C with Irms current, +85°C to +125°C with derated current Storage temperature Component: –40°C to +125°C. Packaging: –40°C to +80°C Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity) Failures in Time (FIT) / Mean Time Between Failures (MTBF) 38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332 Packaging 1200/13″...
