价 格: | 面议 | |
品牌/商标: | monhe power | |
类型: | AC/DC电源 | |
型号/规格: | mhp-120200 | |
调制方式: | 脉冲宽度调制(PWM)式 | |
晶体管连接方式: | 单端式 | |
输入电压: | 100-240(V) | |
输出功率: | 24(W) | |
输出电压: | 12(V) | |
工作效率: | 99(%) | |
输出纹波噪音: | 99 | |
输出电压精度: | 99(%) | |
电压调整率: | 99(%) | |
负载调整率: | 99(%) | |
产品认证: | UL |
Indoor switching power supply
AC Input Detail:
1) AC Input Voltage Range: 100-240Vac;
2) AC Input Current: 50mA-3500mA
3) Input Frequency Range: 47-63Hz
4) Inrush Current: 30A
5) Hold Up Time
5ms Min.at100Vac input and output Max .Load.
DC Output Detail:
1) DC Voltage Range: 3-48Vdc
2) DC Current Range: 50-5000mA 150Watt max
3) Total Regulation:
4) Ripple & Noise: 100 m Vp-p
5) Working Efficiency: 80%
6) Protections:
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Open Circuit Protection
Environmental Requirement
1) Operating Temperature: 0°C -- 40°C
2) Storage Temperature: -10°C -- 55°C
3) Operating Humidity: 5%(0°C)~90%(40°C) 72h Full Load
4) Storage Humidity: 3%-98%
Reliability:
1) MTBF( Mean Time Between Failures): 50000 Hours
( Based on MIL-STD-217F)
2) Period of Guarantee and Warranty: 1 year
Hi-pot Test:
Primary-Secondary: 3750Vac/ 5mA/ 60s
Primary-Case : 500Vac/ 5mA/ 60s
Burn-In Test:
Full Load with 4 hours at 40°C
Regulatory Agency Certification:
1) RFI/EMI:
EMC Standard: EN55022/ EN55024/ EN55013/ EN55020
2) Safety Standard: EN60065, EN60950
Mechanical Features:
1) AC Plug: American, European Standard
2) DC Jack(Plug): 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm,etc
3) DC Cable Length: 1.5m
4) Case Dimension: Unit in “ mm”
L70*W39*H27
5) Weight: 0.085KG
6) Color: Black
USE:
Digital camera,CD-ROM, HUB, ADSL,AP,communication terminals,tester machine,any protable device or machine;Led table light,low voltage electronic products etc.
CERTIFICATE
GS/TUV/BS/SAA/C-TICK/PSE/UL/CUL/CE/ROHS/EK
Quick Details
Place of Origin:China (Mainland) | Brand Name:letaron | Model Number:letaron-240150 |
Output Power:36W Max | Output Type:Single | Input Voltage:90-264V |
Output Voltage:24VDC±0.5V | Output Frequency:50/60Hz | Output Current:1.25A |
Packaging & Delivery
Packaging Detail: | polybag per pc, several in a carton, |
Delivery Detail | 30 days after receiving the down payment |
Specifications
1:ELT(UL1310)/CE/GS/EMC/ROHS/SAA/BS/CB 2.waterproof
1,Stable Voltage
2,Waterproof Switching power supply
3,100% full load burn-in test
4,certifications:ELT(UL1310)/CE/GS/EMC/ROH
Switching Power Supply
Features:
1,Protection:Short circuit/Overload/Over Voltage/Over Tenperature
2,Waterproof Level:IP 68 Design for indoor or outdoor installations.
3,100% full load burn-in test
4,Suitable for LED lighting and sign applications;Dc motor;Halogen lamp
5,24 Months warranty
6,certifications:ELT(UL1310)/CE/GS/EMC/ROHS/SAA/BS/CB
Enviromental:
1,Operating temperature:-20 to 45°C
2,Storage temperature: -40 to 85°C
3,Humidity (Non-Condesing):5% to 95%
4,Cooling:Convection
5,Vibration Frequency:50 to 60 Hz
6,MTB:>2.800.000 Hours at full load and 25°C.ambient condition(MIL-STD-105

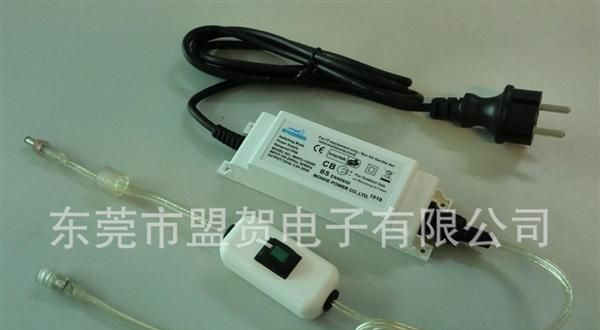

"4.防水开关电源: 90-264V/50-60HZ 1-200W 12VDC 2A ,3A,4A.5A.6A 一.我司现推出一系列防水开关电源,打破传统铝外壳做法,用塑胶壳,安全,防水性能好,比铝壳的安全与防水性能要好.二.安规齐全.有ETL/UL,ETL/GS,CE,CB,SAA,UL,TUV认证.三.防水等 级IP68,防水性能好.可直接放在水中使用.四.输入与输出可配防水线与防水插头.输出可配防水母座,可做成一拖一,一拖二,一拖三,一拖五. "
