开关电源 ，铝合金外壳50w12V
| 价 格： | 面议 | |
| 输入电压： | 100-240（V） | |
| 输出电流： | 4.1 | |
| 输出电压： | 5/12/24/（V） | |
| 输出功率： | 50（W） | |
| 输出纹波噪音： | 1% | |
| 类型： | LED电源 | |
| 晶体管连接方式： | 单端式 | |
| 工作效率： | 80（%） | |
| 型号/规格： | FWT-12050 | |
| 品牌/商标： | FWT | |
| 调制方式： | 脉冲宽度调制(PWM)式 | |
| 产品认证： | CE |
| 开关电源参数 Switching Power Supply 50W | |||
| 产品描述Product Description: | |||
| 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. | |||
| 技术参数Specification | 型 号 | ||
| FWT-50-5 | FWT-50-12 | FWT-50-24 | |
| 直流输出电压DC output voltage | 5V | 12V | 24V |
| 输出电压容差Output voltage range | ±2% | ±1% | ±1% |
| 额定输出电流Rated output current | 10A | 4.1A | 2.1A |
| 输出电流范围Output current range | 0～10A | 0～4.1A | 0～2.1A |
| 纹波及噪音Wave and noise | 120mVp-p | 150mVp-p | 150mVp-p |
| 进线稳定度Inlet stability | ±0.5% | ±0.5% | ±0.5% |
| 负载稳定度Load stability | ±1% | ±0.5% | ±0.5% |
| 直流输出功率DC output power | 50W | 50W | 50W |
| 效率Efficiency | 73% | 76% | 79% |
| 直流电压可调范围Adjustable range for DC voltage | 10,-5% | ±10% | ±10% |
| 输入电压范围AC input voltage range | 100～250VAC 由开关选择 selected by switch 47-63Hz； | ||
| 输入电流Input current | 2A/115V 1A/230V | ||
| 冲击电流AC Inrush current | 30/115V 60A/230V | ||
| 漏电流Leakage current | ＜3.5mA/240VAC | ||
| 过载保护Overload protection | 105%～150% 类型：切断输出Type：pulsing hiccup shutdown 复位：自动恢复Reset:Auto restore | ||
| 温度系数Temperature coefficient | ±0.03%/℃（0～50℃） | ||
| 启动、上升、保持时间Setup,rise,hold up time | 800ms,50ms,115VAC 300ms,50ms/230VAC | ||
| 抗震性Earthquake resistance | 10～500Hz,2G 10min,/1周期cycle，时长duration of 60minutes，各轴each axis | ||
| 耐压性Dielectric strength test | 输入输出间：1.5KvAC输入与外壳；1.5KvAC输出与外壳；0.5KvAC；Between input and output: 1.5KvAC input and shell;1.5KvAC output and shell; 0.5KvAC | ||
| 隔离电阻Isolation resistance | 输入输出间，输入与外壳，输出与外壳Between input and output, input and case, output and shell：500VDC/100MΩ | ||
| 工作温度、温度Working temperature and humidity | -10℃～ 60℃,20%～90%RH | ||
| 存储温度、温度Srore temperature and humidity | -20℃～ 85℃,10%～95%RH | ||
| 外形尺寸Overall dimension | 110×78×35mm | ||
| 重量Weight | 0.24Kgs | ||
| 安全标准Safety standards | UL1012TUV by 60950（IEC950，UL1950）认证 Certification | ||
| EMC标准EMC standards | CISPR22（by 55022）IEC801-2，3，4IEC555-2 认证 Certification | ||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 肖宗武
- 电话：
- 传真：
- 手机：13902968158
- QQ ：
LED电源，防水恒流电
信息内容：防水恒流电源参数规格Waterproof power supply specs 120W性能Performance：1.保护Protections：短路保护/超载保护/过压保护/溫度保护Short circuit/Overload/Over Voltage/Over Temperature2.防水等级Waterproof Protection standard：IP673.百分百滿载老化测试 适用于LED灯及广告照明Hundred percent full load burn-apply to LED lamps and advertising lighting4.保质期为1年 One and years warranty5.通过认证Certificate:：CE / EMC/LVD / ROHS/IP67产品型号/Product TypeFWT-12120/FWT-24120/FWT-24120■ 技术条件/Specifications输入电压Input voltageAC100-130V/170-250V 输出电压Output voltage12VDC24VDC36VDC输出电流The sum output current10A 5A3.3A输出功率Max output power120W 材质Housing Material铝Alu输入线材 Input WireVDE 0.75mm2 Brown & blue & yellow-green(200mm)输出线材 Output WireVDE 0.75mm2 Red (红色) , black (黑色) -(200mm)■ 尺寸及重量/Size and Weight尺寸Size:240*67*50mm 重量Weight:1200g 外箱尺寸Carton size:39.4*25.4*24.5cm 包装Packing:19pcs/箱box■ 保护功能/Protection短路Short Circuit Protection自动...

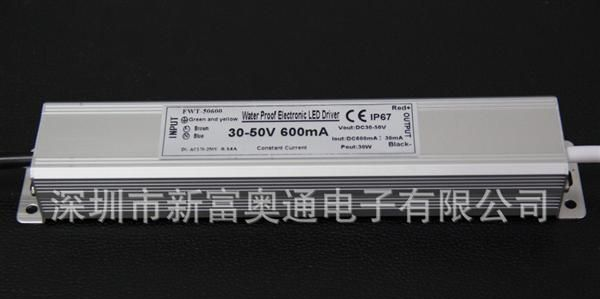

LED防水恒流电源
信息内容：产品型号/Product Type FWT-12030 ■ 技术条件/Specifications 输入电压Input voltage AC100-130/AC170-250V 输出电压（空载）Output voltage DC30-50V 输出电流The sum output current 600±50mA 输出功率Max output power 30W 材质Housing Material 铝Alu 导线说明Wire Description：0.75平方VDE电源线200mm(单路输出) 0.75square VDE power cord 200mm(single output) ■ 尺寸及重量/Size and Weight 尺寸Size:200*35*25mm 重量Weight:350g 外箱尺寸Carton size:34*25.4*24.5cm 包装Packing:50pcs/箱box ■ 保护功能/Protection 短路Short Circuit Protection 自动恢复Auto recovery 超载Overload Protection 保护超压保护Over-voltage Protection ≤255V 热保护Thermal Protection ≤80℃ ■ 环境/Environment 工作温度Operating Temperature -20-50°C 储存温度Storage Temperature -40-80°C ■CE 认证/CE Approved EN61347-1: 2008 EN61347-2-13: 2006 EN55015:2006 A1:2007 EN61547:1995 A1:2000 EN61000-3-2:2006 EN61000-3-3:2008
