OMRON欧姆龙D2MV-1-1C1微动开关D2MV超低负载型额定值0.10N
| 价 格： | 面议 | |
| 加工定制： | 否 | |
| 品牌/商标： | OMRON/欧姆龙 | |
| 型号/规格： | D2MV-1-1C1 | |
| 种类： | 微动式 | |
| 额定电压： | 详见说明书（V） | |
| 额定电流： | 详见说明书（A） | |
| 接触电阻： | 详见说明书（Ω） | |
| 绝缘电阻： | 详见说明书（MΩ） | |
| 触点切换电压： | 详见说明书 | |
| 线圈电源： | 详见说明书 | |
| 应用范围： | 开关 |
D2MV小型基本开关
超低负载动作型的小型基本开关
欧姆龙微动开关D2MV型特点如下
● 作为微小负载用，具有良好的接触可靠性，采用了双横杆接点。
● 采用的内部结构，即使动作负载超低，也能确保较高触点接触力。可用于检测轻型物体等用途。
dzsc/19/2658/19265865.jpg
dzsc/19/2658/19265865.jpg
dzsc/19/2658/19265865.jpg
dzsc/19/2658/19265865.jpg
dzsc/19/2658/19265865.jpg
型号 型号
动作力 1A 0.1A
0.10N D2MV-1-1C1 D2MV-01-1C1
0.25N D2MV-1-1C2 D2MV-01-1C2
0.49N D2MV-1-1C3 D2MV-01-1C3
0.49N D2MV-1L11-1C3 D2MV-01L11-1C3
0.29N D2MV-1L-1C3 D2MV-01L-1C3
0.15N D2MV-1L111-1C3 D2MV-01L111-1C3
0.29N D2MV-1L13-1C3 D2MV-01L13-1C3
0.49N D2MV-1L22-1C3 D2MV-01L22-1C3
0.29N D2MV-1L2-1C3 D2MV-01L2-1C3
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 徐清强
- 电话：021-54432312
- 传真：021-54432312
- 手机：
- QQ ：
Hirose/广濑 HRS连接器 W.FL2-R-SMT-1(60) 同轴连接器

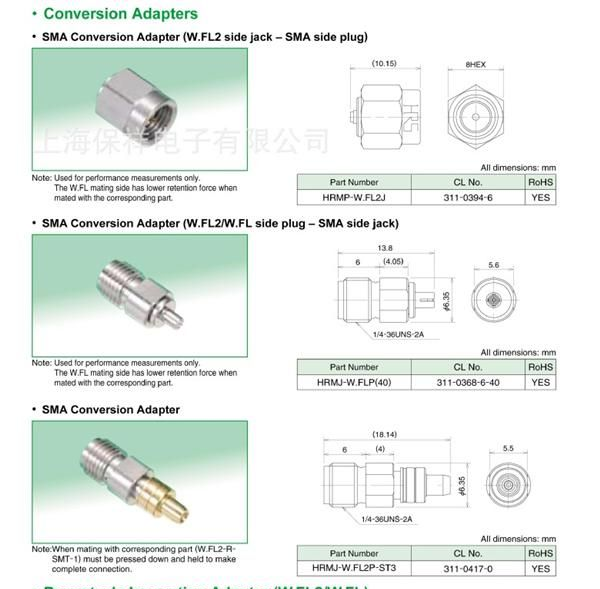

信息内容：Hirose/广濑 HRS连接器 同轴连接器 连接器W.FL2系列嵌合高度1.18mm 低·轻SMT超小型同轴连接器Features●Mated height of receptacle and right angle plug is 1.3mm max. world lowest profile.●The PCB mounting area of receptacle is 3.4sq.mm, the same as Hirose's smallest W.FL series. PCB layout is also the same. (Remarks) W.FL2 is not compatible with W.FL series.●The world smallest class lightweight coaxial connectors.●High frequency performance up to 6GHz.●Embossed tape packaging receptacle permits automatic mounting. CharacteristicSpecificationsContact Mating Area PlatingGold dzsc/19/2777/19277722.jpgdzsc/19/2777/19277722.jpg同系列型号有：W.FL2-R-SMT-1(60)W.FL2-R-SMT-1(80)HRS 连接器：圆形连接器(Circular Connectors)、矩形连接器(Rectangular Connectors)、同轴连接器(Coaxial Connectors)、存储卡(Memory Card)、标准网口连接器(Modular Connectors)、板对板连接器(Board to Board Connectors)、板对线连接器(Board to Wire Connectors)、FPC/FFC连接器(FPC/FFC Connectors)、光纤连接器(Optical Connecto...
