泰科RT314730/RT424F24继电器
| 价 格： | 1.00 | |
| 型号/规格： | RT424F24 | |
| 品牌/商标： | TYCO（泰科） |
详细信息：
产品类型特性:
产品系列 = RT2 双稳态
端子类型 = PCB-THT
尺寸:
Mechanical - Length Class = 25mm to 30mm Class
长度 (mm [in]) = 29.00 [1.142]
Mechanical - Width Class = 12mm to 16mm Class
宽度 (mm [in]) = 12.70 [0.500]
Mechanical - Height Class = 15mm to 16mm Class
高度 (mm [in]) = 15.70 [0.618]
Insulation - Clearance Between Contact and Coil (mm [in]) = 10 [0.394]
Insulation - Creepage Between Contact and Coil (mm [in]) = 10 [0.394]
主体特性:
安装方式 = PCB
重量 (g [oz]) = 13.00 [0.459]
触点特性:
Contact Material = AgNi90/10
Contact - Number of Poles = 2
配置特性:
触点组合形式 = 2 Form C (CO)
线圈励磁系统 = Monostable, DC
Coil - Special Features = UL Coil Insulation Class F
RT424048 RT424110 RT424524 RT424615 RT424730 RTE24005 RTE24012 RTE24024 RTE24048
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张先生/李先生
- 电话：0755-25861556
- 传真：0755-25859810
- 手机：18927402257/18038052658
- QQ ：
泰科RTE24615/RTE24730继电器
信息内容：详细信息： 产品类型特性: 产品系列 = RT2 双稳态 端子类型 = PCB-THT 电气特点: Contact - Current Class = 5A to 10A Class, Less Than 16A 触点额定电流 (A) = 8 Contact - Limiting Continuous Current (A) = 8 Contact - Limiting Making Current (A) = 15 Contact - Limiting Breaking Current (A) = 8 Insulation - Initial Dielectric Between Coil/Contact Class = >4000V Class Insulation - Initial Dielectric Between Open Contacts (V rms) = 1000 介电强度 － 线圈接触体 (V rms) = 5000 Contact - Rated Voltage (VAC) = 250 Contact - Switching Voltage Max. (VAC) = 400 Contact - Limiting Short-Time Current (A) = 8 线圈电压 (VDC) = 12 线圈电阻 (Ω) = 360 额定线圈功率 (mW) = 400 Coil - Rated Power Class = 300mW to 400mW Class Insulation - Initial Dielectric Between Adjacent Contacts (V rms) = 2500 Insulation - Creepage Class = >8mm Class ...

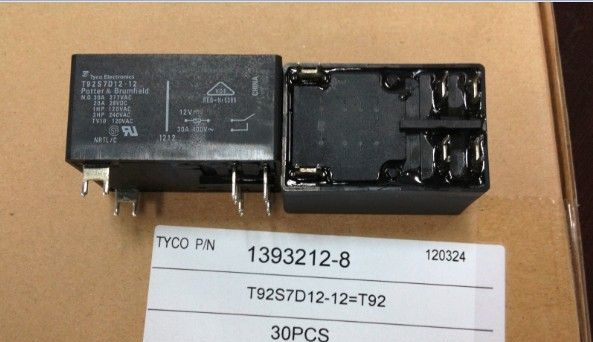

供应T92P7A22-24继电器
