Hirose/广濑 HRS连接器 MSS-A-JJ(40) 同轴连接器
| 价 格： | 面议 | |
| 接口类型： | ------ | |
| 接触件材质： | ----- | |
| 针数： | ----- | |
| 种类： | 射频同轴(RF) | |
| 加工定制： | 否 | |
| 形状： | 圆形 | |
| 线长： | -----（mm） | |
| 应用范围： | 通讯 | |
| 型号： | MSS-A-JJ(40) | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | ----- | |
| 品牌： | Hirose/广濑 | |
| 支持卡数： | 单卡 | |
| 芯数： | ----- | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
Hirose/广濑 HRS连接器 同轴连接器 连接器MSS系列
推接型小型同轴连接器
| Features | |
| ● | Slide-snap lock system to achieve secure and reliable surface contacts of the inner and outer conductors, and superior vibration-resistance properties. |
| ● | Two cable connecting methods: crimping connecting system and screw-clamp system. |
| ● | Conforms to Japan Defense Agency NDS XC 6120, DSP C 6206 standard. |
| ● | MSS1 type for RG-55/U cable is not interchangeable with MSS type. |
| ● | Can be mounted by soldering directly onto the PCB. |
| Characteristic | Specifications |
| PCB Mount Type | Through-hole |
| Generic Name | MSS |
| Contact Mating Area Plating | Gold |
| Impedance (ohm) | 50 |
| Frequency Range (GHz) | 0 to 1 |
| Operating Temperature Range (degrees C) | -55, -30 to 60, 85 |
| Applicable Cable | 1.5D-2V, 2.5D-2V, 2.5D-2V, 2.5D-QEV, 2.5D-2N, RG-196/U, RG-196A/U |
| Termination Style | Soldering |
| Connector Type | Adapter/Board mounting/Cable/Panel |
| Contact Gender | Female, Male |
| Mating/Unmating Cycles | 3000 |
| Remarks | Extraction tool, Conversion adaptor (BWA series) |
| VSWR (Max) | 1.2 |
dzsc/19/2449/19244974.jpg
dzsc/19/2449/19244974.jpg
dzsc/19/2449/19244974.jpg
同系列型号有：
MSS-A-JJ(40)
MSS-J-1.5(40)
MSS-J-1.5(41)
MSS-J-196/U(40)
MSS-J-2.5(40)
MSS-LP-1.5(40)
MSS-LP-1.5-A(40)
MSS-LP-196/U(40)
MSS-LP-2.5(40)
MSS-LP-2.5(41)
MSS-LR(40)
MSS-LR-PC(40)
MSS-LR-PC(41)
MSS-P-1.5-A(40)
MSS-P-196/U(40)
MSS-P-2.5(40)
MSS-P-2.5(41)
MSS-PJ-2.5(40)
MSS-PR-PC(40)
MSS-R(40)
MSS-R(41)
MSS-R-PC(40)
MSS-R-PC(41)
MSS-R-PC-3(40)
MSS-TR-PC(40)
HRS 连接器：
圆形连接器(Circular Connectors)、
矩形连接器(Rectangular Connectors)、
同轴连接器(Coaxial Connectors)、
存储卡(Memory Card)、
标准网口连接器(Modular Connectors)、
板对板连接器(Board to Board Connectors)、
板对线连接器(Board to Wire Connectors)、
FPC/FFC连接器(FPC/FFC Connectors)、
光纤连接器(Optical Connectors and Devices)、
射频连接器(Microwave Components)
SMK产品:手机连接器;视听数码产品连接器,电脑及设备连接器,家用电器连接器.
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 徐清强
- 电话：021-54432312
- 传真：021-54432312
- 手机：
- QQ ：
Hirose/广濑 HRS 连接器 HRM-501S 同轴连接器
信息内容：Hirose/广濑 HRS连接器 同轴连接器 连接器HRM系列SMA型螺钉联接型、标准同轴连接器、SMA连接器Features●SMA (Sub-miniature type A) connector per MIL-C-39012.●Compact and lightweight with a stainless steel shell ensuring high durability.●A variety of configurations, including S type, with enhanced corrosion resistance, airtight type, and for 0.085 semi rigid cable. CharacteristicSpecificationsPCB Mount TypeThrough-holeGeneric NameSMAContact Mating Area PlatingGoldImpedance (ohm)50Frequency Range (GHz)0 to 26.5Operating Temperature Range (degrees C)-65, -55, -40, -30 to 40, 60, 65, 85, 90, 125Applicable Cable0.047 inch semi rigid, 0.085 inch semi rigid, 0.141 inch semi rigid, 0.141 inch semi rigid, RG-402, 0.8D-QEW.CW, 1.5D-2V, 1.5D-HQEV, 1.5D-QEV, 1.5D-2W, 1.5D-2W, 1.5D-HQEW, 1.5D-QEW, 1.5D-HQ.SUPER, 1.5D-HQ.SUPER, 1.5D-Q.SUPER, 1.5D-HQEV, 1.5D-HQEV, 1.5D-QEV, 1.5D-HQEW, 1.5D-HQEW, 1.5D-QEW, 1.5D-Q.SUPER, 1.5D-QEV, 1.5D-XVS, 1.5D-QEW, 1.5D-QEW, 1.5D-XW, 1.5D-XVS, 1.5D-XW, 2.5C-2W, 2.5D...
Hirose/广濑 HRS 连接器 HRM(V)-300-115S 同轴连接器

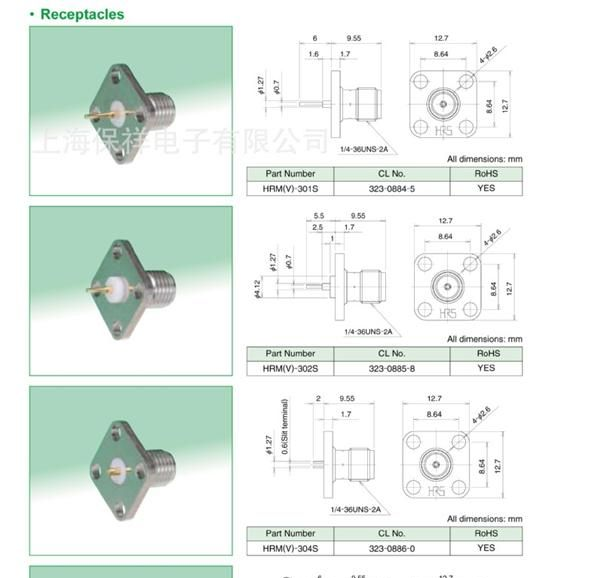

信息内容：Hirose/广濑 HRS连接器 同轴连接器 连接器HRM(V)系列低成本HRM连接器（Version2）Features●Low-cost type of Hirose HRM (SMA) series.●Perfectly compatible with Hirose HRM series and other SMA standard connectors.●V.S.W.R: 1.2 max. from DC to 10GHz and V.S.W.R: 1.3 max. from 10 to 18GHz.●The outer shell made of stainless steel is robust.●RoHS Compliant. CharacteristicSpecificationsPCB Mount TypeThrough-holeGeneric NameSMAContact Mating Area PlatingGoldImpedance (ohm)50Frequency Range (GHz)0 to 18Operating Temperature Range (degrees C)-55 to 85Connector TypeBoard mountingContact GenderFemaleMating/Unmating Cycles500VSWR (Max)1.3 dzsc/19/2452/19245242.jpgdzsc/19/2452/19245242.jpgdzsc/19/2452/19245242.jpg同系列型号有：HRM(V)-300-115SHRM(V)-301SHRM(V)-302SHRM(V)-304SHRM(V)-304S-2HRM(V)-306SHRS 连接器：圆形连接器(Circular Connectors)、矩形连接器(Rectangular Connectors)、同轴连接器(Coaxial Connectors)、存储卡(Memory Card)、标准网口连接器(Modular Connectors)、板对板连接器(Board to Board Con...
