led电源,LED开关电源,LED水电源,20-350W
| 价 格： | 面议 | |
| 输出电流： | 8.3 | |
| 输入电压： | 110/220（V） | |
| 输出电压： | 12,24,36,48（V） | |
| 电压调整率： | N（%） | |
| 负载调整率： | N（%） | |
| 输出功率： | 100（W） | |
| 输出纹波噪音： | N | |
| 类型： | LED电源 | |
| 晶体管连接方式： | 单端式 | |
| 工作效率： | 80（%） | |
| 型号： | 12100 | |
| 输出电压精度： | N（%） | |
| 品牌： | FWT | |
| 调制方式： | 脉冲宽度调制(PWM)式 | |
| 产品认证： | CE | |
| 属性： | 属性值 |
| 开关电源参数 Switching Power Supply 200W | |||
| 产品描述Product Description: | |||
| 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. | |||
| 技术参数Specification | 型 号 | ||
| FWT-200-12 | FWT-200-24 | ||
| 直流输出电压DC output voltage | 12V | 24V | |
| 输出电压容差Output voltage range | ±1% | ±1% | |
| 额定输出电流Rated output current | 16.5A | 8.3A | |
| 输出电流范围Output current range | 0～16.5A | 0～8.3A | |
| 纹波及噪音Wave and noise | 150mVp-p | 150mVp-p | |
| 进线稳定度Inlet stability | ±0.3% | ±0.2% | |
| 负载稳定度Load stability | ±0.3% | ±0.2% | |
| 直流输出功率DC output power | 198W | 199.2W | |
| 效率Efficiency | 82% | 85% | |
| 直流电压可调范围Adjustable range for DC voltage | ±10% | ±10% | |
| 输入电压范围AC input voltage range | 100-130VAC or 170-250VAC 47-63Hz； | ||
| 输入电流Input current | 4.5A/115V 2.5A/230V | ||
| 冲击电流AC Inrush current | 25A/115A 50A/230A | ||
| 漏电流Leakage current | ＜3.5mA/240VAC | ||
| 过载保护Overload protection | 105%～135% 类型：切断输出Type：pulsing hiccup shutdown 复位：自动恢复Reset:Auto restore | ||
| 启动、上升、保持时间Setup,rise,hold up time | 200ms,100ms,20ms | ||
| 耐压性Dielectric strength test | 输入输出间：1.5KvAC输入与外壳；1.5KvAC输出与外壳；0.5KvAC；Between input and output: 1.5KvAC input and shell;1.5KvAC output and shell; 0.5KvAC | ||
| 工作温度、温度Working temperature and humidity | -10℃～ 50℃,20%～90%RH | ||
| 存储温度、温度Srore temperature and humidity | -20℃～ 85℃,10%～95%RH | ||
| 外形尺寸Overall dimension | 200×98×38mm | ||
| 重量Weight | 0.64Kg | ||
| 安全标准Safety standards | EN61347 | ||
| EMC标准EMC standards | EN55015,EN61000,EN61547 | ||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 肖宗武
- 电话：
- 传真：
- 手机：13902968158
- QQ ：
LED电源，开关电源，防水电源 25W
信息内容：开关电源参数 Switching Power Supply 25W产品描述Product Description: 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,全球适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective.技术参数Specification型 号 FWT-25-12FWT-25-24直流输出电压DC output voltage 12V24V输出电压容差Output voltage range ±1%±1%额定输出电流Rated output current 2.08A1.04A输出电流范围Output current range 0～2A0～1A纹波及噪音Wave and noise 100mVp-p100mVp-p进线稳定度Inlet stability ±0.5%±0.5%负载稳定度Load stability ±0.5%±0.5%直流输出功率DC o...

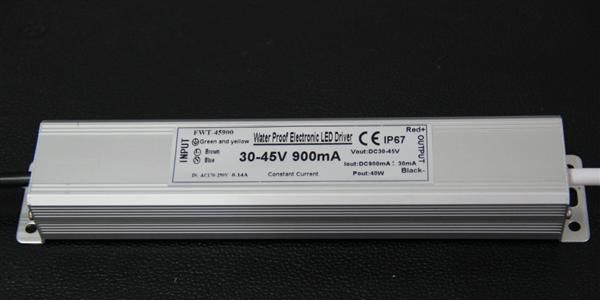

LED防水电源，恒流电源，30-45V900mA
信息内容：防水电源30-45V900mA 参数规格/Parameter Specification 性能Performance：1.保护Protections：短路保护/超载保护/过压保护/溫度保护Short circuit/Overload/Over Voltage/Over Temperature2.防水等级Waterproof Protection standard：IP673.百分百滿载老化测试 适用于LED灯及广告照明Hundred percent full load burn-apply to LED lamps and advertising lighting4.保质期为1年 One and years warranty5.通过认证Certificate:：CE / EMC/LVD / ROHS/IP67产品型号/Product TypeFWT-12030■ 技术条件/Specifications输入电压Input voltageAC170-250V 输出电压（空载）Output voltageDC30-45V输出电流The sum output current900±30mA 输出功率Max output power45W 材质Housing Material铝Alu导线说明Wire Description：0.75平方VDE电源线200mm(单路输出) 0.75square VDE power cord 200mm(single output)■ 尺寸及重量/Size and Weight尺寸Size:200*35*25mm 重量Weight:350g 外箱尺寸Carton size:39.4*25.4*24.5cm 包装Packing:38pcs/箱box■ 保护功能/Protection短路Short Circuit Protection自动恢复Auto recovery超载Overload Protection20%超压保护Over-volta...
